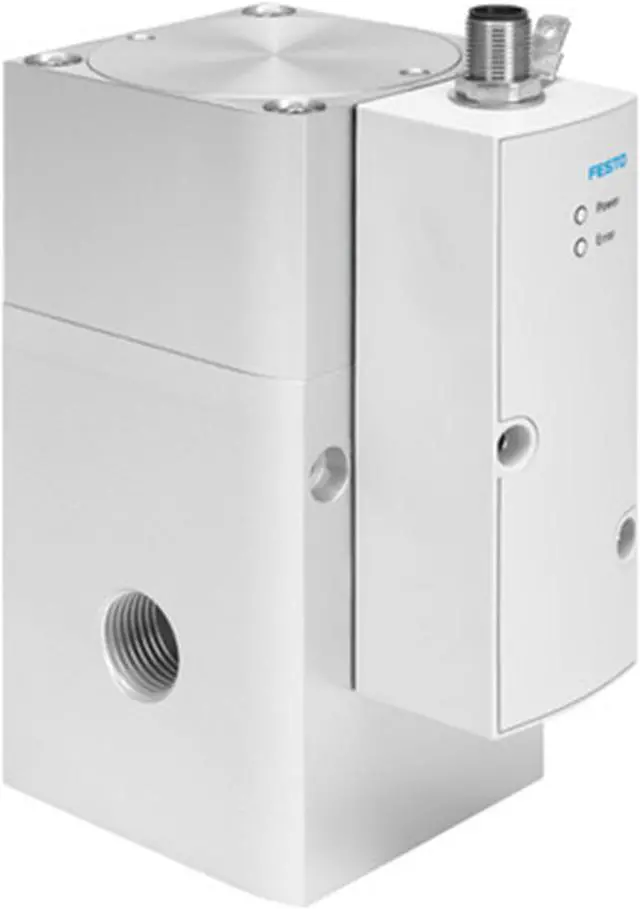

FESTO VPPM-12L-L-1-G12-0L2H-LK-S1 Proportional Pressure Control Valve 8024264 New

KC characters KC EMC
Nominal width pressurization 12 mm
Exhaust nominal width 12 mm
Type code VPPM
Actuation type Electrical
Sealing principle Soft
Mounting position Any
Design Pilot-controlled diaphragm regulator
Short-circuit protection For all electrical connections
Reverse polarity protection for all electrical connections
Reset method Mechanical spring
Type of control Pilot-controlled
Valve function 3-way proportional pressure control valve
Display type LED
Pressure regulation range 0.02 bar ... 2 bar
Inlet pressure 1 0 bar ... 4 bar
Max. pressure hysteresis 0.01 bar
Standard nominal flow rate 1900 l/min
DC operating voltage range 18 V ... 30 V
Max. current consumption 500 mA
Duty cycle 100%
Max. electrical power consumption 12 W
Temperature of medium 10 °C ... 50 °C
Degree of protection IP65
Ambient temperature 0 °C ... 60 °C
Product weight 2050 g
Linearity error FS 1 %
Temperature coefficient 0.04 %/K
Repetition accuracy FS 0.5 %
