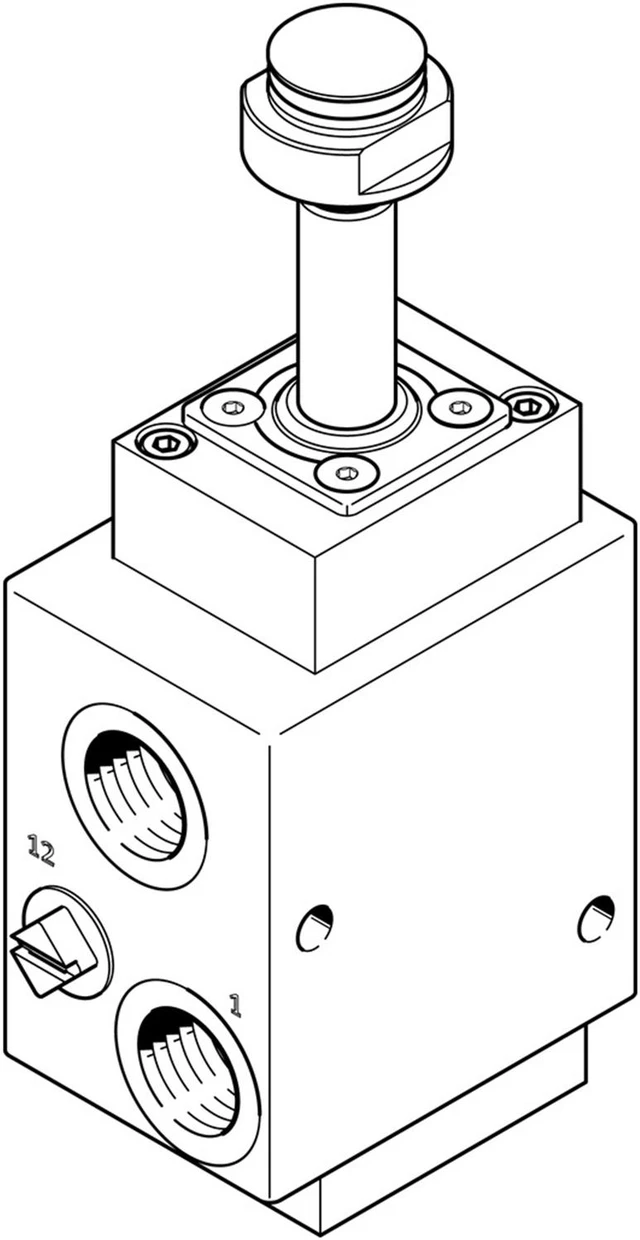

FESTO VOFC-LT-M32C-MC-G14-F19 4514740 Pneumatic Valve New
- FESTO VOFC-LT-M32C-MC-G14-F19 4514740 Pneumatic Valve New
+
+
Overview
Specs
Reviews
Valve function
3/2, closed, monostable
Actuation type
Electrical
Width
51 mm
Standard nominal flow rate
766 l/min
Pneumatic working port
G1/4
Operating pressure
38 bar
Design
Pilot-controlled piston poppet valve
Reset method
Mechanical spring
Degree of protection
IP65
Nominal width
6 mm
Type code
VOFC
Sealing principle
Hard
Mounting position
Any
Manual override
None
Type of control
Pilot-controlled
Flow direction
Non-reversible
Symbol
00992275
Safety function
Safe venting
Information on operating pressure
0 - 8 bar with external pilot air
Flow rate for piston valve pressurization
0.72 m3/h
Flow rate for piston valve exhausting
1.4 m3/h
Standard nominal flow rate 2-3
1467 l/min
Switching time off
18 ms
On switching time
24 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Temperature of medium
-25 °C ... 60 °C
Ambient temperature
-25 °C ... 60 °C
Product weight
550 g
3/2, closed, monostable
Actuation type
Electrical
Width
51 mm
Standard nominal flow rate
766 l/min
Pneumatic working port
G1/4
Operating pressure
38 bar
Design
Pilot-controlled piston poppet valve
Reset method
Mechanical spring
Degree of protection
IP65
Nominal width
6 mm
Type code
VOFC
Sealing principle
Hard
Mounting position
Any
Manual override
None
Type of control
Pilot-controlled
Flow direction
Non-reversible
Symbol
00992275
Safety function
Safe venting
Information on operating pressure
0 - 8 bar with external pilot air
Flow rate for piston valve pressurization
0.72 m3/h
Flow rate for piston valve exhausting
1.4 m3/h
Standard nominal flow rate 2-3
1467 l/min
Switching time off
18 ms
On switching time
24 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Temperature of medium
-25 °C ... 60 °C
Ambient temperature
-25 °C ... 60 °C
Product weight
550 g
