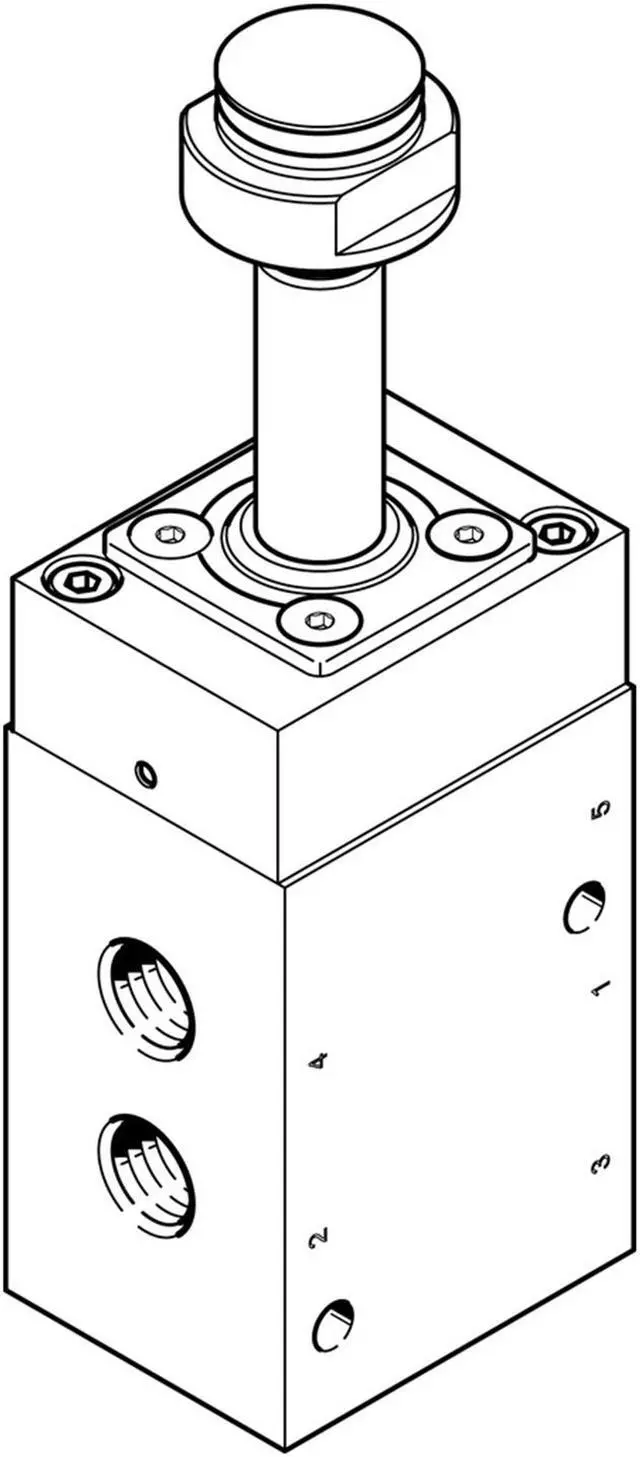

FESTO VOFC-L-M52-M-G14-F19 4514925 Pneumatic Valve New

Valve function
5/2, monostable
Actuation type
Electrical
Width
40 mm
Standard nominal flow rate
1030 l/min
Pneumatic working port
G1/4
Operating pressure
2.5 bar ... 8 bar
Design
Piston gate valve
Reset method
Mechanical spring
Degree of protection
IP65
Nominal width
6 mm
Type code
VOFC
Sealing principle
Soft
Mounting position
Any
Manual override
None
Type of control
Pilot-controlled
Pilot air supply port
Internal
Flow direction
Non-reversible
Symbol
00995231
low rate for piston valve pressurization
1.08 m3/h
Flow rate for piston valve exhausting
1.08 m3/h
Standard nominal flow rate 2-3
978 l/min
Switching time off
22 ms
On switching time
26 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Temperature of medium
-25 °C ... 60 °C
Ambient temperature
-25 °C ... 60 °C
Product weight
520 g
