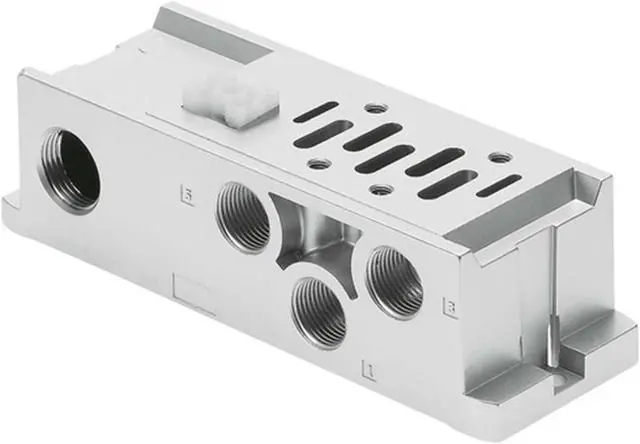

FESTO VABS-S2-1S-N38-K1 546100 Sub-base New

Width
42 mm
Type code
VABS
Based on norm
ISO 5599-2
Mounting position
Any
Pilot air supply port
External
Operating pressure
-0.9 bar ... 10 bar
Operating voltage range AC
110 V
DC operating voltage range
24 V
Surge resistance
4 kV
Current rating at 40°C
2 A
Contamination level
3
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
CE marking (see declaration of conformity)
As per EU low voltage directive
Corrosion resistance class (CRC)
0 - No corrosion stress
Ambient temperature
-5 °C ... 50 °C
Product weight
364 g
