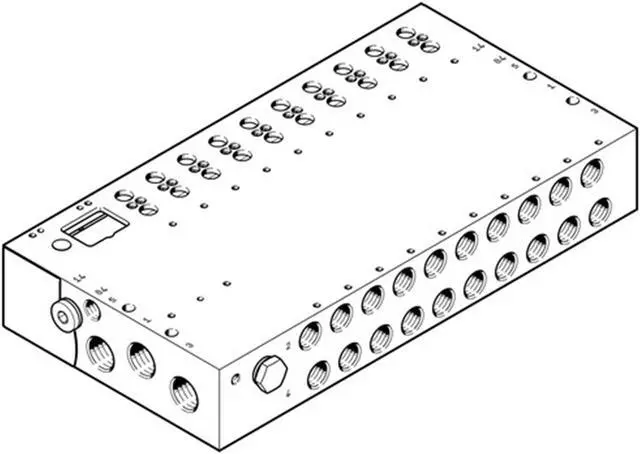

FESTO VABM-L1-18G-G38-8-G Manifold Rail 8004903 Width 19mm
- FESTO VABM-L1-18G-G38-8-G Manifold Rail 8004903 Width 19mm
+
+
Overview
Specs
Reviews
Width dimension
19 mm
Type code
VABM
Mounting position
Any
Max. no. of valve positions
8
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-20 °C ... 60 °C
Certification
c CSA us (OL)
c UL us - Recognized (OL)
Product weight
2261 g
Pilot air port 12/14
G1/8
Pilot exhaust air port 82/84
G1/8
Pneumatic connection 1
G3/8
Pneumatic connection 3
G3/8
Pneumatic connection 5
G3/8
Note on materials
RoHS-compliant
Manifold rail material
Wrought aluminum alloy
19 mm
Type code
VABM
Mounting position
Any
Max. no. of valve positions
8
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-20 °C ... 60 °C
Certification
c CSA us (OL)
c UL us - Recognized (OL)
Product weight
2261 g
Pilot air port 12/14
G1/8
Pilot exhaust air port 82/84
G1/8
Pneumatic connection 1
G3/8
Pneumatic connection 3
G3/8
Pneumatic connection 5
G3/8
Note on materials
RoHS-compliant
Manifold rail material
Wrought aluminum alloy
