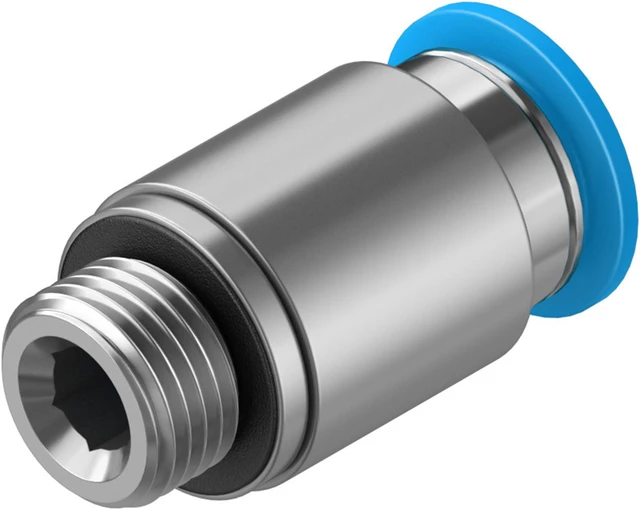

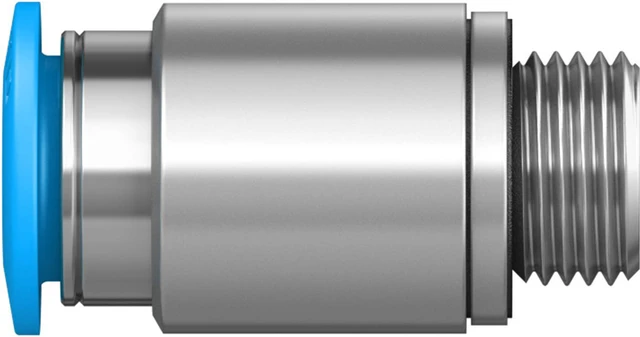

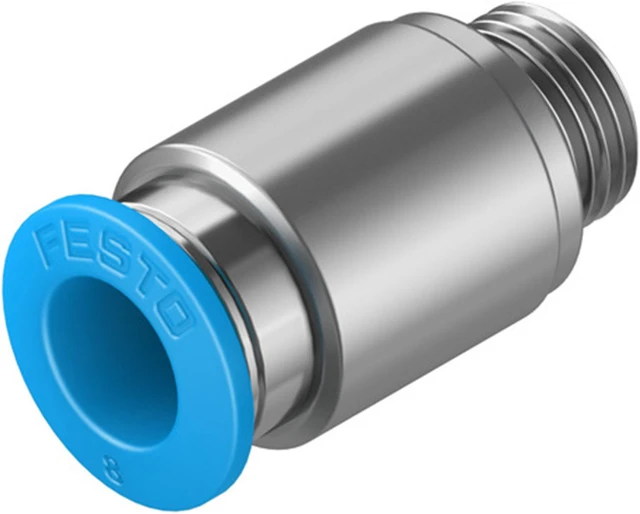

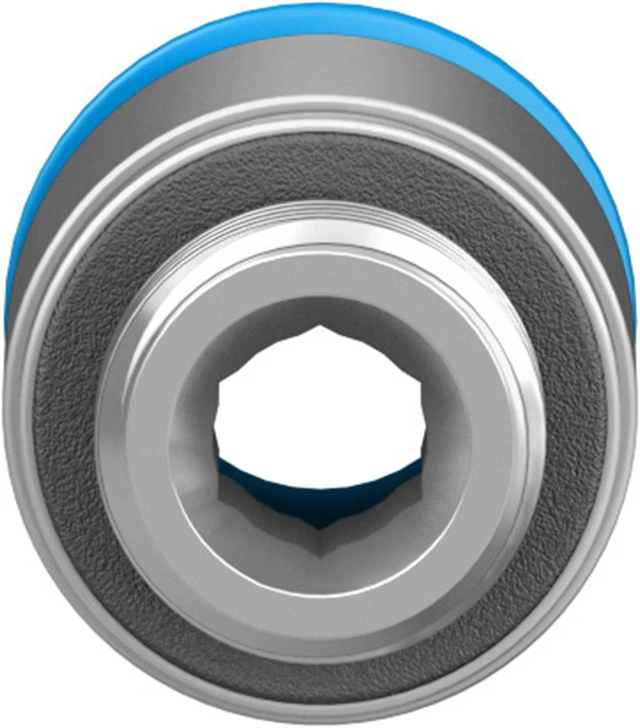

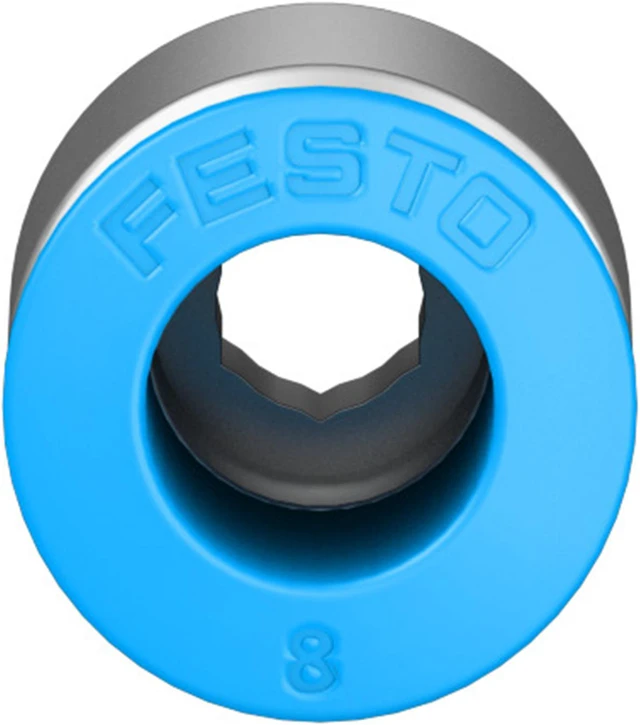

FESTO QS-G1/8-8-I Push-in Fitting 186109 New
- FESTO QS-G1/8-8-I Push-in Fitting 186109 New
+
+
Overview
Specs
Reviews
Size
Standard
Maritime classification
See certificate
Nominal width
5.3 mm
Type code
QS
Type of seal on screwed trunnion
Sealing ring
Mounting position
Any
Pack size
10
Design
Push-pull principle
Operating pressure for entire temperature range
-0.95 bar ... 6 bar
Temperature-dependent operating pressure
-0.95 bar ... 14 bar
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
-10 °C ... 80 °C
Nominal tightening torque
7 Nm
Tolerance for nominal tightening torque
± 20%
Product weight
12 g
Pneumatic connection 1
External thread G1/8
Pneumatic connection 2
for pneumatic tubing outside diameter 8 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Standard
Maritime classification
See certificate
Nominal width
5.3 mm
Type code
QS
Type of seal on screwed trunnion
Sealing ring
Mounting position
Any
Pack size
10
Design
Push-pull principle
Operating pressure for entire temperature range
-0.95 bar ... 6 bar
Temperature-dependent operating pressure
-0.95 bar ... 14 bar
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
-10 °C ... 80 °C
Nominal tightening torque
7 Nm
Tolerance for nominal tightening torque
± 20%
Product weight
12 g
Pneumatic connection 1
External thread G1/8
Pneumatic connection 2
for pneumatic tubing outside diameter 8 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
