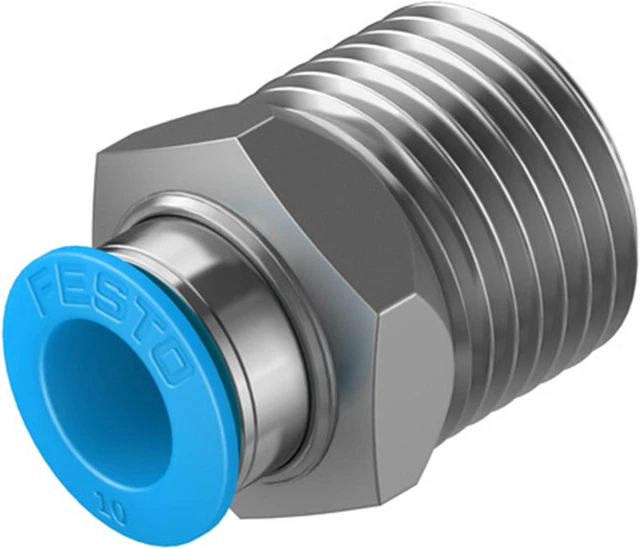

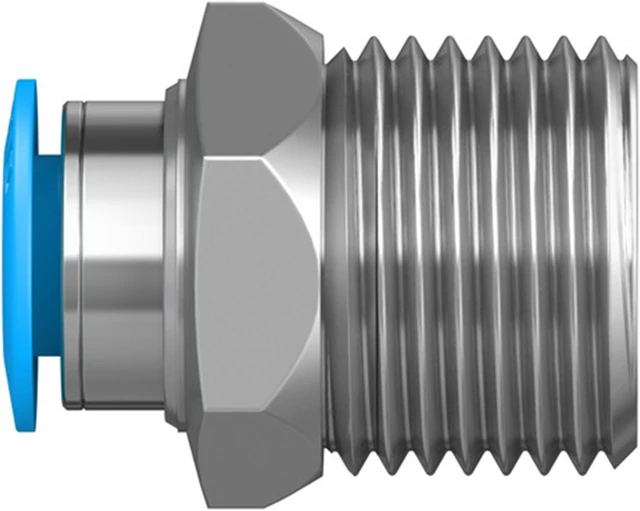

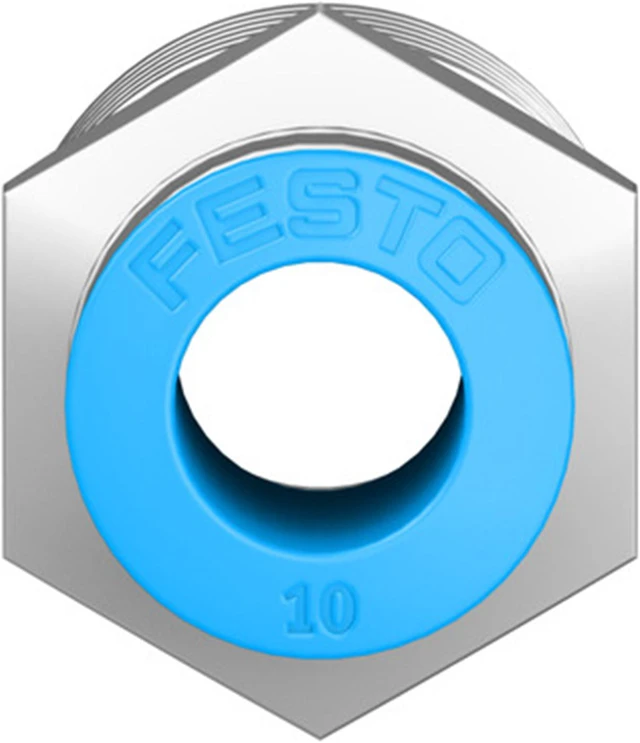

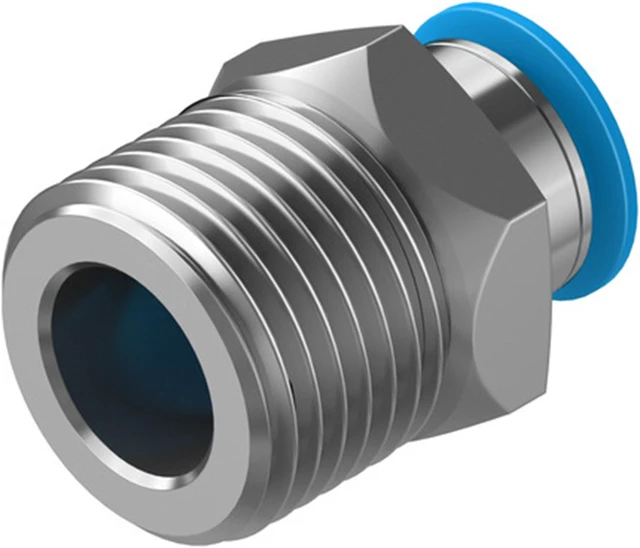

FESTO QS-1/2-10 Push-in Fitting 190646 New
- FESTO QS-1/2-10 Push-in Fitting 190646 New
+
+
Overview
Specs
Reviews
Size
Standard
Maritime classification
See certificate
Nominal width
9 mm
Type code
QS
Type of seal on screwed trunnion
Coating
Mounting position
Any
Pack size
1
Design
Push-pull principle
Operating pressure for entire temperature range
-0.95 bar ... 6 bar
Temperature-dependent operating pressure
-0.95 bar ... 14 bar
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
-10 °C ... 80 °C
Product weight
46 g
Pneumatic connection 1
External thread R1/2
Pneumatic connection 2
for pneumatic tubing outside diameter 10 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
Standard
Maritime classification
See certificate
Nominal width
9 mm
Type code
QS
Type of seal on screwed trunnion
Coating
Mounting position
Any
Pack size
1
Design
Push-pull principle
Operating pressure for entire temperature range
-0.95 bar ... 6 bar
Temperature-dependent operating pressure
-0.95 bar ... 14 bar
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
-10 °C ... 80 °C
Product weight
46 g
Pneumatic connection 1
External thread R1/2
Pneumatic connection 2
for pneumatic tubing outside diameter 10 mm
Releasing ring color
Blue
Note on materials
RoHS-compliant
Releasing ring material
POM
Material of tubing seal
NBR
Material of tube retaining claw
High-alloy stainless steel
