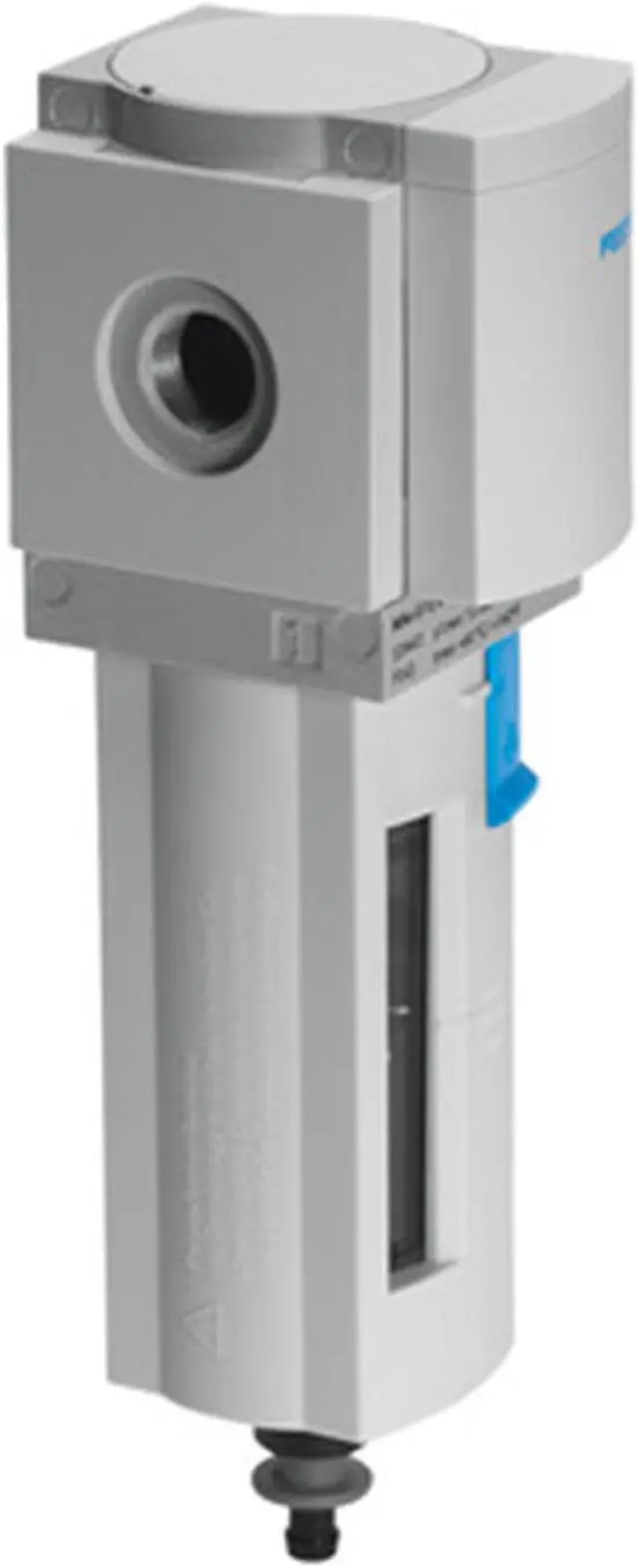

FESTO MS4N-LF-1/4-CU M Compressed Air Filter 535686 New
- FESTO MS4N-LF-1/4-CU M Compressed Air Filter 535686 New
+
+
Overview
Specs
Reviews
Size
4
For use in the food industry
See supplementary material information
Type code
MS4N-LF
Series
MS
Mounting position
Vertical +/- 5°
Grade of filtration
5 µm
Condensate drain
Manually rotating
Design
Sinter filter with centrifugal separator
Max. condensate volume
25 ml
Bowl guard
Integrated as metal bowl guard
Symbol
00991519
Operating pressure
0 bar ... 14 bar
Standard nominal flow rate
1300 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-10 °C ... 60 °C
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [6:8:4]
Temperature of medium
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Product weight
349 g
Pneumatic connection 1
NPT1/4-18
Pneumatic connection 2
NPT1/4-18
Note on materials
Free of copper and PTFE
RoHS-compliant
Material of sub-base
Die-cast aluminum
Seals material
NBR
Compressed air filter material
PE
Housing material
Die-cast aluminum
