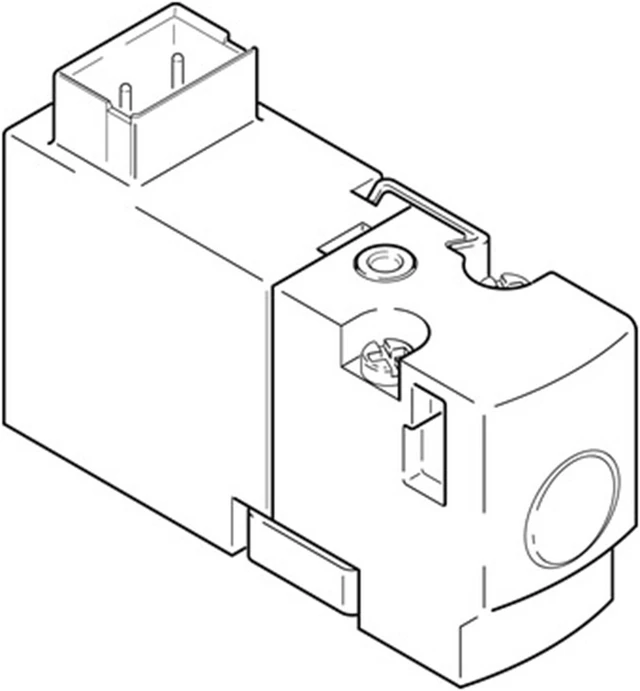

FESTO MHA1-M4H-3/2O-0,6-TC 197021 Air Solenoid Valve New

Valve function
3/2, open, monostable
Lap
Underlap
Certificate issuing authority
UL MH19482
Actuation type
Electrical
Width
10 mm
Standard nominal flow rate
10 l/min
Pneumatic working port
Sub-base
Operating voltage
5V DC
Operating pressure
0 bar ... 6 bar
Design
Poppet valve with return spring
Reset method
Mechanical spring
Degree of protection
IP40
Certification
c UL us - Recognized (OL)
Nominal width
0.7 mm
Width dimension
10 mm
Type code
MHA1
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Non-detenting
Type of control
Direct
Flow direction
Non-reversible
Symbol
00991322
Valve position ID
Label
Note on forced dynamization
Switching frequency at least once a week
Max. switching frequency
20 Hz
Switching time off
4 ms
On switching time
4 ms
Duty cycle
100%
Electrical power consumption
1 W
Coil characteristics
5 V DC: 1.0 W
Permissible voltage fluctuations
+/- 10 %
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-20 °C ... 60 °C
Temperature of medium
-5 °C ... 40 °C
Ambient temperature
-5 °C ... 40 °C
Product weight
10 g
