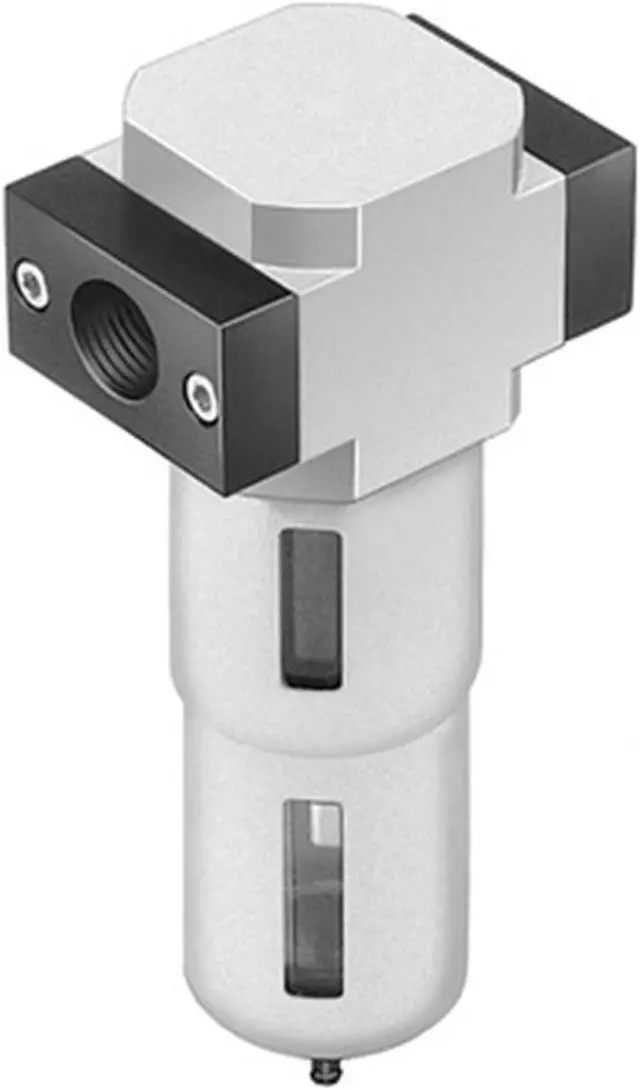

FESTO LF-3/8-D-5M-MINI-NPT Compressed Air Filter 173686 New
- FESTO LF-3/8-D-5M-MINI-NPT Compressed Air Filter 173686 New
+
+
Overview
Specs
Reviews
Size Mini
Type code LF
Series D
Mounting position Vertical
Grade of filtration 5 µm
Condensate drain Manual, non-detenting
Max. condensate volume 22 ml
Bowl guard Metal bowl guard
Symbol 00991519
Operating pressure 0 bar ... 16 bar
Standard nominal flow rate 1100 l/min
Temperature of medium -10 °C ... 60 °C
Ambient temperature -10 °C ... 60 °C
Type of mounting With mounting bracket
Note on materials RoHS-compliant
Compressed air filter material PE
Housing material Die-cast zinc
Material of bowl PC
Type code LF
Series D
Mounting position Vertical
Grade of filtration 5 µm
Condensate drain Manual, non-detenting
Max. condensate volume 22 ml
Bowl guard Metal bowl guard
Symbol 00991519
Operating pressure 0 bar ... 16 bar
Standard nominal flow rate 1100 l/min
Temperature of medium -10 °C ... 60 °C
Ambient temperature -10 °C ... 60 °C
Type of mounting With mounting bracket
Note on materials RoHS-compliant
Compressed air filter material PE
Housing material Die-cast zinc
Material of bowl PC
