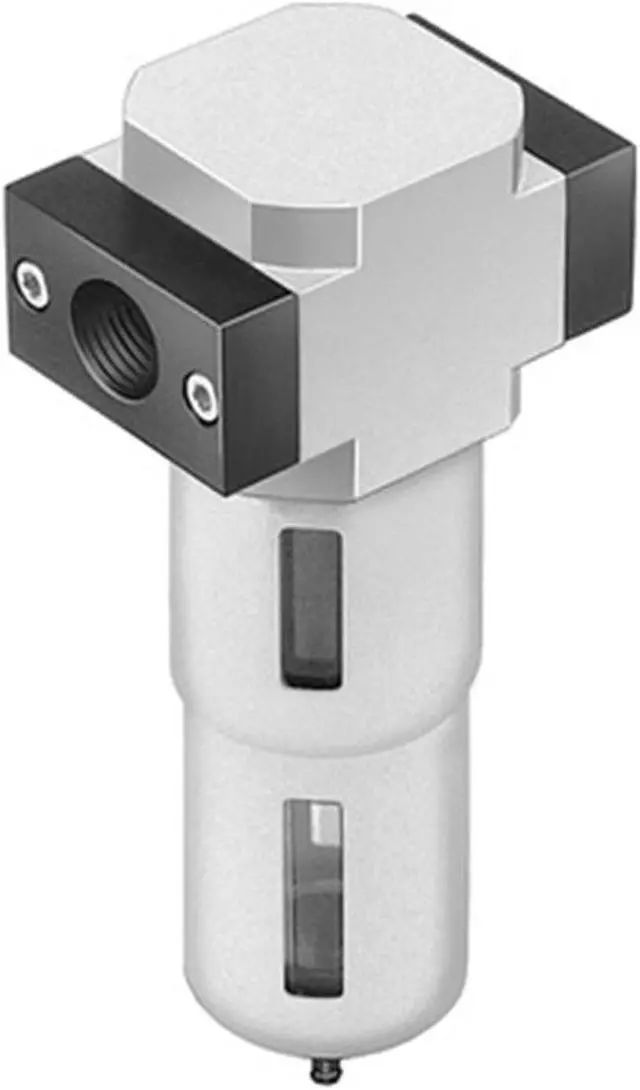

FESTO LF-3/8-D-5M-MINI-A-NPT Compressed Air Filter 173687 New
- FESTO LF-3/8-D-5M-MINI-A-NPT Compressed Air Filter 173687 New
+
+
Overview
Specs
Reviews
Size
Mini
Type code
LF
Series
D
Mounting position
Vertical
Grade of filtration
5 µm
Condensate drain
Fully automatic
Max. condensate volume
22 ml
Bowl guard
Metal bowl guard
Symbol
00991520
Operating pressure
2 bar ... 12 bar
Standard nominal flow rate
1100 l/min
Pneumatic connection 1
3/8 NPT
Pneumatic connection 2
3/8 NPT
Note on materials
RoHS-compliant
Compressed air filter material
PE
Housing material
Die-cast zinc
Material of bowl
PC
Mini
Type code
LF
Series
D
Mounting position
Vertical
Grade of filtration
5 µm
Condensate drain
Fully automatic
Max. condensate volume
22 ml
Bowl guard
Metal bowl guard
Symbol
00991520
Operating pressure
2 bar ... 12 bar
Standard nominal flow rate
1100 l/min
Pneumatic connection 1
3/8 NPT
Pneumatic connection 2
3/8 NPT
Note on materials
RoHS-compliant
Compressed air filter material
PE
Housing material
Die-cast zinc
Material of bowl
PC
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 15 days
- Return for replacement within: 30 days
- This item is covered by FeiPengLin Return Policy
