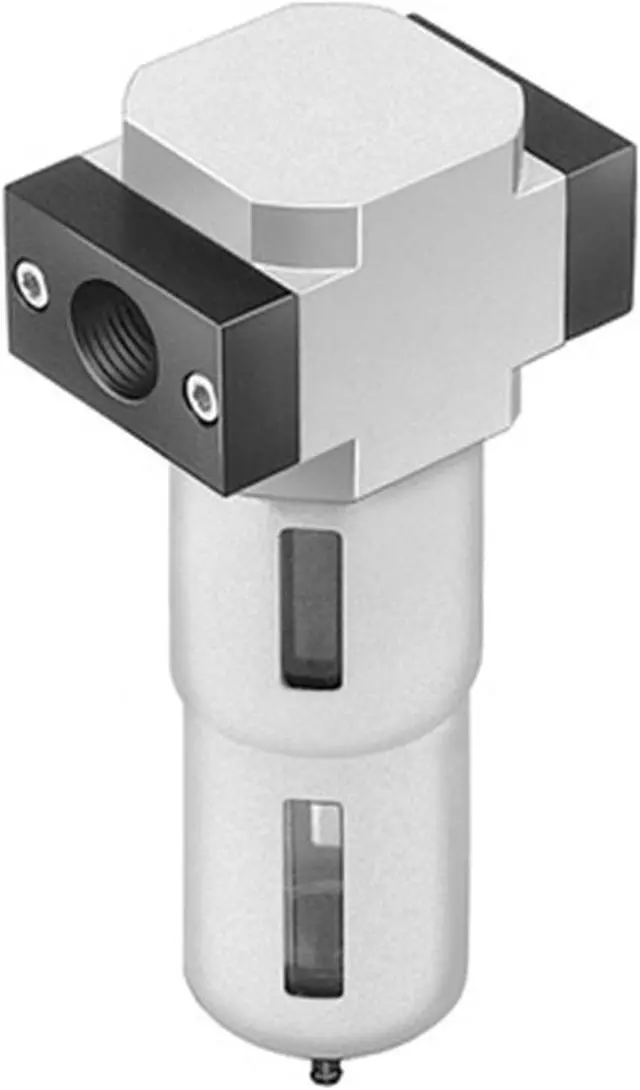

FESTO LF-1/2-D-MIDI-A-NPT Compressed Air Filter 173693 New
- FESTO LF-1/2-D-MIDI-A-NPT Compressed Air Filter 173693 New
+
+
Overview
Specs
Reviews
Size
Midi
Type code
LF
Series
D
Mounting position
Vertical
Grade of filtration
40 µm
Condensate drain
Fully automatic
Max. condensate volume
43 ml
Bowl guard
Metal bowl guard
Symbol
00991520
Operating pressure
2 bar ... 12 bar
Standard nominal flow rate
3000 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-10 °C ... 60 °C
Air quality class at the output
Inert gas
Compressed air as per ISO 8573-1:2010 [7:8:4]
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Pneumatic connection 1
1/2 NPT
Pneumatic connection 2
1/2 NPT
Note on materials
RoHS-compliant
Compressed air filter material
PE
Housing material
Die-cast zinc
Material of bowl
PC
Midi
Type code
LF
Series
D
Mounting position
Vertical
Grade of filtration
40 µm
Condensate drain
Fully automatic
Max. condensate volume
43 ml
Bowl guard
Metal bowl guard
Symbol
00991520
Operating pressure
2 bar ... 12 bar
Standard nominal flow rate
3000 l/min
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-10 °C ... 60 °C
Air quality class at the output
Inert gas
Compressed air as per ISO 8573-1:2010 [7:8:4]
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Pneumatic connection 1
1/2 NPT
Pneumatic connection 2
1/2 NPT
Note on materials
RoHS-compliant
Compressed air filter material
PE
Housing material
Die-cast zinc
Material of bowl
PC
