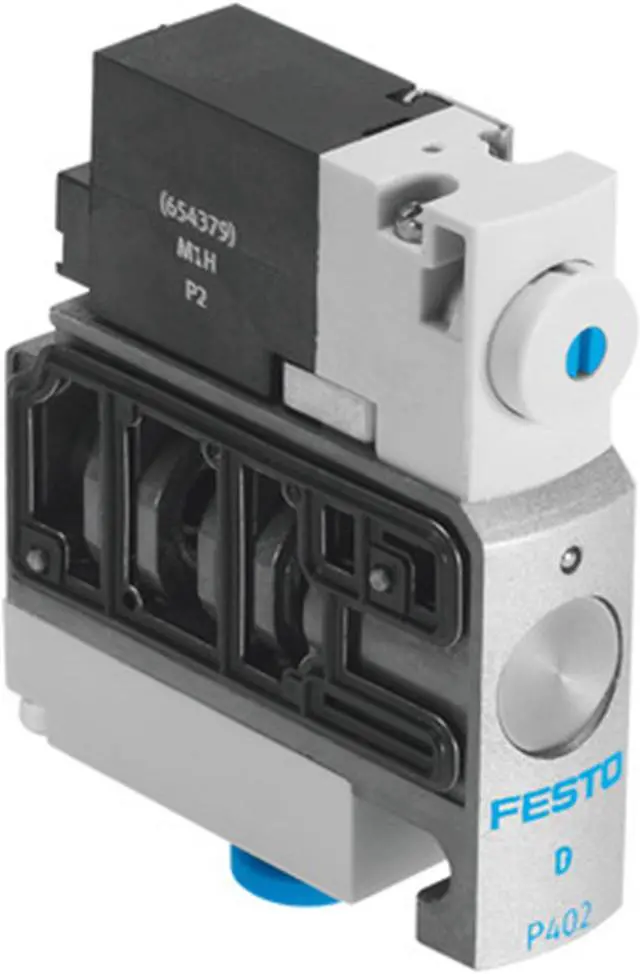

FESTO CPVSC1-M1H-M-P-QA 530542 Air Solenoid Valve New

Valve function
5/2, monostable
Actuation type
Electrical
Valve size
10 mm
Standard nominal flow rate
170 l/min
Pneumatic working port
QS-1/8
Operating voltage
22V DC
Operating pressure
-0.9 bar ... 7 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Degree of protection
IP40
Type code
CPVSC1
Exhaust air function
Without flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Non-detenting
Detenting
Type of control
Pilot-controlled
Pilot air supply port
External
Flow direction
Non-reversible
Symbol
00991682
Pilot pressure
3 bar ... 7 bar
Switching time off
10 ms
On switching time
10 ms
Max. positive test pulse with 0 signal
400 µs
Max. negative test pulse on 1 signal
200 µs
Coil characteristics
22 V DC: 1.0 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
-5 °C ... 50 °C
Product weight
27 g
