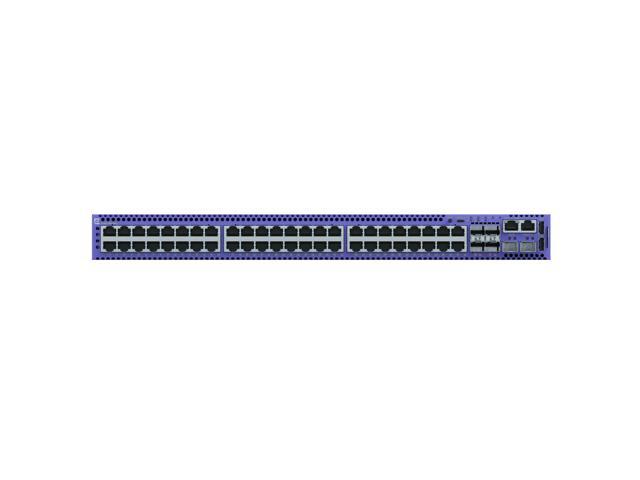

Learn more about the Extreme Networks 5420F-48P-4XE
Model
Brand
Extreme Networks
Series
5420
Model
5420F-48P-4XE
Format & Standards
Network Management Type
Managed
Ports & Interface
Primary Ports
48 x 10/100/1000BASE-T 802.3at (30W) ports • Full / Half-Duplex(autosensing) • MACsec-capable 4 x 1/10Gb SFP+ uplink ports(unpopulated) • MACsec-capable 2 x Stacking/SFP-DD ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port
Data Transmission
VLAN Support
Yes
Details
PoE
All 5420 models support 30W, 60W, and 90W PoE that conforms with IEEE 802.3bt. This enables the 5420 to address the needs of powered edge devices, while eliminating the need for additional electrical cabling and circuits. In addition, 5420 PoE models support perpetual and fast PoE for even more efficient and reliable powered edge device operation
Stackable
Yes
Dimensions & Weight
Dimensions
Height: 43.2 mm (1.7 in.) Width: 442.0 mm (17.4 in.) Depth: 330.20 mm (13.0 in.)
Weight
5.28 kg (11.64 lb.)
Additional Information
Date First Available
January 22, 2025
