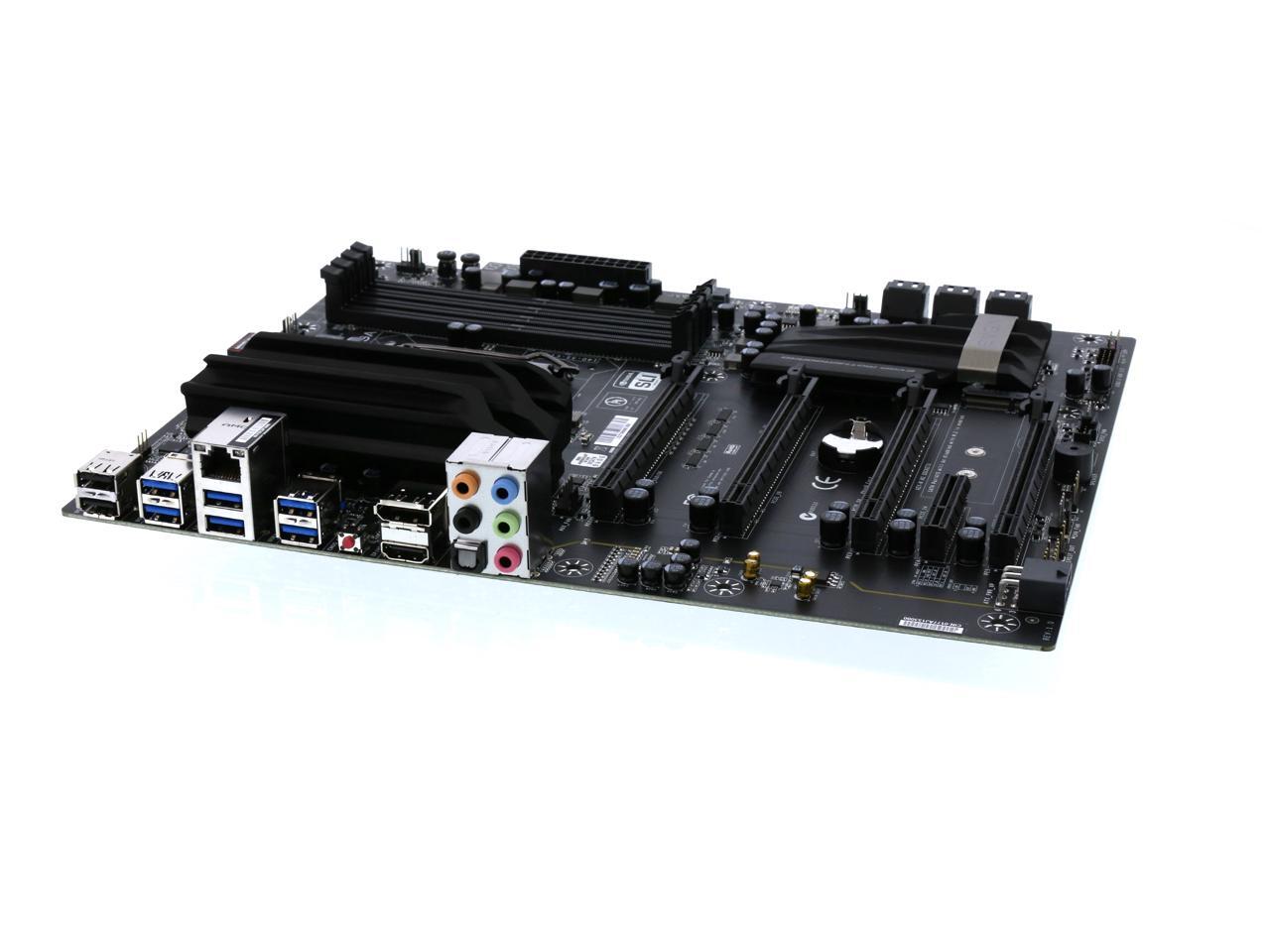

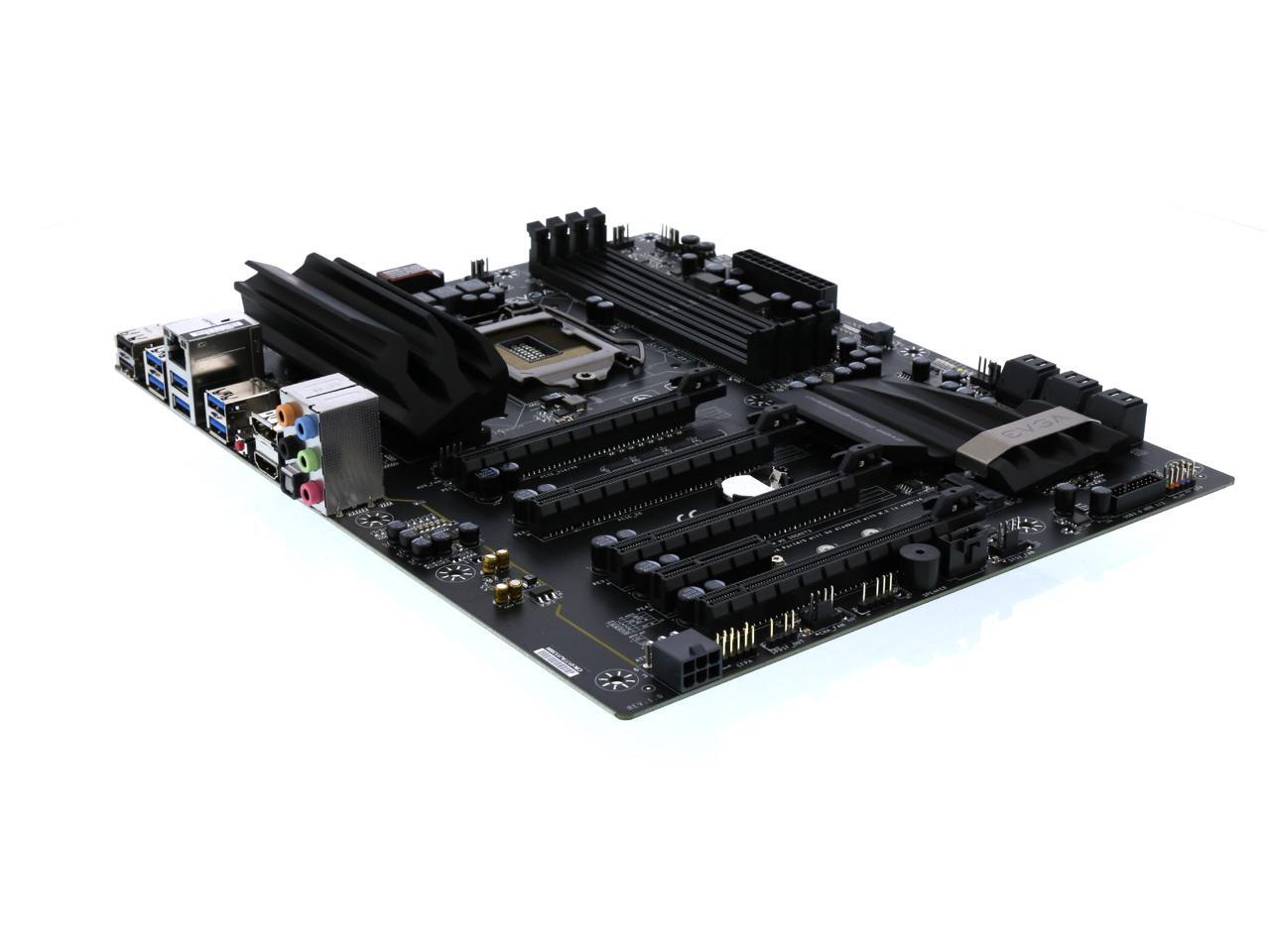

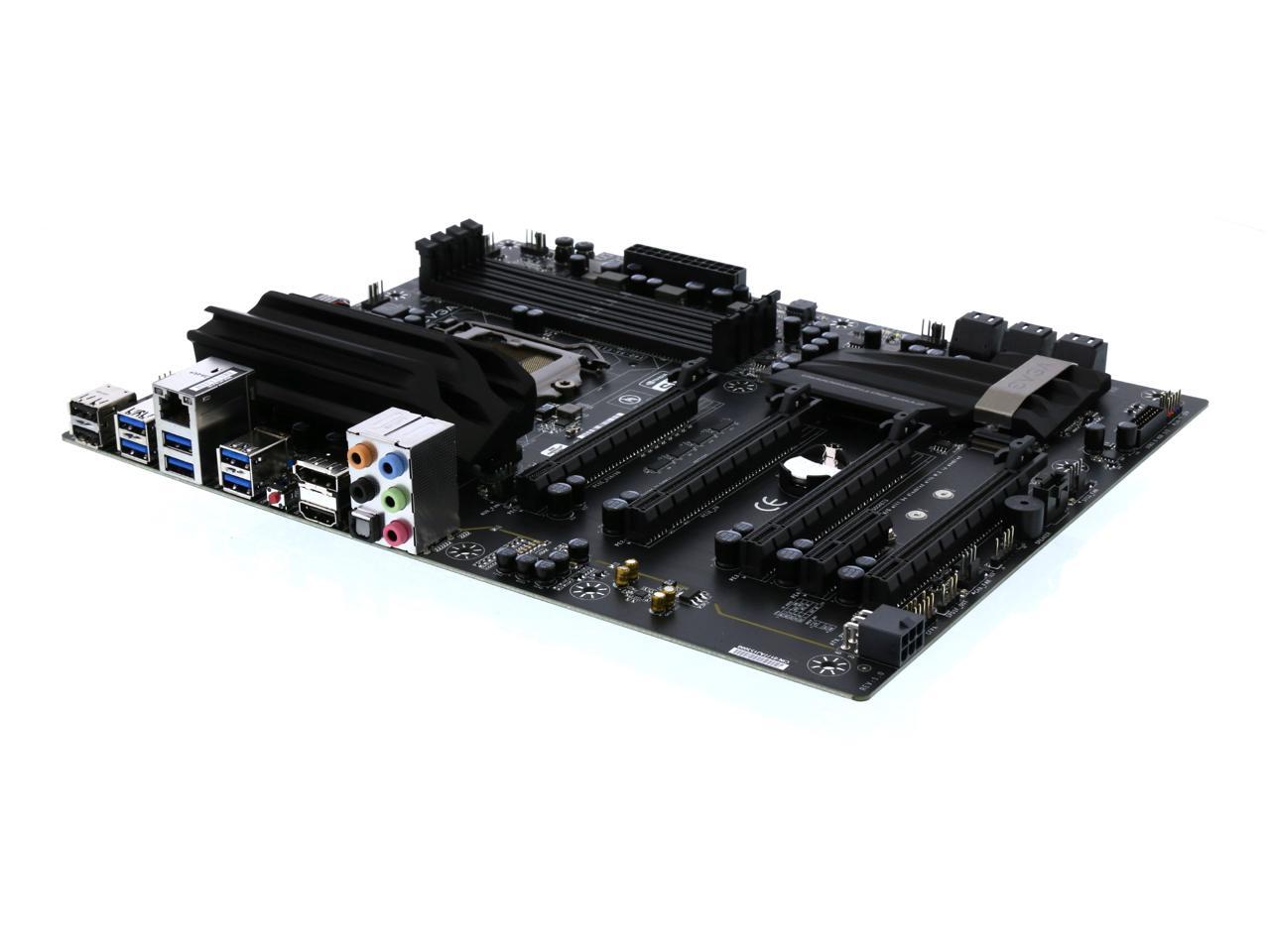

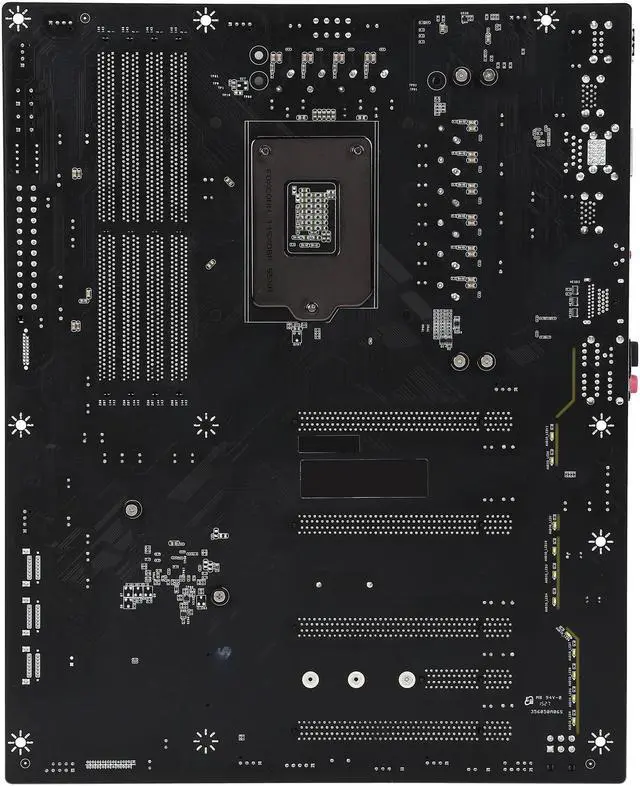

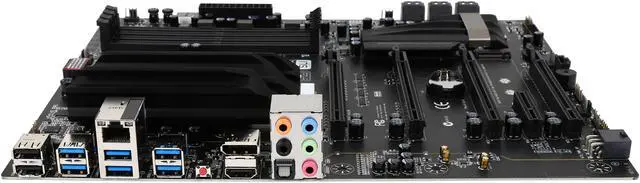

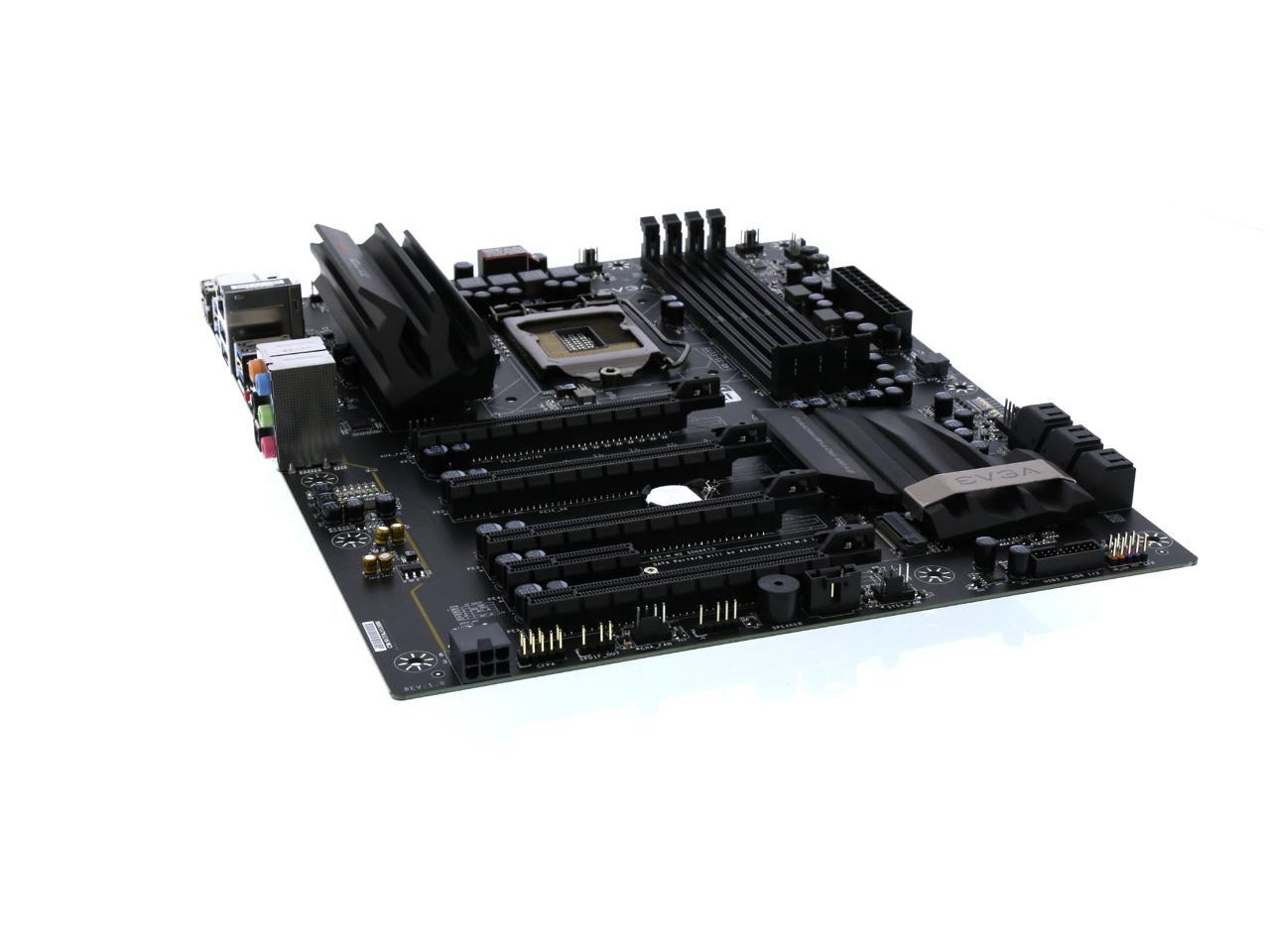

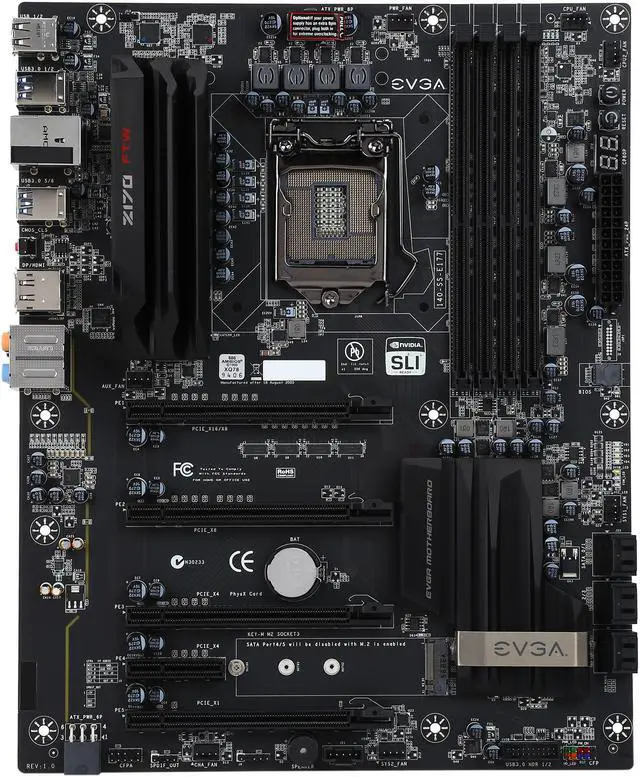

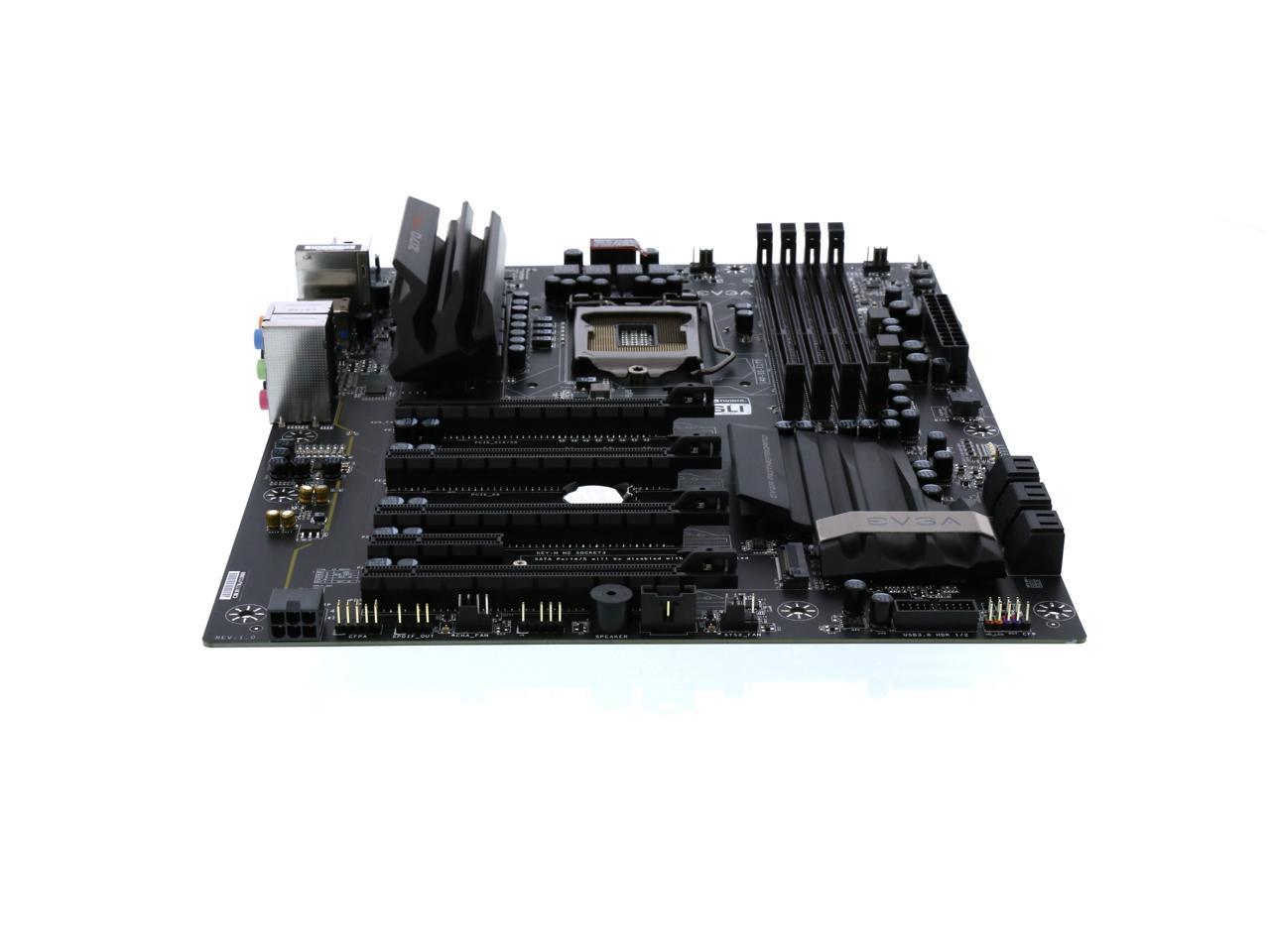

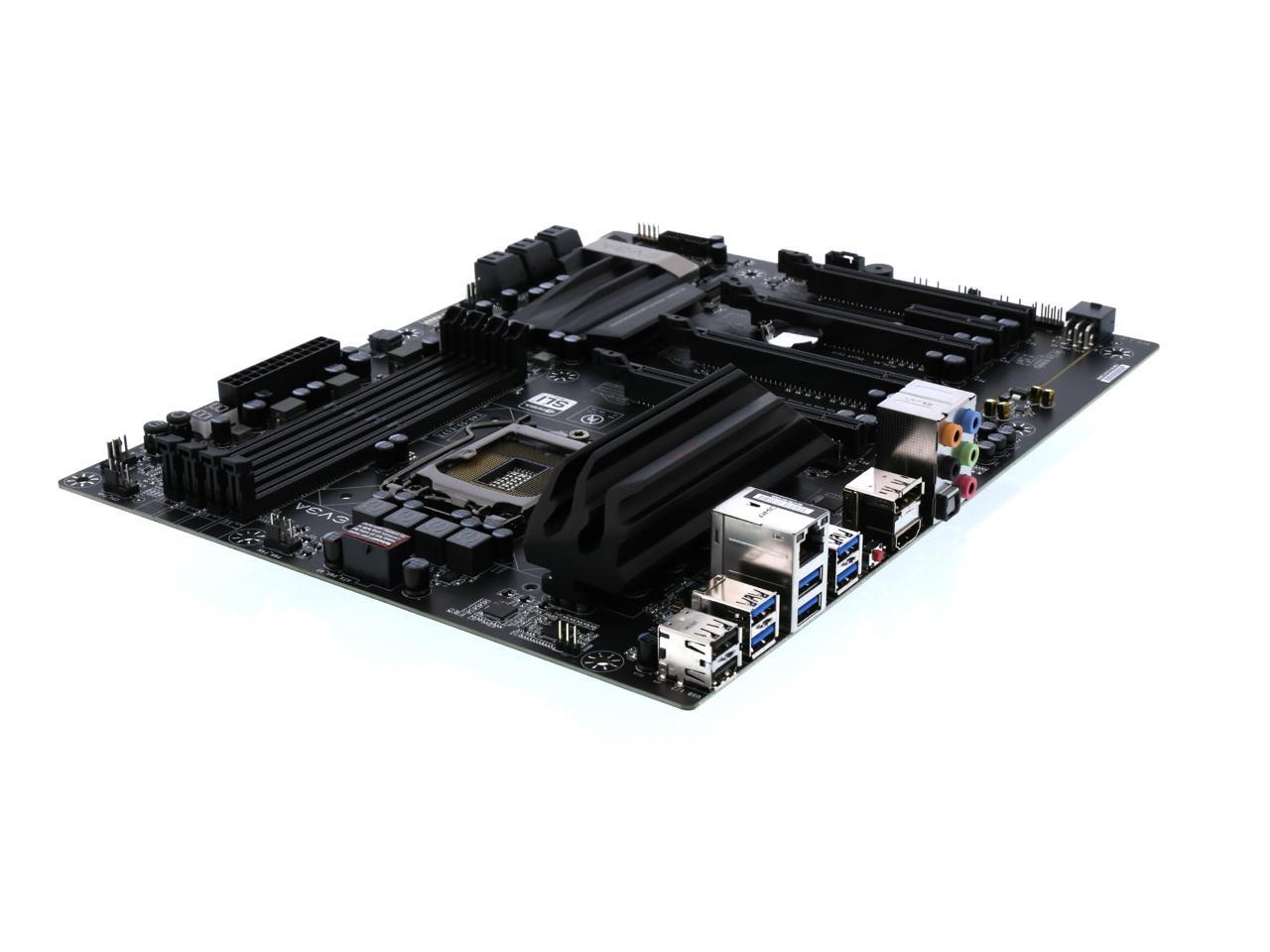

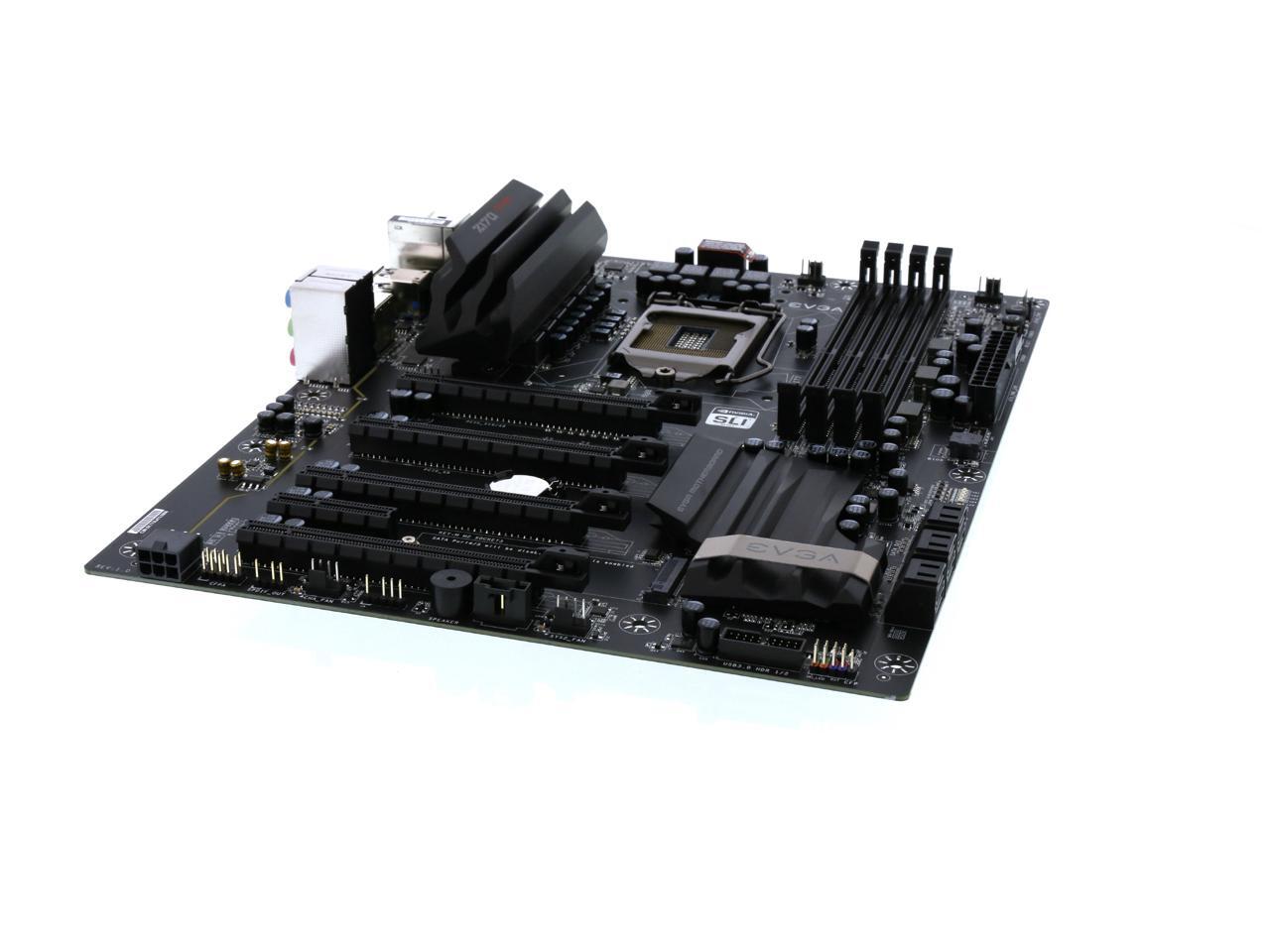

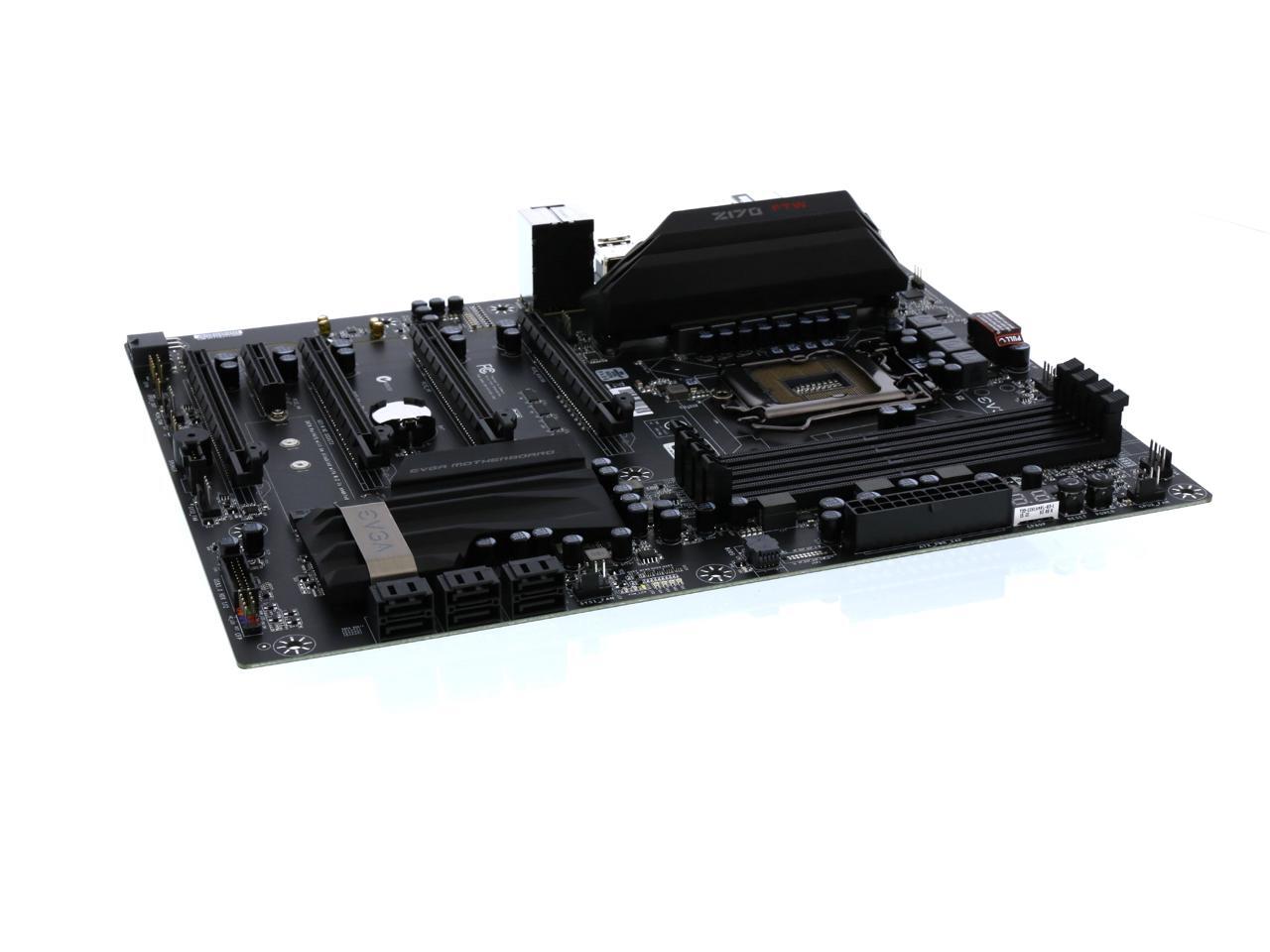

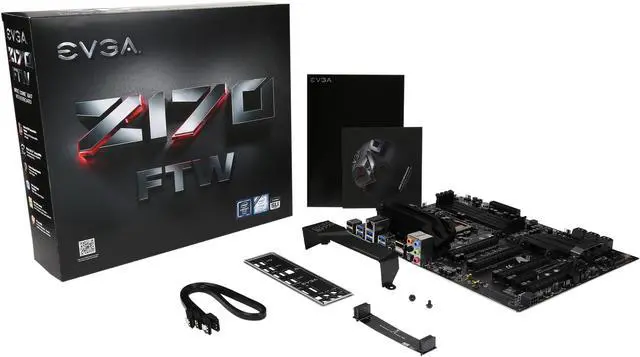

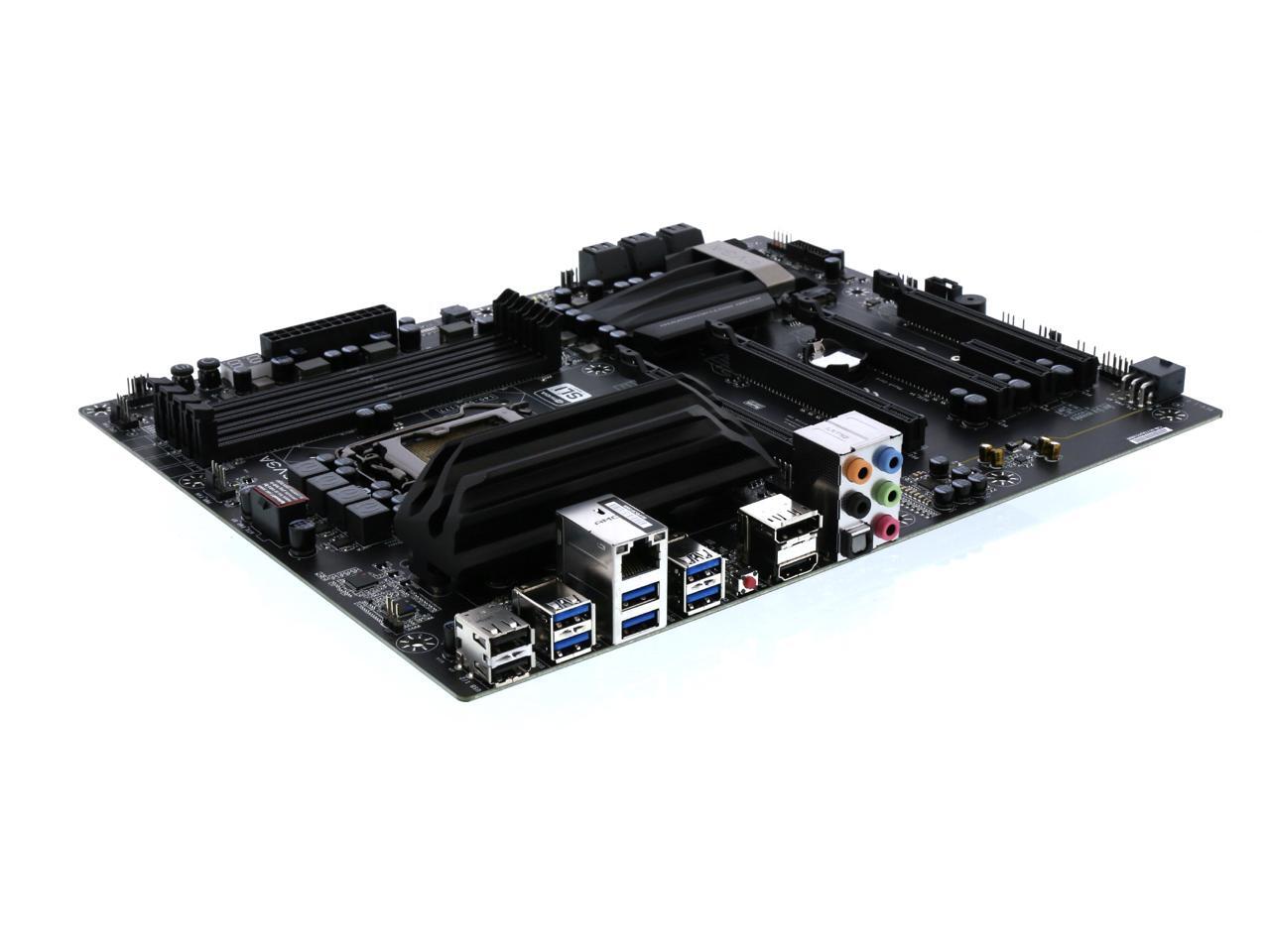

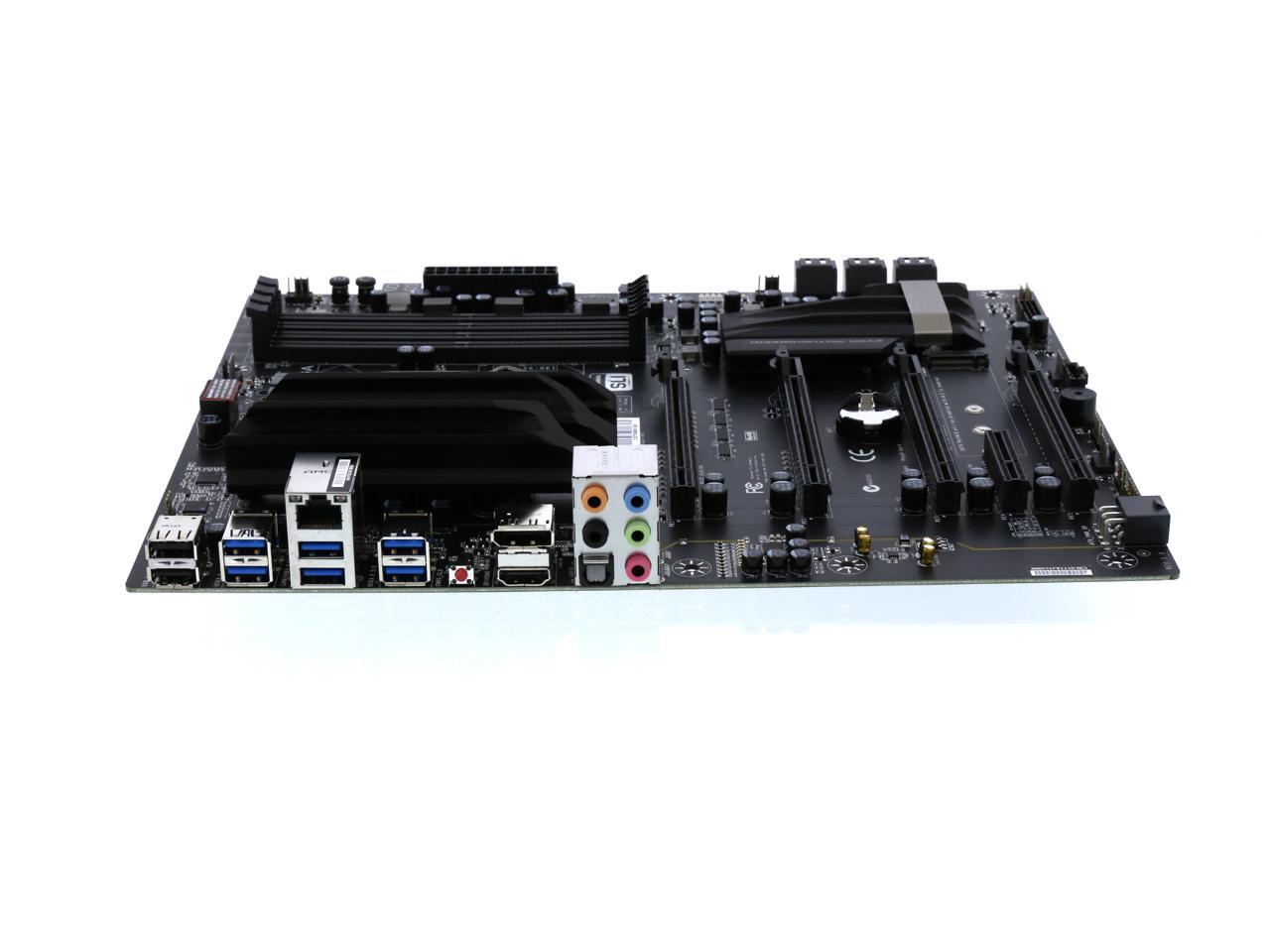

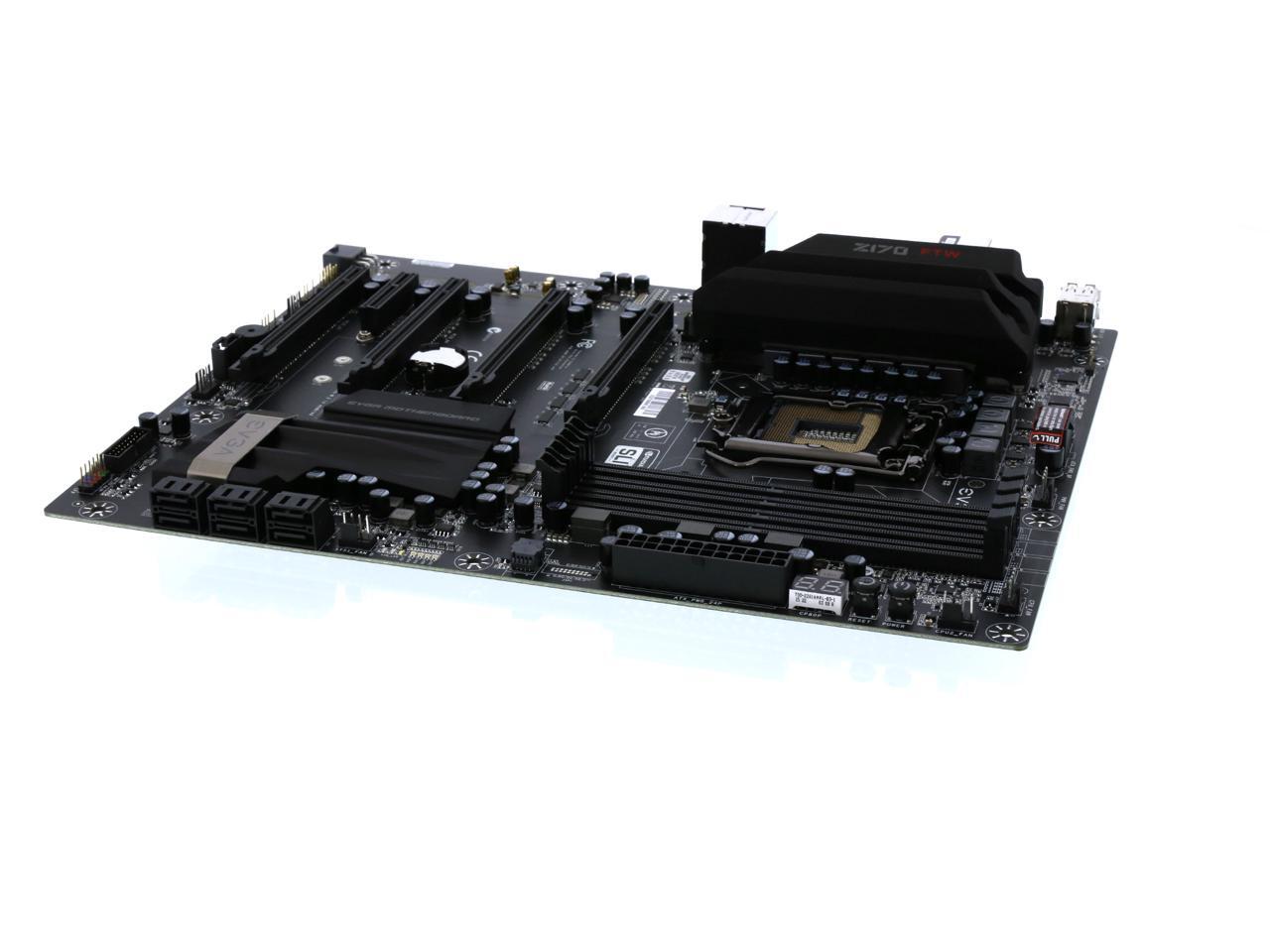

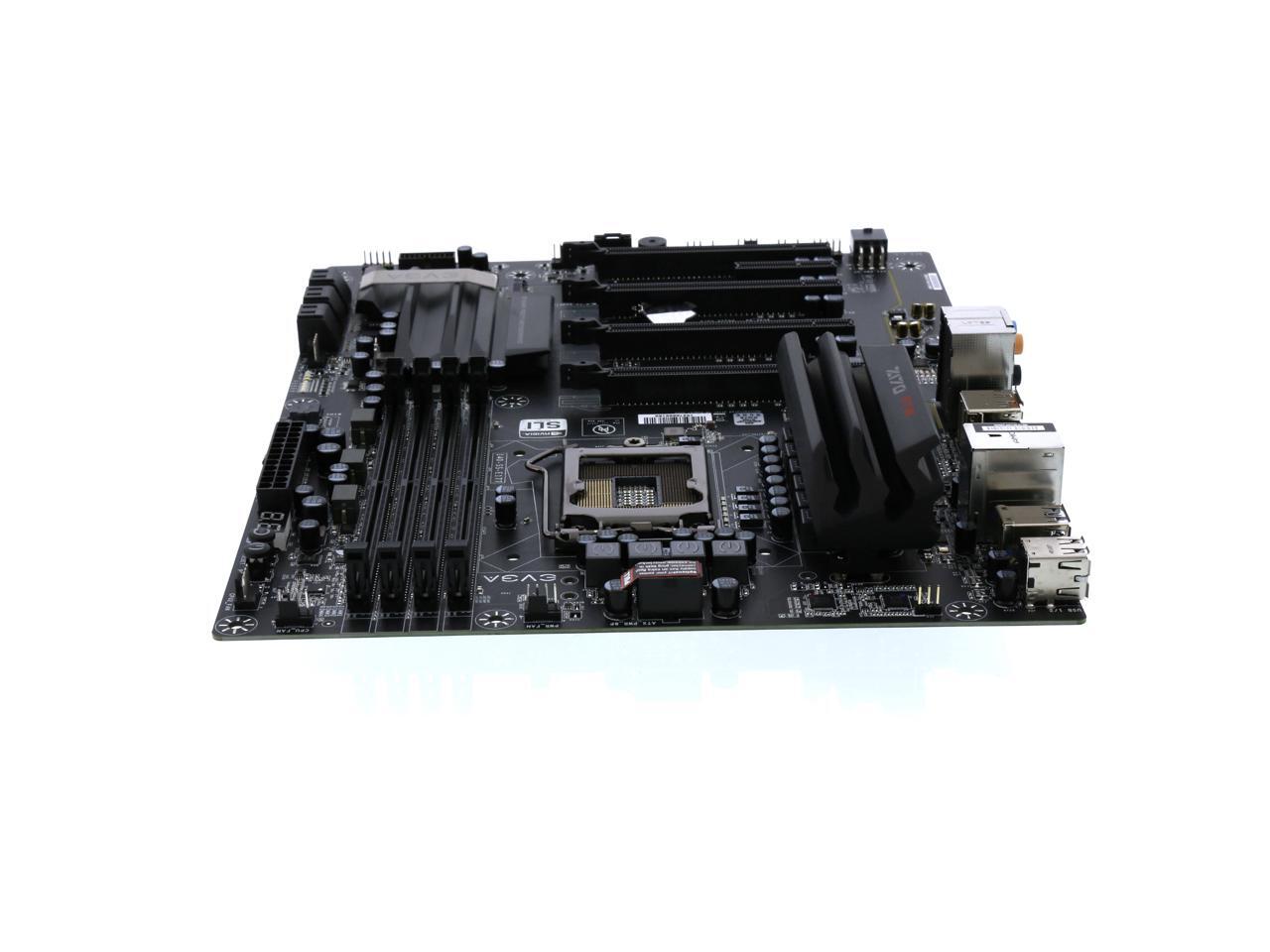

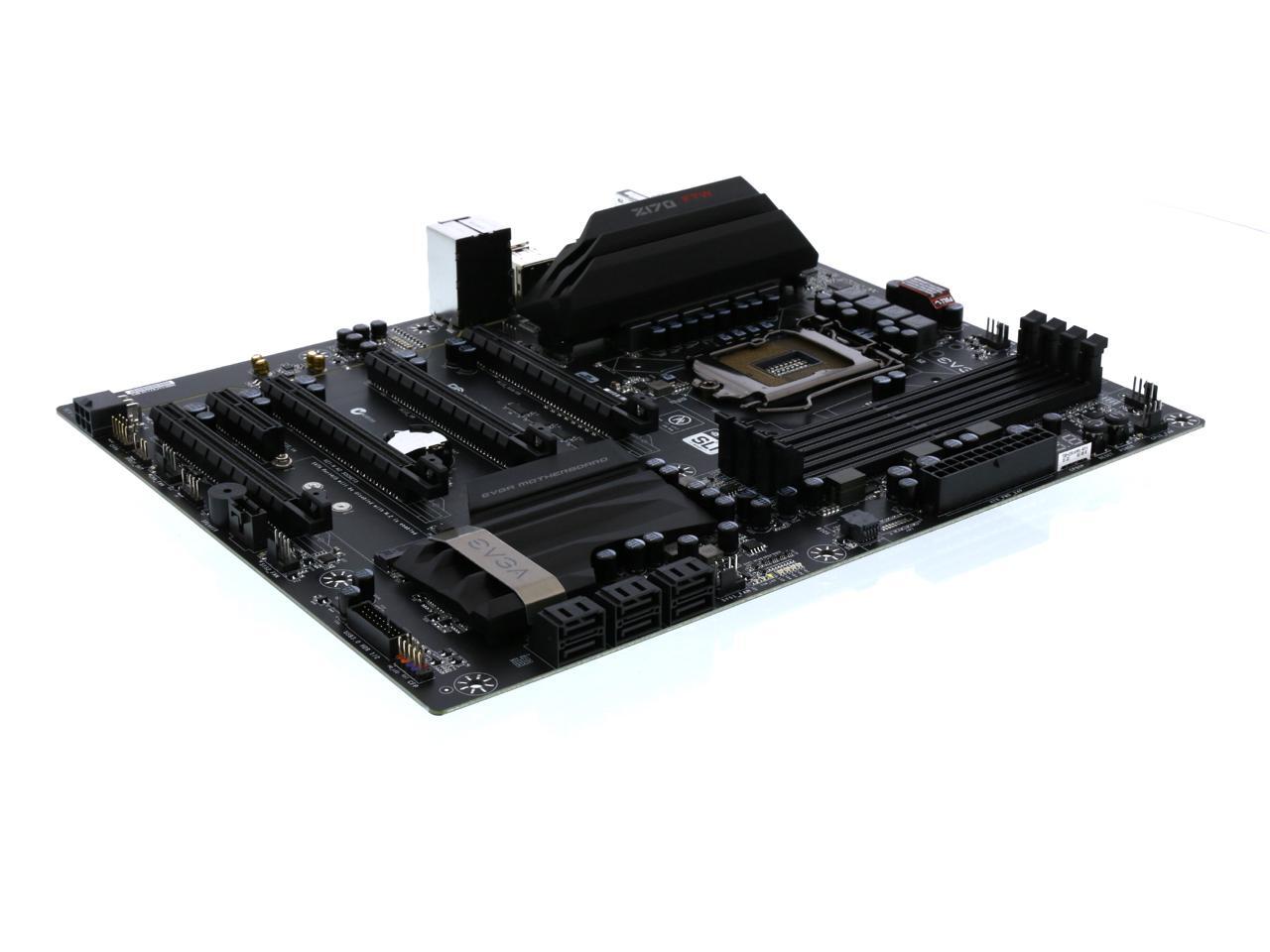

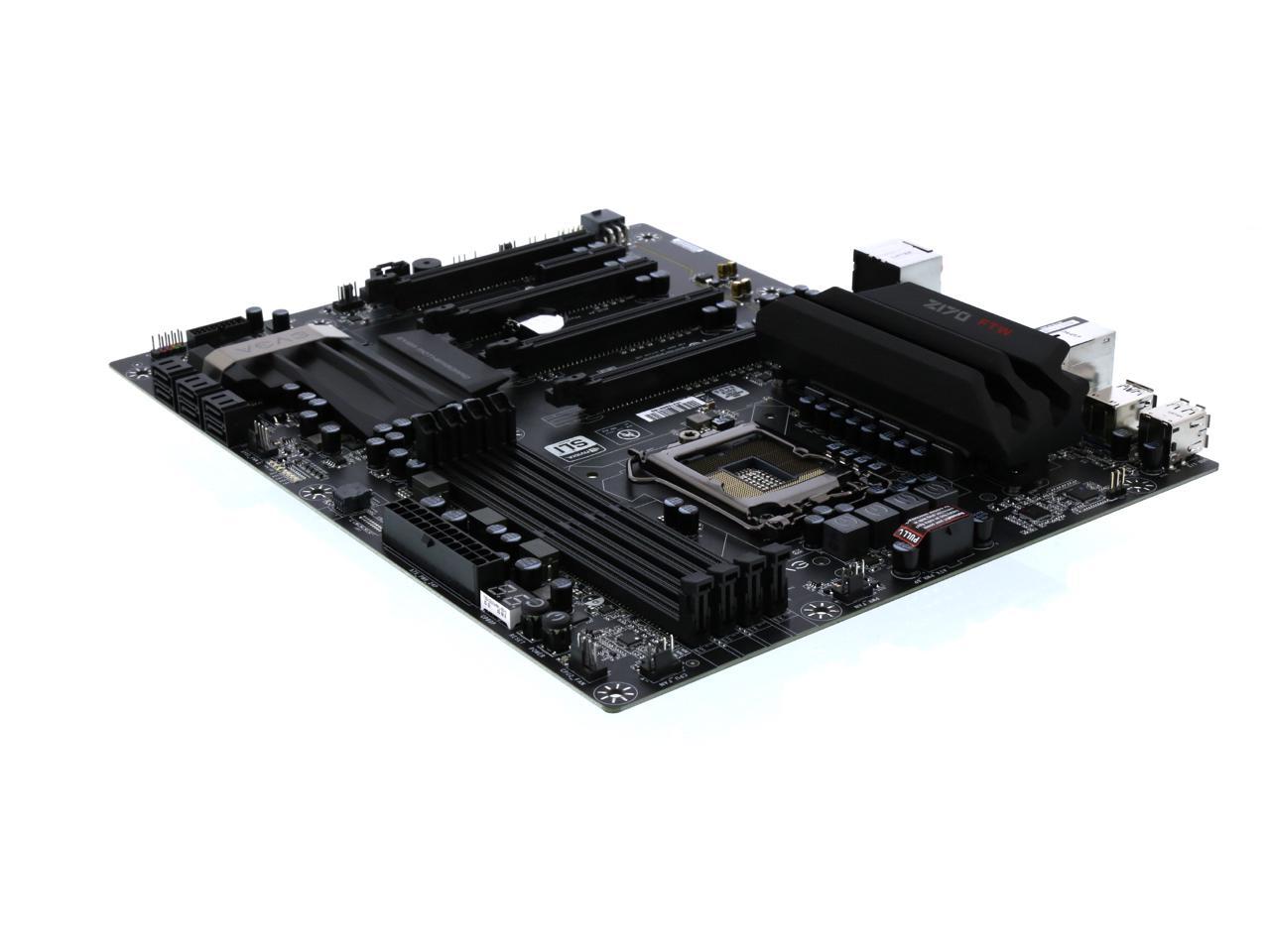

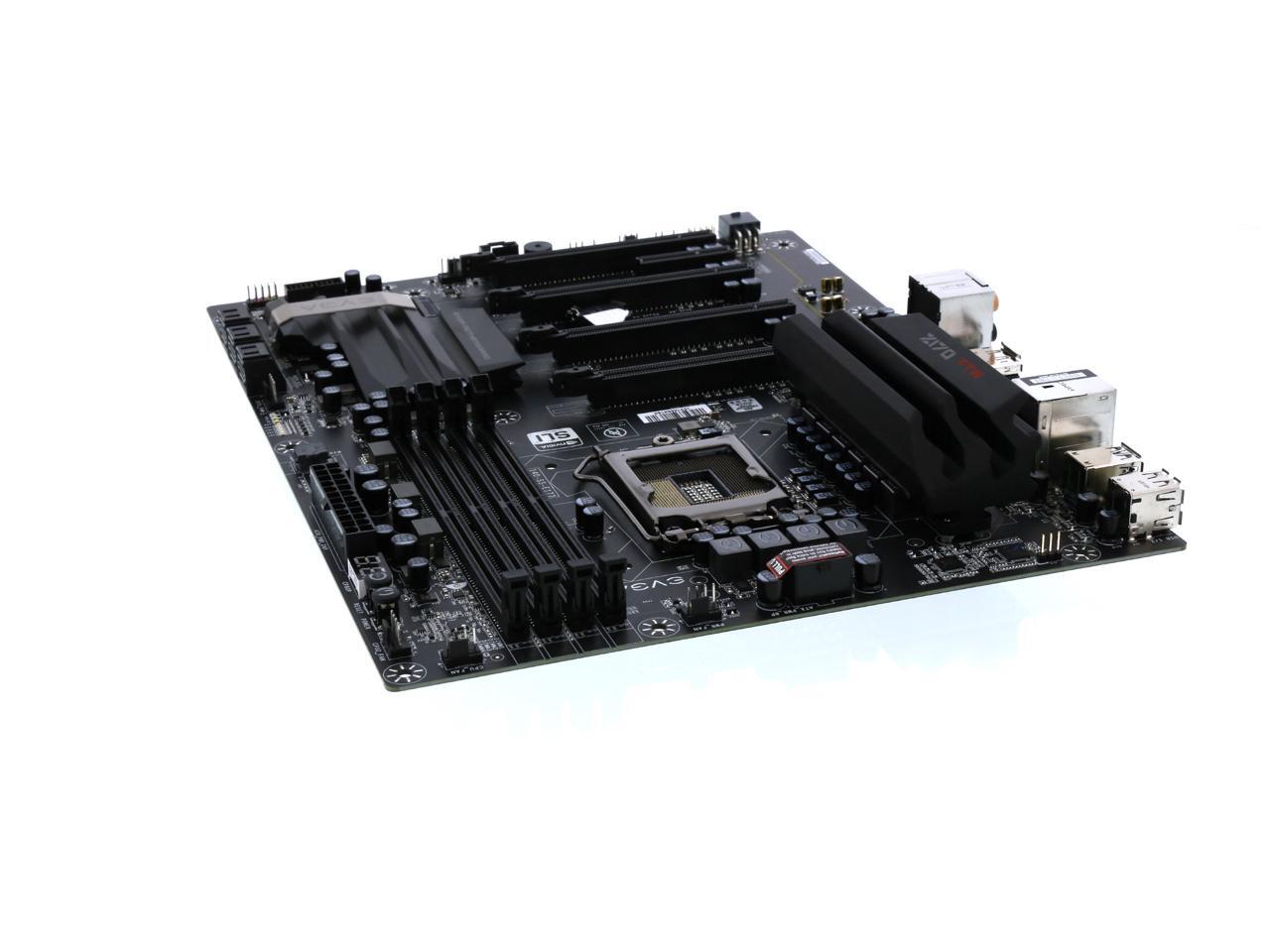

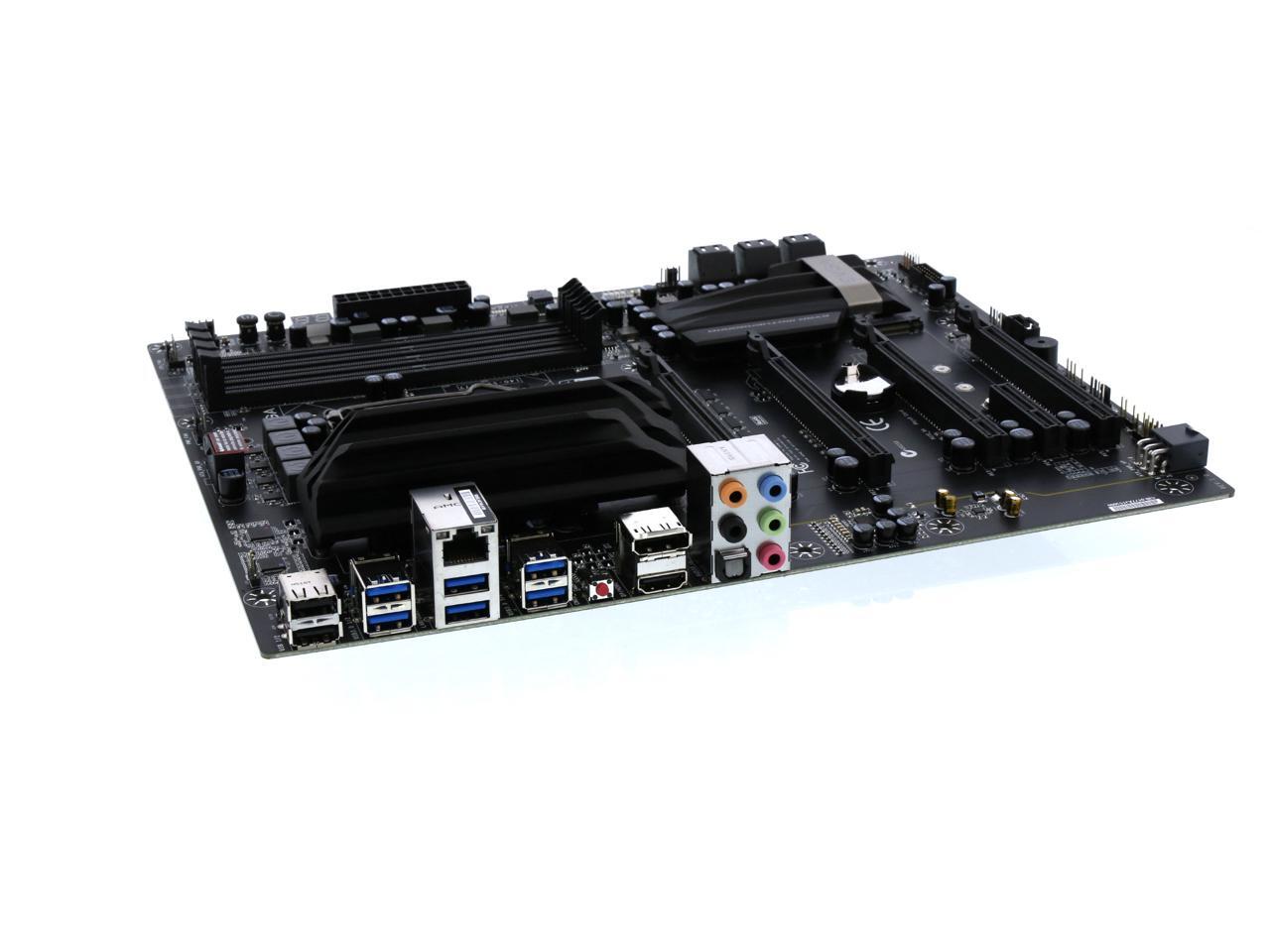

EVGA Z170 FTW 140-SS-E177-KR LGA 1151 Intel Z170 HDMI USB 3.0 ATX Intel Motherboard
- Intel Z170
- Intel 6th Generation Socket 1151 Processors
- DDR4 Up to 3200MHz+
Overview
Specs
Reviews (50)
The EVGA Z170 FTW motherboard is engineered to win. Designed for next generation hardware, the EVGA Z170 FTW features a new BIOS GUI interface designed to be fast and have the best overclocking support and functionality. A highly efficient VRM provides the cleanest power to the CPU possible, fed through a CPU socket that has 1.5X the amount of gold content for improved signal quality. A total of 4 DIMM slots support up to 64GB of DDR4 memory and the PCI Express layout is optimized for improved lane distribution and better performance with native support for NVIDIA SLI technology.
Specs
- Intel® Z170 Chipset
- SLI - Up to 2 Way SLI + PhysX
- 8 USB 3.0, 2 USB 2.0
- 4 DIMMs, dual channel DDR4, 3200 MHz+, up to 64GB
- Solid State capacitors
- Form Factor - EATX
- Intel NIC (i219 PHY)
- Realtek 8 channel audio + optical out
- M.2 Key M up to 32GB/s
- Replaceable BIOS Chip
A170 Platform Intel® Z170 Platform Unlocks Incredible Efficiency
Intel® Z170 Chipset- Supports up to 8 CPU threads (8-core)
- Supports DDR4 Memory
- First to support PCI-E 3.0 from PCH
- USB 3.1 Support (EVGA Z170 Classified)
- Up to 11% Faster CPU (SPECint rate base 2006)
- 22% Lower TDP (65W vs 84W)
- Up to 28% Faster Intel® HD Graphics (3DMark 11 Graphics Score)

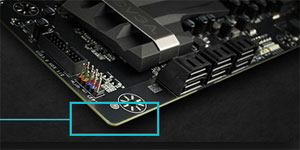

6 Layer PCBHigh layer count enhances stability both for heavy loads as well as high overclocking.

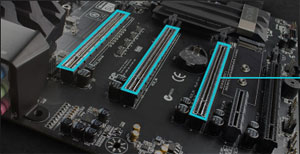

2-Way SLI® SupportThe EVGA Z170 FTW is rated for up to 2-Way SLI® + Physx® to handle the most demanding video loads.

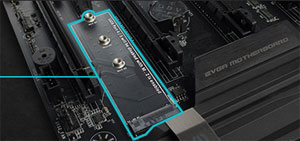

M.2 SupportThe Z170 FTW includes support for full size storage and WiFi from the M.2 jacks.

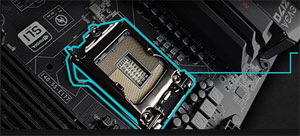

High Gold Content For CPU SocketHigher volume of precious metal (150% Gold) used in the sockets greatly improves the conductivity and produces a cleaner signal due to less resistance / impedance.

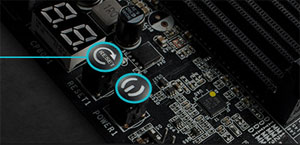

Onboard Power, Reset and CMOS Reset ButtonsWhen testing on the Z170, or running it in a benching environment where you do not need to worry about wiring the board to a case to have access to power and reset buttons, they are built onto the board.

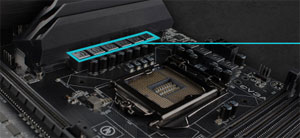

6 Phase PWMAn 6 Phase PWM helps to ensure that the power reaching the processor is clean and stable.

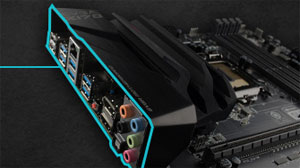

Top Notch Integrated PeripheralsThe Z170 FTW is not just focused on the upper end of extreme builds, but also with the smaller components as well. 8 Channel HD audio and an integrated Intel NICs to ensure you have the best quality sound and network connection right out of the box.
Comparison Chart
| EVGA MOTHERBOARD | PART NO. | FORM FACTOR | DIMM SLOTS | SLI | POWER PHASES | AUDIO | USB 3.1 | M.2 | SATA 6G | OVERCLOCKING |
|---|---|---|---|---|---|---|---|---|---|---|
| Z170 Classified 4-Way | 151-SS-E179-KR | EATX | 4(64GB Max) | 4-Way | 8 | Creative Core3D | Yes | 2 | 8(2 SATA-E) | Best |
| Z170 FTW | 140-SS-E177-KR | ATX | 4(64GB Max) | 2-Way + PhysX | 5 | Realtek HD Audio | NA | 1 | 6 | Better |
| Z170 Stinger | 111-SS-E172-KR | mITX | 2(32GB Max) | NA | 4 | Realtek HD Audio | NA | 1 | 4 | Good |
