ETCR9400 Zinc Oxide Arrester Electrified Clamp Tester 0.000mA~300.0mA

ETCR9400 Zinc Oxide Arrester Electrified Clamp Tester 0.000mA~300.0mA
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Product Main Function
Used for testing the leakage current of the zinc oxide arrester below 35kV circuit line to judge whether the performance of the arrester is deteriorating.
Measurement Range : AC 0.000mA~300.0mA
Resolution : 1uA
Accuracy : ±1%rdg±8dgt
Communication Distance : 30m
CT Size: F40mm
Data Storage : 200 groups

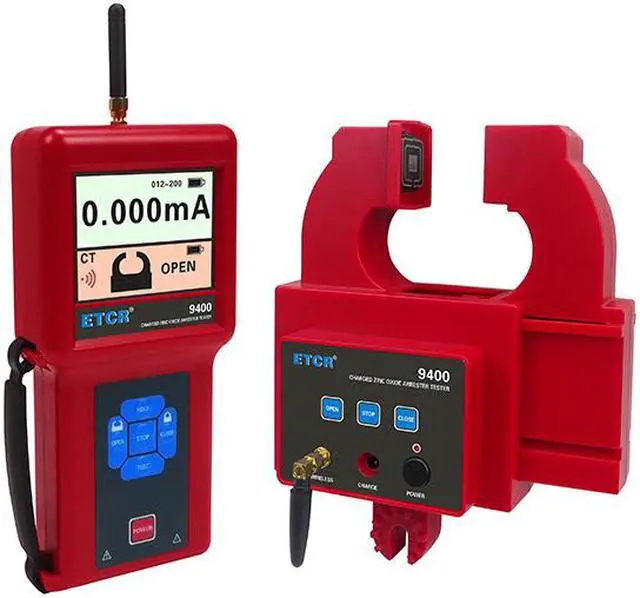

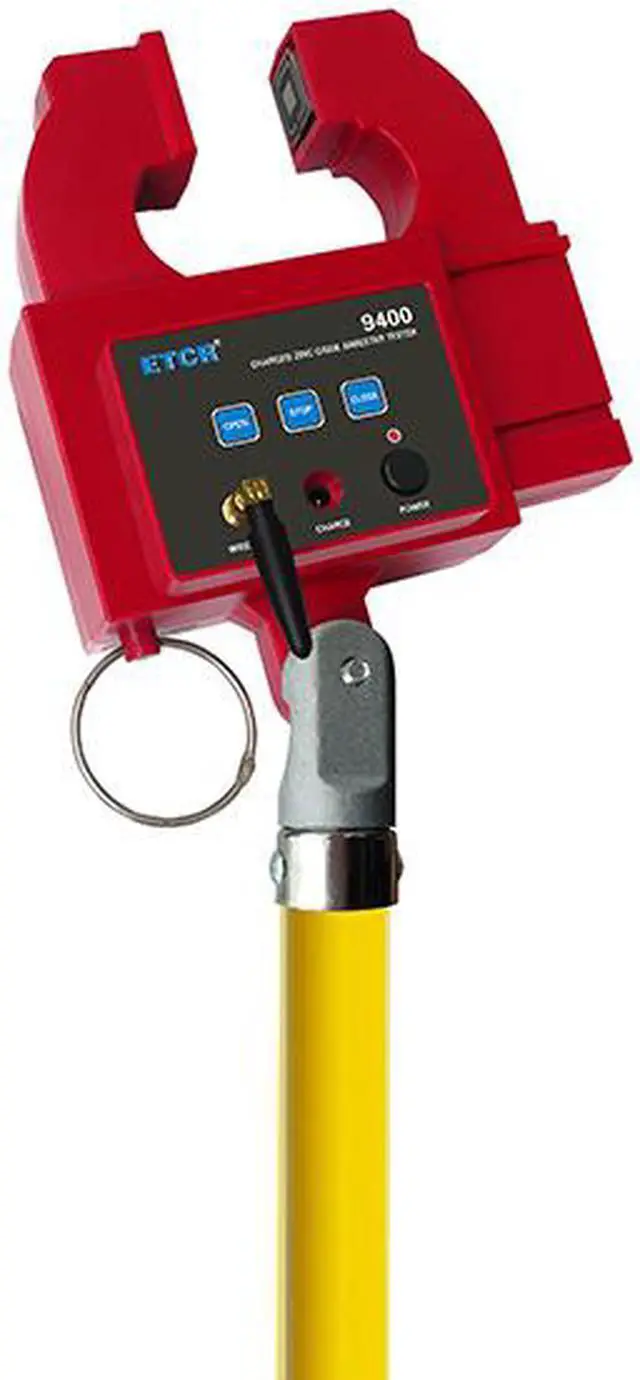

ETCR9400 Zinc Oxide Arrester Electrified Clamp Tester used for testing the leakage current of the zinc oxide arrester below 35kV circuit line to judge whether the performance of the arrester is deteriorating. There is no need to cut off power supply during the test, no need to remove the arrester, safe and fast to operate. The current clamp with strong anti-interference ability, and with microampere level leakage current test ability, which can test 1uA weak current, also can be used as high accurate clamp ammeter. Adopt wireless communication mode, the master instrument can close or open the detector remotely, check the working condition of the clamp jaw and reading current data.The detector can be connected with insulation rod to use.  With USB interface, data storage and upload functions.
Technical Parameters
Function Description
Power Supply Master:  DC 7.4V 2000mAh rechargeable battery, full charge about 8.4V
Detector:  DC 7.4V 2600mAh rechargeable battery, full charge about 8.4V
Test Mode Clamp CT
Measurement Range AC 0.000mA~300.0mA (50/60Hz auto)
Resolution 1uA
Accuracy ±1%rdg ± 8dgt (23oC±5oC, below 80%RH)
Communication Mode 433MHz wireless communication
Communication Distance 30m
Display Mode 3.5 inch color screen, Display area: 71mm×53mm
Meter Size Master: 195mm×100mm×45mm; Detector: 208mm×131mm×90mm
Meter Weight Master: 400g, Detector: 1220g; Total Weight: 7000g(including insulation rod and case)
CT Size f40mm
Sampling Rate 2times/second
Data Storage 200 groups,display “HOLD” symbol in storage process
Data Hold In test mode, press HOLD key to hold data and store data, "HOLD" symbol is displayed, and then press HOLD key to cancel.
Data Access “READ”symbol is displayed, can browse all stored data
Overflow Display Over range overflow function:”OL” symbol is displayed
Automatic Shutdown About 10 minutes after power on, the meter shuts down automatically to reduce battery consumption.
Battery Voltage When the battery power is low, the battery voltage low symbol is displayed to remind the meter need to charged
USB Interface The master equip with USB interface,can upload the stored data to computer
Line Voltage Below 35KV
Insulation Rod Dimension f44mm
Working Temperature -20? ~ 40? ; below 80%Rh

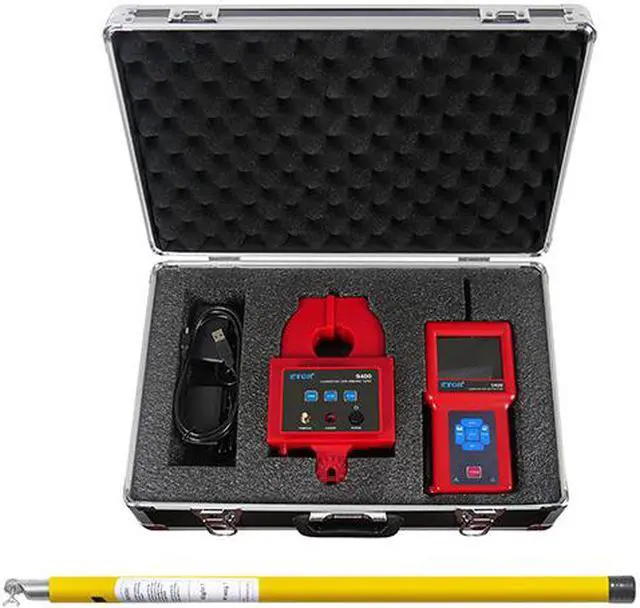

Accessories MasterX1PCS; DetectorX1PCS;Telescopic Insulation rod 1mX3PCS;Emergency pull ringX1PCS;ChargerX2PCS;USB communication cableX1PCS
Package  Outer Package  Carton
Inner Package  Instrument Case
Accessory  Host  1 pcs
Detector  1 pcs
Telescopic insulation rod(1m)   1 pcs
Charger  2 pcs
USB communication cable  1 pcs
Emergency pull ring  1 pcs
Instrument Case  1 pcs
Insulation rod Bag  1 pcs
Manual,certification,warranty card  1set
