ETCR6900 Flexible Coil Large Current Clamp Meter AC Current AC 0.00A~9999A

ETCR6900 Flexible Coil Large Current Clamp Meter AC Current AC 0.00A~9999A
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Product Main Function
1. Measurement of AC Current , Range:AC 0.00A~9999A
2. Data Storage: 99 groups
3. Line Voltage: below 600V
4. Coil Diameter: F200mm

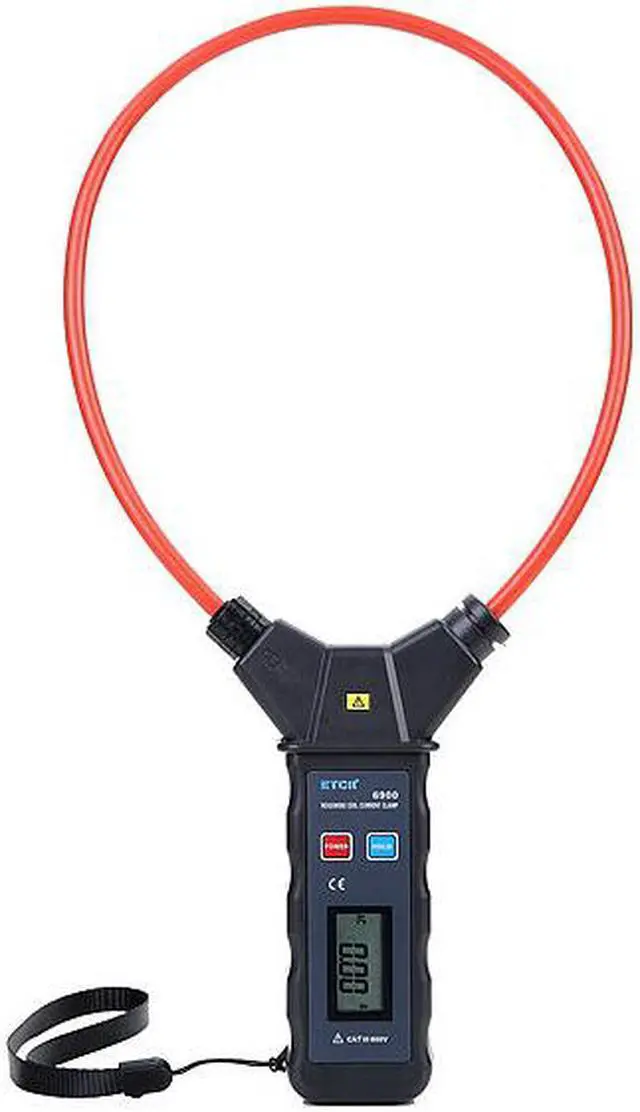

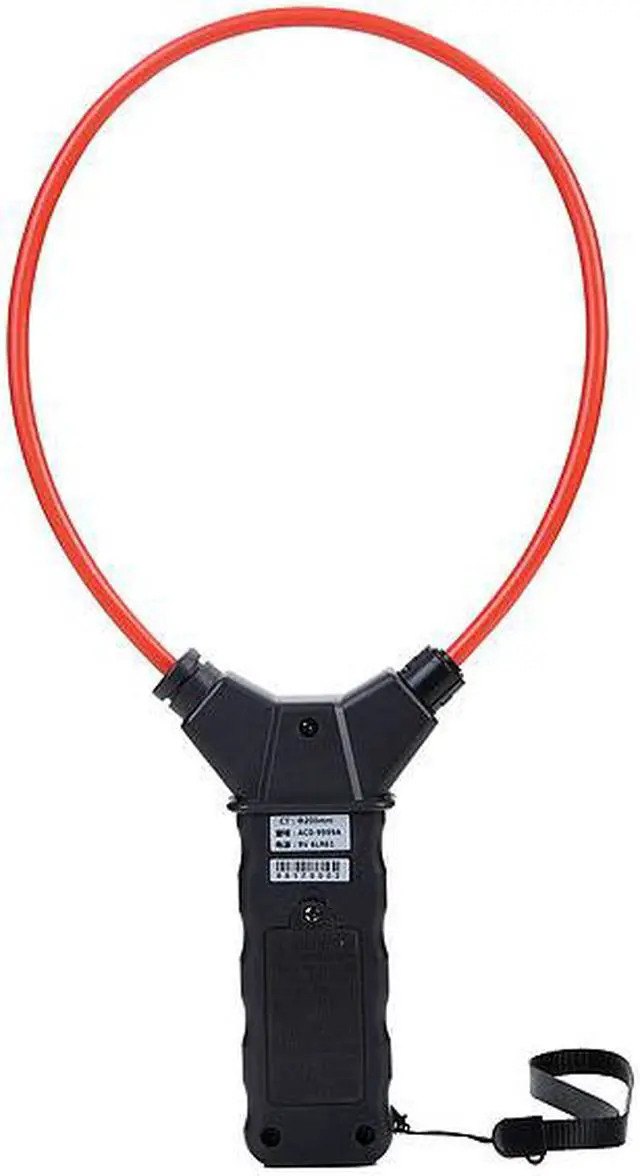

ETCR6900 Flexible Coil Large Current Clamp Meteris designed and manufactured for field testing of AC large current. Widely used in electric power, communications, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. Especially suitable for the flat cable dense place, current test of transformer grounding core , thick wire and cable, relay protection, silicon controlled rectifier, frequency conversion speed regulation, semiconductor switch, power electronic conversion equipment, arc welding and other industrial environment with serious signal distortion.
Flexible current clamp sensor, Rogowski Coil, adopts advanced Rogowski Coil technology, which is a loop coil uniformly wound on non-ferromagnetic materials, with no hysteresis effect, almost zero phase error, no magnetic saturation, high linearity and strong anti-interference ability. The output signal is the differential of the current with respect to time. By integrating the output voltage signal, the input current can be truly restored. The measured current ranges from milliamperes up to ten thousands of amperes. Flexible coil without any exposed metal conductor, non-contact measurement, safe and reliable. Small size, light weight, soft and flexible, suitable for narrow environment and flat cable dense places. High measurement accuracy, strong reliability, wide response frequency band, the user can customize the coil length according to demand.
The meter has the functions of peak hold, data hold and data storage etc., convenient to use, which is an essential tool for electrical safety inspection
