ETCR6470 Clamp Multimeter with Large Screen Digital

ETCR6470 Clamp Multimeter with Large Screen Digital
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
ETCR6470 Clamp Multimeter measure of AC Current, AC/DC voltage, resistance, capacitance, continuity test, diode forward voltage drop and LED working voltage para meters etc .The perfect combination of clamp meter and multimeter adopt the high performance and new type MCU processor, convenient to carry, which is an ideal tool for electrical measurement.  Max AC/DC voltage reach 2000V, Max AC current range 2000A, CT size?55mm, It is especially suitable for measuring large current and starting current site.  The meter without rotary switch, but with the feature of high reliability, high safety, automatic range adjustment and so on. And equip with large screen digital, data hold, undervoltage prompt, and automatic shutdown function.
Basic function
Function Description
 DC Voltage  2V/20V/200V/2000V                       ±(0.5%+5)
 AC Voltage  2V/20V/200V/2000V                       ±(0.8%+5)
DC Curent 20A/200A/2000A                              ±(1.9%+10)
 AC Current  20A/200A/2000A                            ±(1.9%+10)
 Resistance  200O/2kO/20kO/200kO/2MO/20MO      ±(1%+3)
 Capacitance  20uF/200uF/2uF/20uF/200uF/2000uF        ±(3%+5)
 Frequency  AC voltage: 40Hz~400Hz; AC current:50Hz~ 60Hz
 Temperature Condition  Temperature:23?±5? , Relative humidity: <70%
Basic function
Function Description
 DC Voltage  2V/20V/200V/2000V                       ±(0.5%+5)
 AC Voltage  2V/20V/200V/2000V                       ±(0.8%+5)
DC Curent 20A/200A/2000A                              ±(1.9%+10)
 AC Current  20A/200A/2000A                            ±(1.9%+10)
 Resistance  200O/2kO/20kO/200kO/2MO/20MO      ±(1%+3)
 Capacitance  20uF/200uF/2uF/20uF/200uF/2000uF        ±(3%+5)
 Frequency  AC voltage: 40Hz~400Hz; AC current:50Hz~ 60Hz
 Temperature Condition  Temperature:23?±5? , Relative humidity: <70%
Special function
Function Description
 Auto Measure Range  v
 Display  True RMS(effective value calibration of sine wave)
 Overload Protection  v
 Auto Shutdown  v
 Diode Test  DC forward current about 0.5mA
 DC reverse voltage about 3.2V
 Open circuit voltage about 0.6V
 Short Circuit Buzzer  v
 LowVoltageIndicator  v
 Input Impedance  About 10MO
 Data Hold  v
 Surge Signal Measurement  v
 CT Size  F55mm
General features
Function Description
 Power Supply  6F22 9V(IEC6F22, NEDA1604, JIS006P)
 Meter Weight  460g(with battery)
 Meter Dimension  270x100x46mm

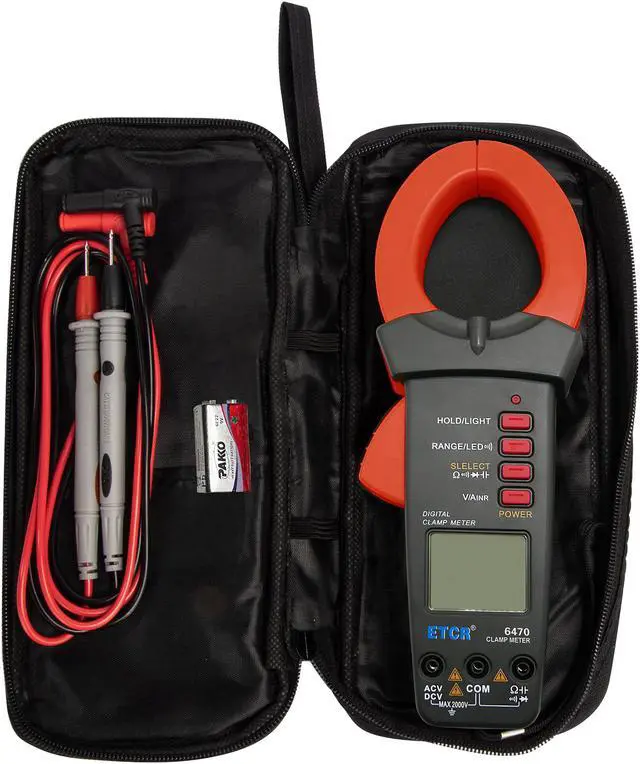

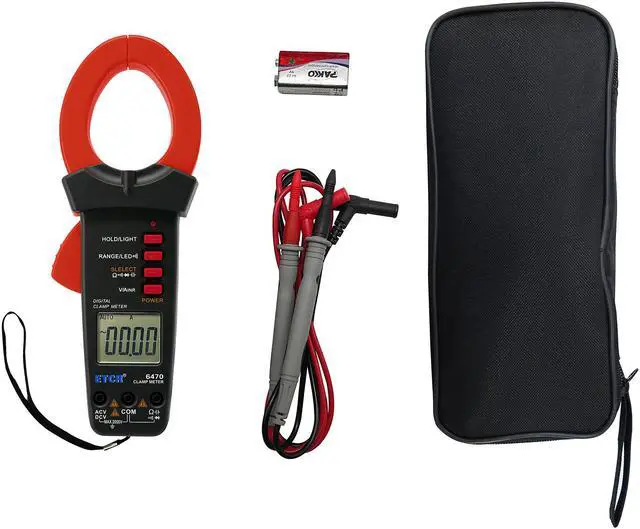

 Accessories  Meter:1pcs ; Pen probe:1set; Meter Bag:1pcs
 Package  Outer Package  Carton
 Inner Package  Cloth bag
  Accessory  Meter  1 PCS
 Pen probe  1 PCS
 Manual  1 PCS
 Certification  1 PCS
 Warranty Card  1 PCS
