ETCR6420 Clamp Multimeter DC Voltage AC DC Current true RMS Resistance

ETCR6420 Clamp Multimeter DC Voltage AC DC Current true RMS Resistance
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Product Main Function
Measurement of  DC voltage, AC voltage, AC current true RMS, resistance, capacitance, frequency, on-off test, temperature, diode forward voltage drop and others parameters.
CT Size:?27mm
DC Voltage:0mV~600V
AC Voltage:0V-600V
AC Curent:0A-600A
Resistance:0O~40MO
Capacitance:0nF~10mF
Frequency:0Hz~40MHz
 ETCR6420 Clamp Multimeter is a portable type clamp digital multimeter, which can measure DC voltage, AC voltage, current true RMS value, resistance, frequency, on-off test, temperature, forward voltage drop of the diode and other parameters. The capacitance measurement range is up to 10mF and the measurement speed of large capacitance is fast. The instrument with a small structure, easy to operate and portable. It is an ideal instrument for electrical measurement, which provides a safe, accurate and convenient new electric power meter for electric inspectors, and is an essential tool for electrical safety inspection.
 Basic function
Function Description
DC Voltage 400m/4/40/400/600V                                 ±(0.5%+5)
AC Voltage 4/40/400/600V                                            ±(1.2%+5)
AC Current 4A/40A/400A/600A                                     ±(2%+10)
Resistance 100/4k/40k/400k/4M/40MO                         ±(1%+5)
Capacitance 10n/100n/1u/10u/100uF/1000uF/10mF      ±(3%+5)
Frequency 10/100/1k/10k/100k/1M/10m/40MHz          ±(0.5%+3)
Temperature -50°C~1000°C                                           ±(1%+4)
Special function
Function Description
Auto Range v
ManualRange v
AC ConversionType true RMS
InputProtection v
Auto Shutdown about 10 minutes, can be setand cancel auto shutdown function
Diode Test Can measure the LED work voltage below 3V
Duty Ratio Measurement v
NCV(Live line)Measurement v
Short Circuit Buzzer v
LowVoltageIndicator v
Input Impedance About10MO
Data Hold v
Blue Backlight v
CT Size ?27mm
General features
Function Description
Power Supply AAA1.5VX2
Weight 230g(with battery)
Meter Dimension 213X80X35mm

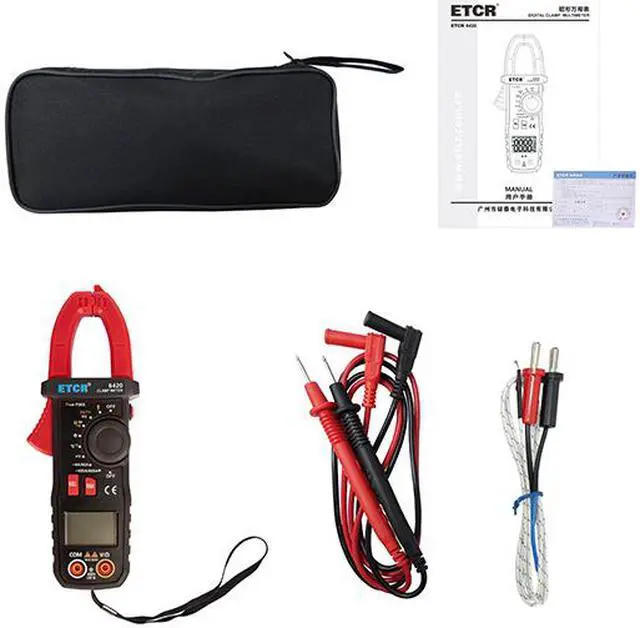

Accessories Meter:1pcs;Pen probe:1set;Temperature sensor:1pcs;Tester Bag:1pcs
