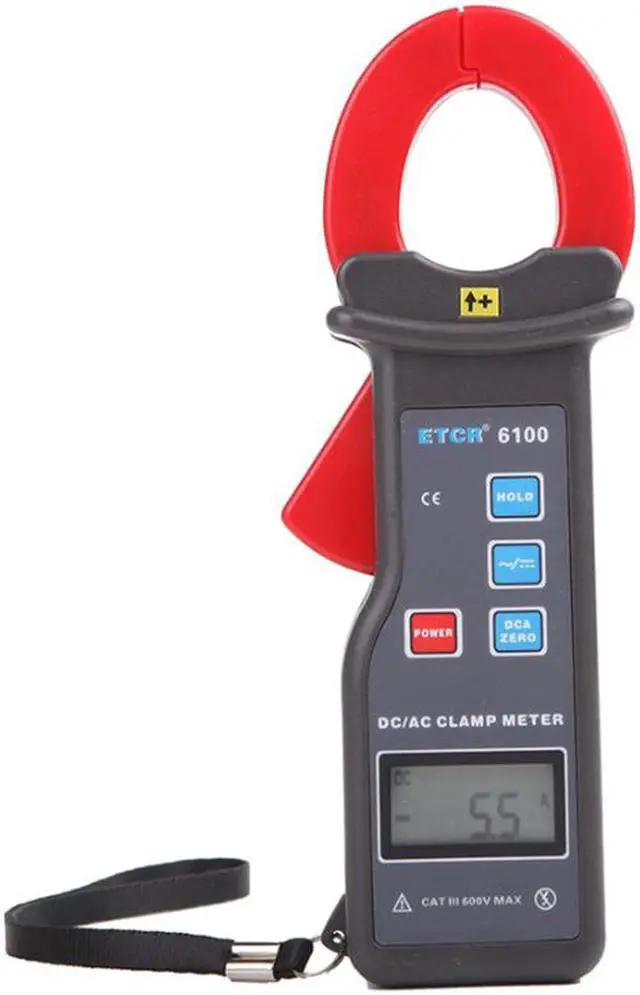

ETCR6100 AC/DC Leakage Current Clamp Meter Tester New

ETCR6100 AC/DC Clamp Current Meter
Product Main Function

1. Measurement of AC/DC current, Range: 0.0A~1000A

2. Data Storage: 99 groups

3. Peak Hold

4. Line Voltage: below 600V

5. CT Size: 30mm x 35mm

ETCR6100 AC/DC Clamp Current Meter suitable for measuring AC, DC leakage current below 600V, range: AC/DC 0.0A~1000A, CT size: 30mmx35mm, especially suitable for places with dense flat cable (power metering system, high-speed rail system, automobile circuit maintenance, etc.). Non-contact current measurement, safe and simple operation.The instrument is small size, high accuracy, performance stable and function perfect, which is one of the necessary tools for electrician safety inspection and maintenance.

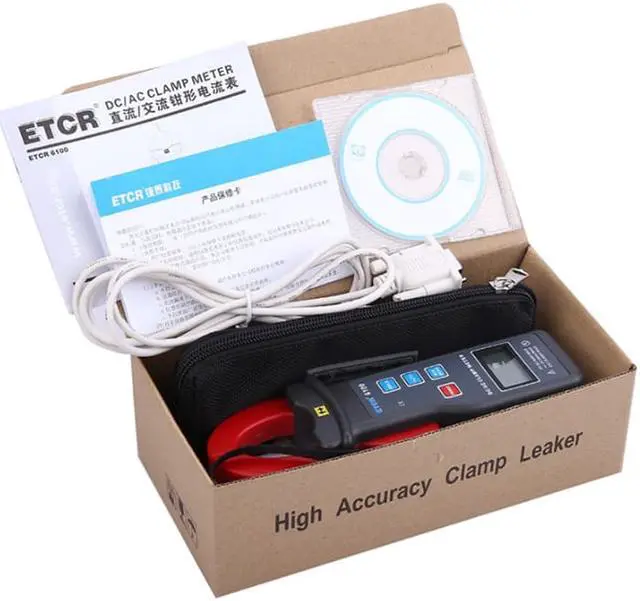

The instrument with data hold, data storage and other functions, can store 99 groups of data, the instrument connect computer by RS232 interface, stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on.


Model ETCR6100
CT Size 30mm×35mm
Range DC/AC 0.0A~1000A
Accuracy ±2%rdg±3dgt
Resolution 0.1A
Meter Size 175mm×70mm×38mm
Data Interface RS232
Meter Weight 200g
Working Current 10mA
Function Measurement of DC current, AC current, peak hold, on-line monitoring
Power Supply 6LR61 9V, continues working 15 hours(Battery not included)
Test Mode Clamp CT, Non-contact measurement
Display Mode 4digits LCD display
LCD Dimension 35mm×21.5mm;display area:32mm×15mm
Sampling Rate About 2 times/s
Frequency AC 45Hz ~ 400Hz
Polar Indication Automatic identification for DC current detecting, display "-" symbol
Wire Position The tested wire should be in the center of the clamp jaw, clamp with off-center position will increase the error for max 1.5%rdg
Shift Automatically
Line Voltage Line measurement below DC 600V
Software Yes, the storage data of the meter can upload to computer by software
Data Storage 99 groups, flashing display FULL symbol indicate storage is full
Peak Hold Peak value capture and hold function, during the testing, long press the HOLD key to display the peak value.
Data Hold Data hold function: DH symbol display
Overflow display Exceed measure range overflow function: OL symbol display
Auto Shut Down 5 Minutes after power on, the meter shuts down automatically without any operation to reduce battery consumption
Battery Voltage While battery voltage decreases to around 7.2V, will display low battery voltage symbol“ ”, and remind to replace the battery
Working Temperature -10? ~ 50?,below 80%rh
Limit Temperature Error -10?~0? and 40?~50?, the maximum increase in error is 2%rdg
Storage Temperature -10? ~60?,below 70%rh
Insulating Strength AC2KV/rms (between the core and outside shell)
Suitable Safety Standard IEC1010-1?IEC1010-2-032?pollution, etc 2?CAT ?(600V)
