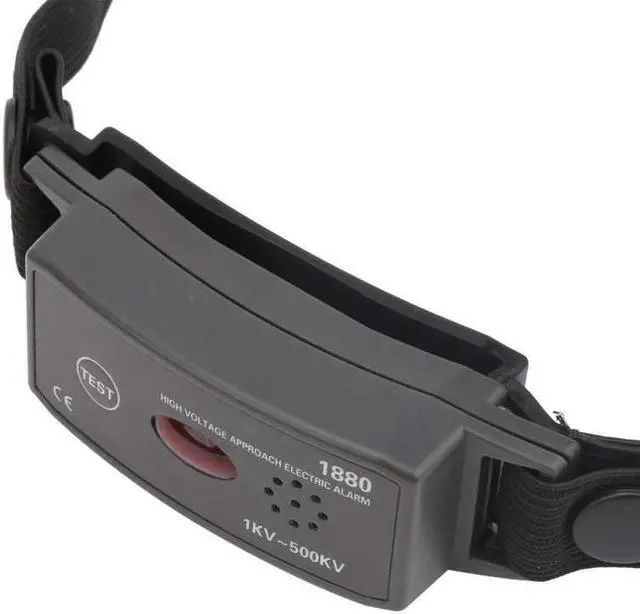

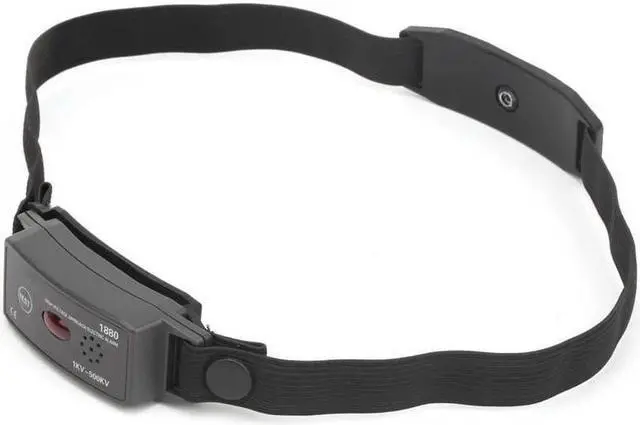

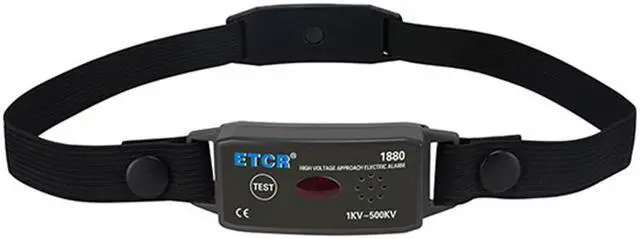

ETCR1880 High Voltage Approach Electric Alarm 1kV~500KV Helmet Type

ETCR1880 High Voltage Approach Electric Alarm 1kV~500KV Helmet Type
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Product Main Function
ETC1880 Series Helmet Type High Voltage Approach Electric Alarm provide a safe, practical and convenient new type high voltage alarm device for close-electric operator.
Alarm Voltage Range : 1kV~500KV(high voltage alarm)
Electricity Testing Mode: Non-contact mode
Detection Mode: Automatic trigger
ETC1880 Series Helmet Type High Voltage Approach Electric Alarm provide a safe, practical and convenient new type high voltage alarm device for close-electric operator. During live electric working, the safe distance between operator and live body should not be closer than the requirement of relevant working regulations. After the operator wearing this alarm, when close to the high voltage charged body for a certain distance, according to the corresponding safe distance of voltage level, the alarm will make out the sound and light alarm to remind the electrical workers to pay attention to safety and avoid high voltage electric shock accidents.
ETC1880 Series Helmet Type High Voltage Approach Electric Alarm develop with two model of high voltage alarm(above 1KV) and low voltage alarm(below 1KV), adopt non-contact induction technology, accurate alarm, power saving and durable, standby time up to 12 months. The alarm with unique automatic trigger detection function to ensure the safety of close-electric workers. The alarms are widely used in electric power, railway, industrial and mining enterprises and other close-electric working places.
Voltage Level and Alarm Distance
Model Voltage Level Alarm Distance
ETCR1880 6.6KV 0.6m
10KV 0.8m
35KV 1.4m
66KV 1.8m
110KV 2.2m
220KV 3.0m
330KV 3.6m
500KV 4.2m
ETCR1880C 40V 5cm
110V 10cm
220V 15cm
600V 40cm
1KV 60cm
Technical Parameters
Function Description
Power Supply CR1632(140mAH)button cell 2PCS
Alarm Voltage Range ETCR1870: 1kV~500KV(high voltage alarm)
ETCR1870C: 40V~1KV(Low voltage alarm)
Working Frequency 50Hz/60Hz
Electricity Testing Mode Non-contact mode
Detection Mode Automatic trigger
Alarm Distance Error ±10cmz(under base condition)
Battery Life Continues working(sound and light alarm):about 24 hours
Standby: about 12 months
Alarm Mode Indicator: LED light visiblity under 8000LX visible light
Buzzer: above 60dB(60CM apart)
Protection Level IP54
Weight 51g
Dimensions 88mmX32mmX30mm
Working Temperature -10?~40?, below 80%rh
