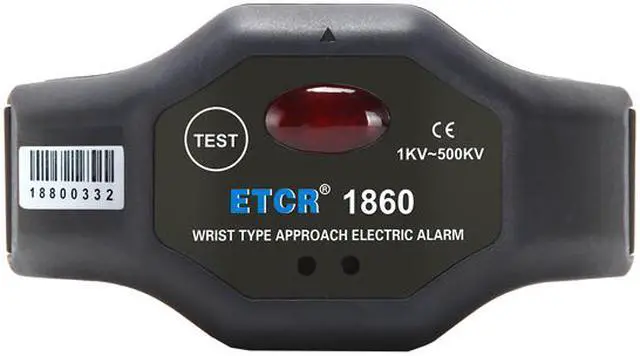

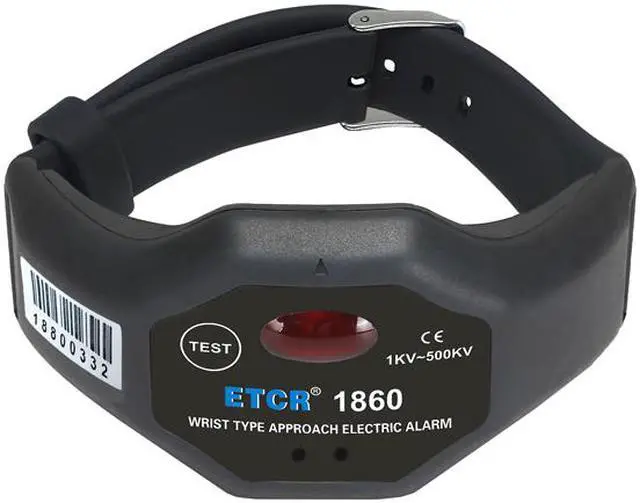

ETCR1860C Wrist Type High Voltage Approach Electric Alarm AC 1KV~500KV

ETCR1860C Wrist Type High Voltage  Approach Electric Alarm AC 1KV~500KV
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
ETCR1860 Wrist Type Approach Electric Alarm provide a safe, practical and convenient new type voltage alarm device for close-electric operator. During live electric working, the safe distance between operator and live body should not be closer than the requirement of relevant working regulations. After the operator wearing this alarm, when close to the high voltage charged body for a certain distance, according to the corresponding safe distance of voltage level, the alarm will make out the sound and light alarm to remind the electrical workers to pay attention to safety and avoid high voltage electric shock accidents.
ETCR1860 Wrist Type Approach Electric Alarm adopt non-contact induction technology, accurate alarm, power saving and durable, standby time up to 12 months. The alarm with unique automatic trigger detection function to ensure the safety of close-electric workers. The alarms are widely used in electric power, railway, industrial and mining enterprises and other close-electric working places
Voltage Level and Alarm Distance
Model Voltage Level Alarm Distance Alarm Distance Error
ETCR1860 1KV   0.10m
6.6kV   0.70m
10kV 0.70m 1.00m
35kV 1.00m 1.60m
66kV 1.50m 2.20m
110kV 1.50m 2.50m
220KV 3.00m 3.50m
330KV 4.00m 4.50m
500KV 5.00m 5.50m
Technical Parameter
Function Near power alarm
power supply 1 CR1632 button battery
Alarm voltage range 1kV~500kV (high voltage alarm)
Alarm distance error ±10cm (23?±1?, 80%Rh, under reference conditions)
working frequency 50Hz/60Hz
Test method Contactless
Detection mode Auto trigger
Battery Life
  Continuous work (sound and light alarm): about 24 hours
Standby time: about 12 months
Alarm method
  Indicator light: LED light visible under 8000XL visible light
Buzzer: 60dB (distance 60CM)
weight About 38g (including battery)
Dimensions 90mmX40mmX35mm
Protection level IP54
Working temperature and humidity -10?~40?; below 80%rh
Storage temperature and humidity -10?~60?; below 70%rh
