ETCR1820 Non-Contact High Voltage Electroscope 110V~500KV

ETCR1820 Non-Contact High Voltage Electroscope 110V~500KV
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!

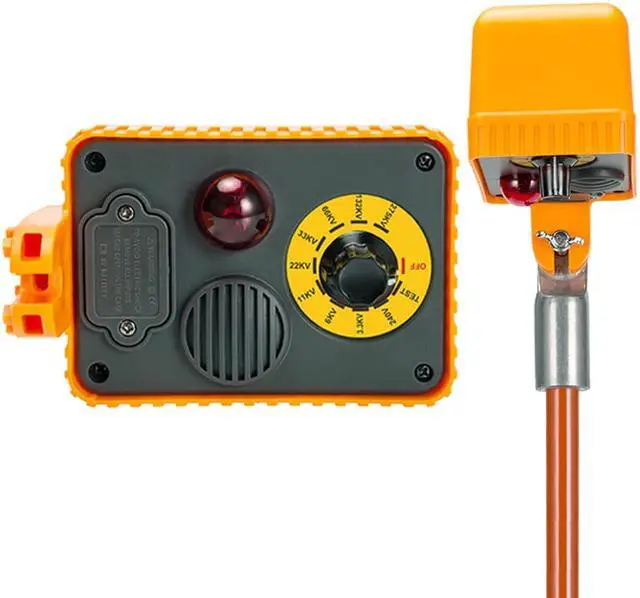

 ETCR1820 Non-Contact High Voltage Electroscope applied to on-site high voltage line electricity testing, identify voltage level of high voltage system, inspect fault of high voltage line, repair the inspect induced voltage of the neon lamp, high voltage sodium lamp, inspect residual high voltage or induced voltage, etc.
Electricity Test Range: 110V~500KV, Electricity Test Level (9 grade) Electricity Test Indication: red flashes LED light indication, "beep - beep - beep" buzzing sound. Protection Level: IP65
Technical Parameters
Function Description
 Function  on-site high voltage line electricity testing, identify voltage level of high voltage system, inspect fault of high voltage line, repair the inspect induced voltage of the neon lamp, high voltage sodium lamp, inspect residual high voltage or induced voltage, etc.
 Power Supply  Zn-Mn dry battery 6F22, 9V
 Voltage Gear  Nine gears
 Electricity TestRange  110V~500KV(optinal)
 Electricity Test Level  380V, 6.6kV, 10kV, 35kV, 66kV, 110kV, 220kV
 Voltage to Earth Display Range   0.1kV~150kV(Voltage to earth)
 Electricity Test Indication  Red flashes LED light indication
 "beep - beep - beep" buzzing sound.
 Self-inspect Function  Turn the knob to "TEST" gear, the indicator light on, and the buzzer will make sound of "beep-".
 Low Battery Voltage Indication  When the detector battery voltage is lower than 7.2V±0.1V, the green power indicator flashes; when the receiver voltage lower than 4.8V±0.1V, low battery voltage symbol “      ” will display and remind to replace battery.
 Protection Level  IP65
 Instrument Weight  Instrument:520g; Package and insulation rod total weight:4.6kg
 Instrument Dimension  300mm×237mm×85mm
 Insulation Rod Length  Max Diameter:Ø38mm; Length:Contraction state 1000mm;Stretched state 4500mm
 Insulation Test  The insulated rod both ends after stretched: AC 220KV/rms ; Receiver, detector: AC 3700V/rms(between the exposure metal and plastic shell).
 Working Temperature And Humidity  -10?~ 40?, below80%rh
 Store Temperature And Humidity  -10?~60?, below70%rh

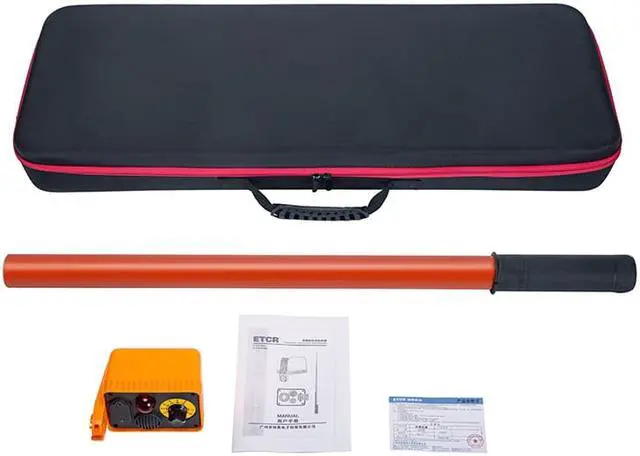

 Accessories  Detector:1PCS; Scalable Insulation Rod:1PCS;Tool Bag: 1PCS
