Automatic duplex scanning features for fast and efficient work
Compatible with scanning to the cloud
Hi-Speed USB 2.0, optional 10/100 Ethernet for versatility
One-touch scanning for ease of use
Overview
Specs
Reviews (1)
WorkForce DS-7500 - Document Scanner - Desktop - 200 dpi -B/W: Up to 40 ppm / 80
Learn more about the Epson America DS-7500 (B11B205321)
Model
Brand
EPSON
Series
WorkForce
Model
DS-7500 (B11B205321)
Scanning
Type
Duplex
Element Type
CCD
Light Source
ReadyScan LED
Scanning Speed
200 dpi B/W: Up to 40 ppm / 80 ipm with ADF Color: Up to 40 ppm / 80 ipm with ADF
300 dpi B/W: Up to 40 ppm / 80 ipm with ADF Color: Up to 40 ppm / 80 ipm with ADF
600 dpi B/W: Up to 8 ppm / 16 ipm with ADF Color: Up to 8 ppm / 16 ipm with ADF
Optical Resolution
Flatbed: 1200 dpi ADF: 600 dpi
Interpolated Resolution
Flatbed: 1200 x 1200 dpi with Micro Step Drive technology ADF: 600 x 600 dpi Micro Step Drive technology
Media Handling
Max. Document Size
Flatbed: 8.50" x 11.70" ADF: 8.50" x 40.00"
Automatic Document Feeder (ADF)
Type: Sheet fed 1-pass , duplex scanning
Capacity: 100 pages (80 g/m2)
Document Sizes: A4, Letter, Legal, B5, A5 Max. Size 8.5" x 40" Min. Size 4" x 6"
Paper Weight: Thickness 50 - 128 g/m2
Ports
USB Ports
USB 2.0
Details
Power Requirements
AC 100 - 120 V or 220 - 240 V, 50 / 60 Hz
Power Consumption
Operating: 45 W (with ADF) Ready: 12 W Sleep: 1.6 W
Compatibility
Operating Systems Supported
Windows 8 Windows 7 Windows Vista Windows XP Windows XP Professional x64 Edition Mac OS X 10.5.x, 10.6.x, 10.7.x, 10.8.x
Features
Features
Capture large, two-sided documents in a single scan - scans documents as small as 4.00" x 6.00" and up to 8.50" x 40.00" via the ADF or 8.50" x 11.70" via the flatbed scanner bed
Achieve remarkable results - 4 line CCD (RGB and black) provides vivid color and crisp, sharp text; included book spine correction eliminates distortion when scanning bound materials
Boost productivity - one-pass, duplex scanning at speeds of 40 ppm / 80 ipm
Work smarter and more efficiently - built-in 100-sheet Automatic Document Feeder, plus auto duplex scanning
Ultrasonic double-feed detector - automatically stops the scan job if two pages have fed together
Convenient, network scanning capabilities - use the optional networking module and included Document Capture Pro software to scan to any PC on the local network
Scan to popular cloud services1 - scan to SharePoint, Evernote, Google Docs and more
Scan to searchable PDF - save scanned documents as PDF, PDF-A or jpeg files, and more
Do more with powerful productivity software - includes EPSON Scan, Document Capture Pro and ABBYYFineReader Sprint OCR
One-touch scanning - create up to 30 user-programmable jobs
Dimensions & Weight
Dimensions
8.50" x 19.40" x 14.10"
Weight
22.50 lbs.
Package Contents
Package Contents

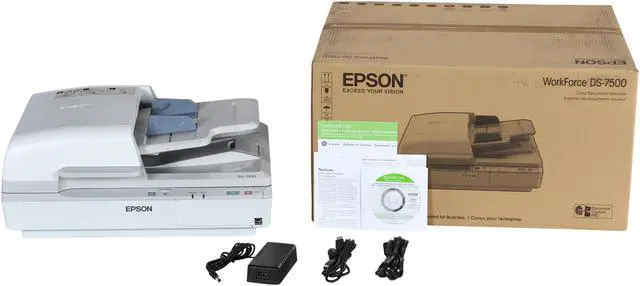

Epson WorkForce DS-7500 Scanner Setup Sheet USB cable Software CD AC adapter and power cable
Additional Information
First Listed on Newegg
November 27, 2012
