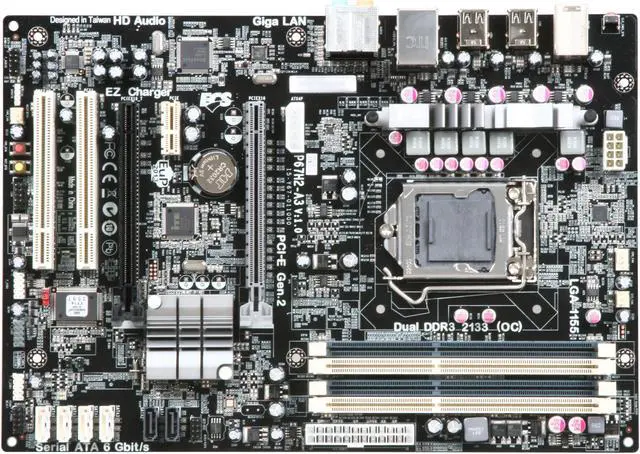

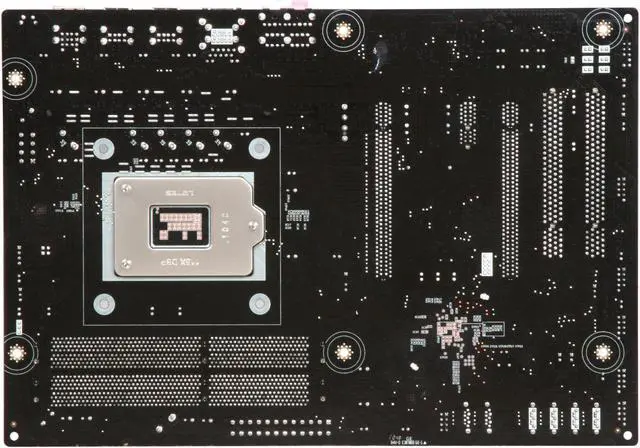

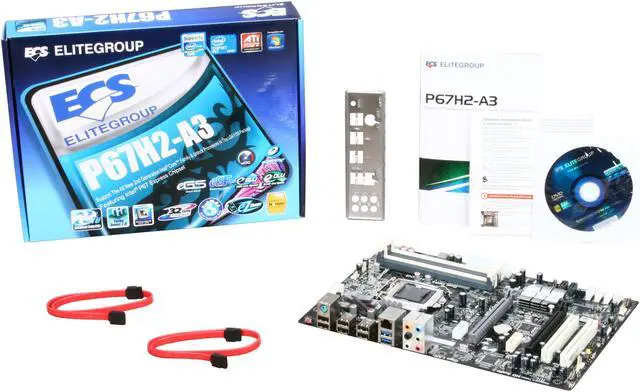

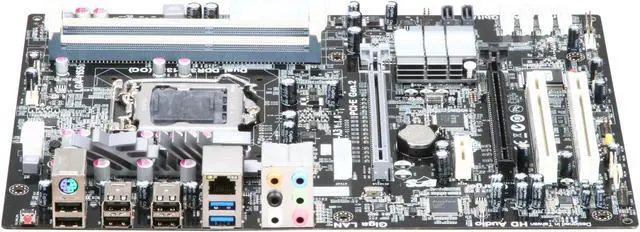

ECS P67H2-A3 LGA 1155 Intel P67 USB 3.0 ATX Intel Motherboard

(16) Write a Review
  • Intel P67
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 2133(OC)/1800(OC)/1600/1333/1066
Specs
Reviews (16)

Learn more about the ECS (EliteGroup) P67H2-A3

Model
Brand ECS
Model P67H2-A3
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Chipsets
Chipset Intel P67
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2133(OC)/1800(OC)/1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 (x16, x 4)
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
PS/2 1
USB 3.0 2 x USB 3.0
USB 1.1/2.0 6 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.27"
Power Pin 24 Pin
Additional Information
First Listed on Newegg January 08, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
