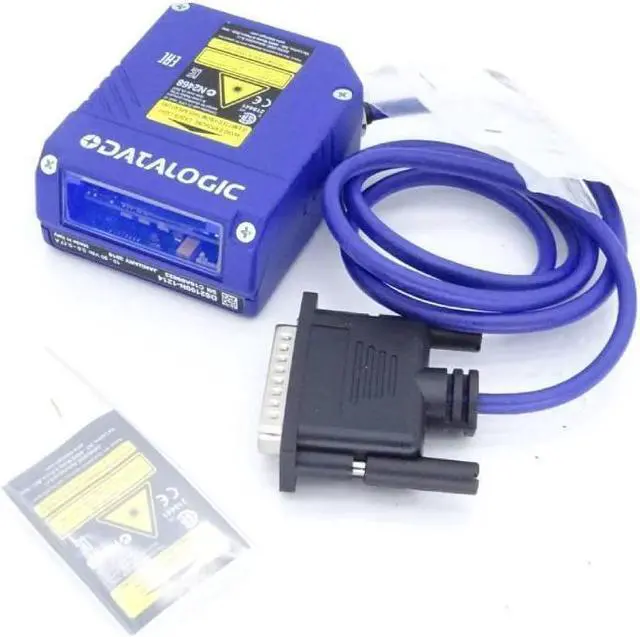

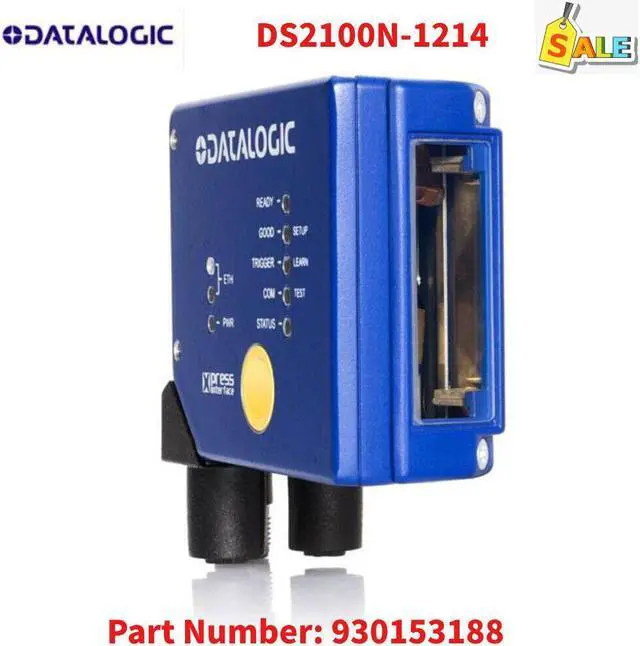

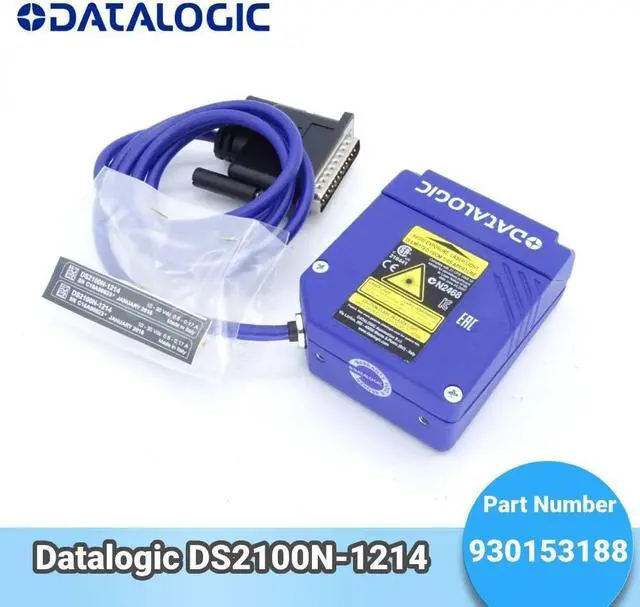

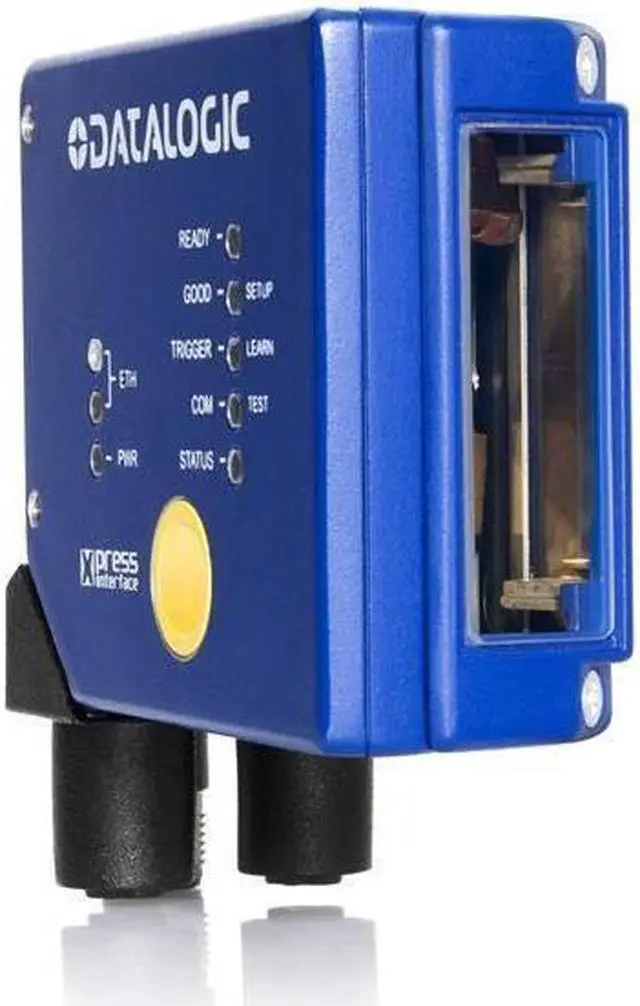

Datalogic DS2100N Barcode Scanner STD-RES, RASTER, HI-PERF, NSC (DS2100N-1214) Part Number: 930153188

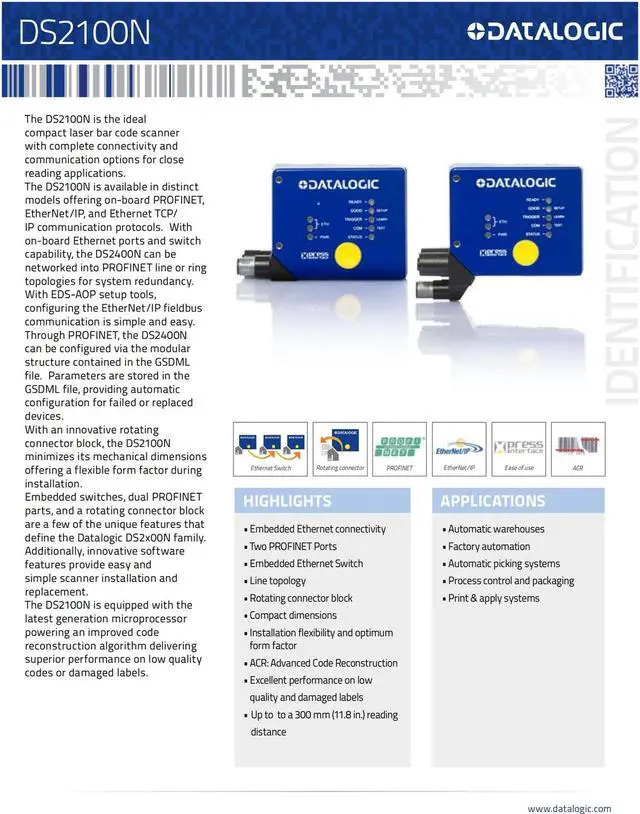

Product Introduction:

The DS2100N is the ideal compact laser bar code scanner with complete connectivity and communication options for close reading applications.

The DS2100N is available in distinct models offering on-board PROFINET, EtherNet/IP, and Ethernet TCP/ IP communication protocols.

With on-board Ethernet ports and switch capability, the DS2400N can be networked into PROFINET line or ring topologies for system redundancy.

With EDS-AOP setup tools, configuring the EtherNet/IP fieldbus communication is simple and easy. Through PROFINET, the DS2400N can be configured via the modular structure contained in the GSDML file.

Parameters are stored in the GSDML file, providing automatic configuration for failed or replaced devices.

With an innovative rotating connector block, the DS2100N minimizes its mechanical dimensions offering a flexible form factor during installation.

Embedded switches, dual PROFINET parts, and a rotating connector block are a few of the unique features that define the Datalogic DS2x00N family.

Additionally, innovative software features provide easy and simple scanner installation and replacement.

The DS2100N is equipped with the latest generation microprocessor powering an improved code reconstruction algorithm delivering superior performance on low quality codes or damaged labels.



Features:

highlights

Embedded Ethernet connectivity

Two PROFINET Ports

Embedded Ethernet Switch

Line topology

Rotating connector block

Compact dimensions

Installation flexibility and optimum form factor

ACR: Advanced Code Reconstruction

Excellent performance on low quality and damaged labels

Up to to a 300 mm ( 11.8 in. ) reading distance



Applications

Automatic warehouses

Factory automation

Automatic picking systems

Process control and packaging

Print & apply systems



Compatible Part Number: 930153188
