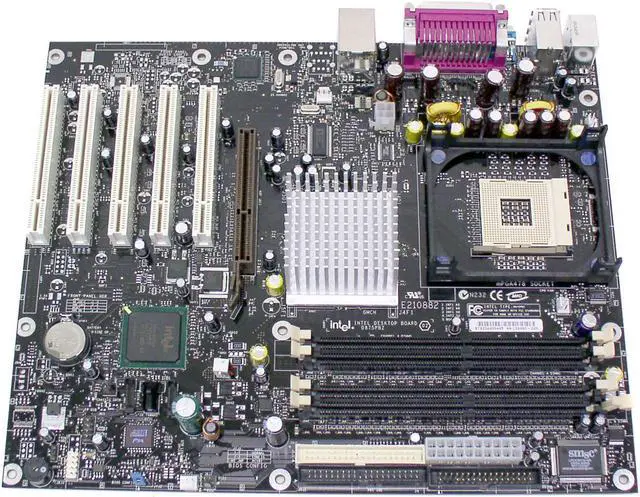

Main image of Intel D875PBZLK FMB 1.5 Socket 478 Intel 875P ATX Intel Motherboard - OEM

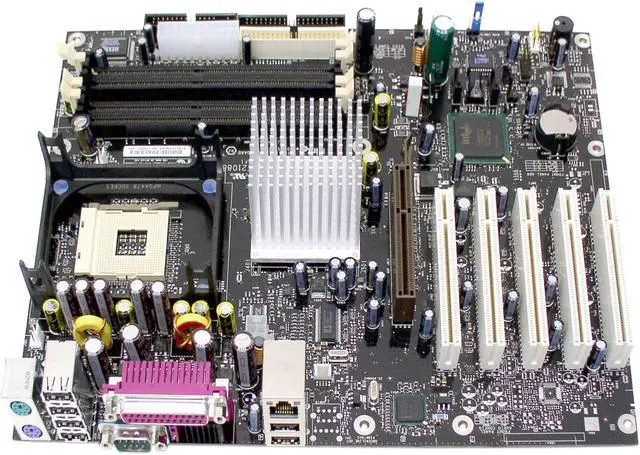

Alt view image 2 of 4 - Intel D875PBZLK FMB 1.5 Socket 478 Intel 875P ATX Intel Motherboard - OEM

Alt view image 3 of 4 - Intel D875PBZLK FMB 1.5 Socket 478 Intel 875P ATX Intel Motherboard - OEM

Alt view image 4 of 4 - Intel D875PBZLK FMB 1.5 Socket 478 Intel 875P ATX Intel Motherboard - OEM

Shop All Intel Products

Intel D875PBZLK FMB 1.5 Socket 478 Intel 875P ATX Intel Motherboard - OEM

(3) Write a Review

Intel 875P
Pentium 4 Prescott / Celeron D
DDR 400

Specs

Reviews (3)

Learn more about the Intel D875PBZLK FMB 1.5

Model
Brand	Intel
Model	D875PBZLK FMB 1.5

Supported CPU
CPU Socket Type	Socket 478
CPU Type	Pentium 4 Prescott / Celeron D
FSB	800/533 MHz
Supported CPU Technologies	Hyper-Threading Technology

Chipsets
Chipset	Intel 875P
South Bridge	Intel ICH5R

Onboard Video
Onboard Video Chipset	None

Memory
Number of Memory Slots	4x184pin
Memory Standard	DDR 400
Maximum Memory Supported	4GB
Channel Supported	Dual Channel

Expansion Slots
AGP Slots	1 x AGP 4X / 8X
PCI Express x16	None
PCI Slots	5 x PCI Slots

Storage Devices
PATA	2 x ATA100 4 Dev. Max
SATA RAID	0/1

Onboard Audio
Audio Chipset	None

Onboard LAN
LAN Chipset	Intel 82547EI
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	2 x PS/2 / 6 x USB 2.0/1.1
PS/2	2
COM	1
LPT	1
USB 1.1/2.0	6 x USB 2.0

Internal I/O Connectors
Onboard USB	2 x USB 2.0

Physical Spec
Form Factor	ATX
Dimensions (W x L)	11.5" x 9.6"

Features
Features	Hardware management ASIC Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Four fan connectors Four fan sense inputs used to monitor fan activity Fan speed control Support for PCI Local Bus Specification Revision 2.2 Suspend to RAM support Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports

Additional Information
First Listed on Newegg	December 03, 2003
