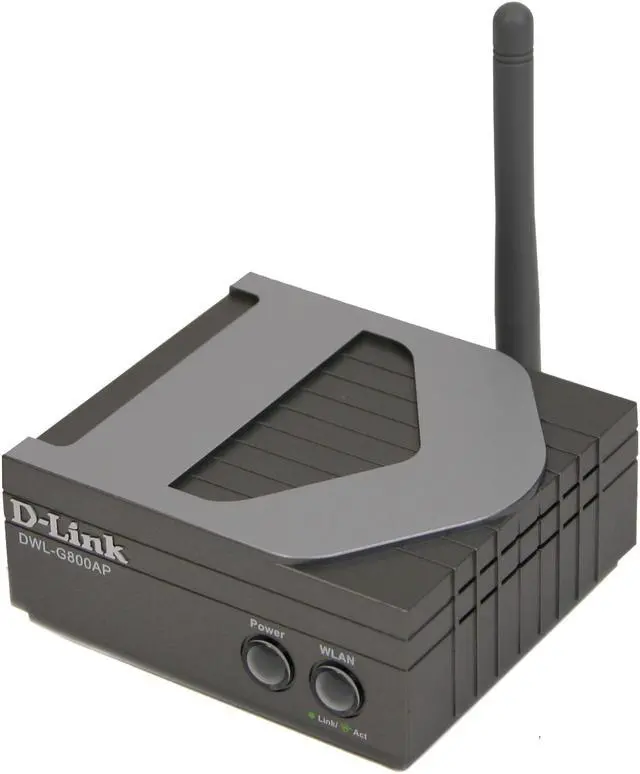

D-Link DWL-G800AP High-Speed 2.4GHz Wireless Range Extender
- Up to 54Mbps Wireless Data Rates
- IEEE 802.3/3u, IEEE 802.11b/g
- Ethernet Port
- 2.4 GHz - 2.4835 GHz
+
+
Specs
Reviews (5)
Learn more about the D-Link DWL-G800AP
| Brand | D-Link |
|---|---|
| Model | DWL-G800AP |
| Standards | IEEE 802.3/3u, IEEE 802.11b/g |
|---|---|
| Device Management | Web-based – Internet Explorer v.6 or later; Netscape Navigator v.6 or later; or other Java- enabled browsers. |
| Wireless Data Rates | Up to 54Mbps |
| Security | 64/128-bit WEP WPA —Wi-Fi Protected Access (64/128-bit WEP with TKIP, MIC, IV Expansion, Shared Key Authentication) WPA-PSK 802.1x |
| Frequency Band | 2.4 GHz - 2.4835 GHz |
| Antenna | 1.0dB gain with reverse SMA connector |
| Transmitted Power | 15 dBm (32 mW) ± 2dB |
| Receiver Sensitivity | 54Mbps OFDM, 10% PER,-68dBm) 48Mbps OFDM, 10% PER,-68dBm) 36Mbps OFDM, 10% PER,-75dBm) 24Mbps OFDM, 10% PER,-79dBm) 18Mbps OFDM, 10% PER,-82dBm) 12Mbps OFDM, 10% PER,-84dBm) 11Mbps CCK, 8% PER,-82dBm) 9Mbps OFDM, 10% PER,-87dBm) 6Mbps OFDM, 10% PER,-88dBm) 5.5Mbps CCK, 8% PER,-85dBm) 2Mbps QPSK, 8% PER,-86dBm) 1Mbps BPSK, 8% PER,-89dBm) |
| Operating Range | Indoor: Up to 328 feet, Outdoor: Up to 1312 feet |
| Modulation | Orthogonal Frequency Division Multiplexing (OFDM) Complementary Code Keying (CCK) |
| Interface | Ethernet Port |
| WAN Ports | 1 x 10/100M |
| Power Supply | Ext. Power Supply DC 5V, 2.0A |
| Temperature | 0°C - 55°C (32°F - 131°F) |
|---|---|
| Humidity | 95% Maximum, Non-Condensing |
| Dimensions | 5.5" x 4.5" x 1.0" |
|---|---|
| Weight | 0.44 lbs. |
| Features | 2 Operation Modes: Access Point & Repeater 802.11b Compatible when used as an Access Point |
|---|
| First Listed on Newegg | September 06, 2022 |
|---|
