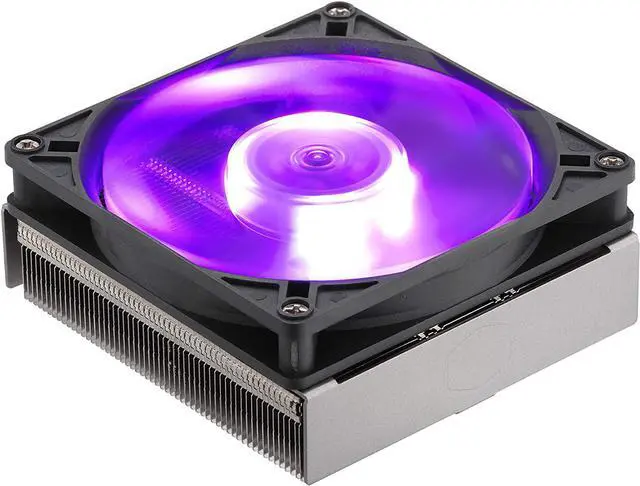

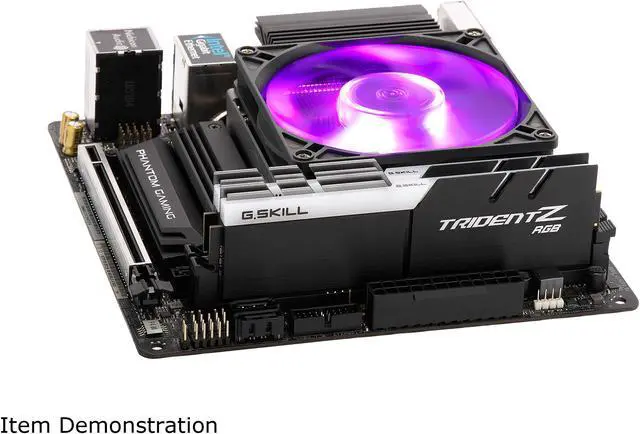

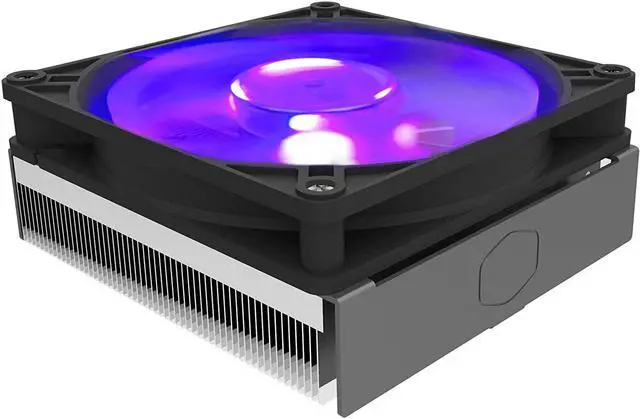

- The MasterAir G200P is a 39.4 mm low-profile CPU cooler designed for small form factor cases and compact PC builds. Built with a powerful 92mm squared PWM fan to maximize top-down cooling, the G200P features a wide fan speed range that is fine tuned for maximum airflow, overall cooling performance or silent operation.
The RGB fan is compatible with all RGB-certified motherboards and includes a wired, RGB LED controller, allowing full-color customization.
Features
RGB LED Controller - The wired RGB LED Controller allows for customizable colors and effects with just the touch of a button.

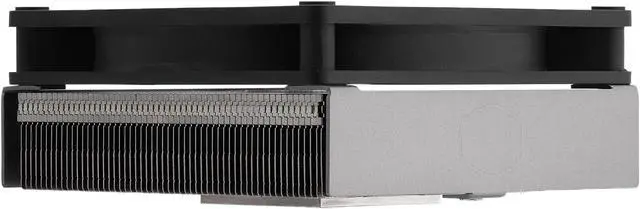

Designed for Small Form Factor Cases - The ultra-low-profile heat sink measures 39.4 mm overall - the ideal size for small form factor PC builds.

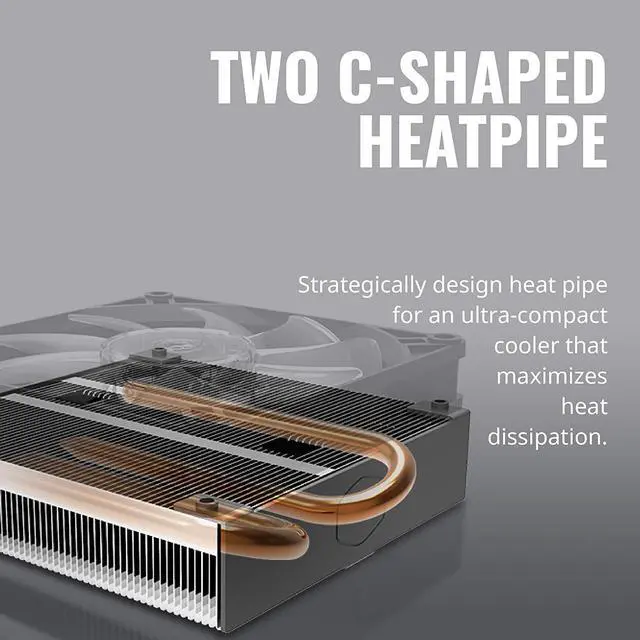

Two C-Shaped Heat Pipe Design - Strategically shaped heat pipe design for an ultra-compact cooler that maximizes heat dissipation.

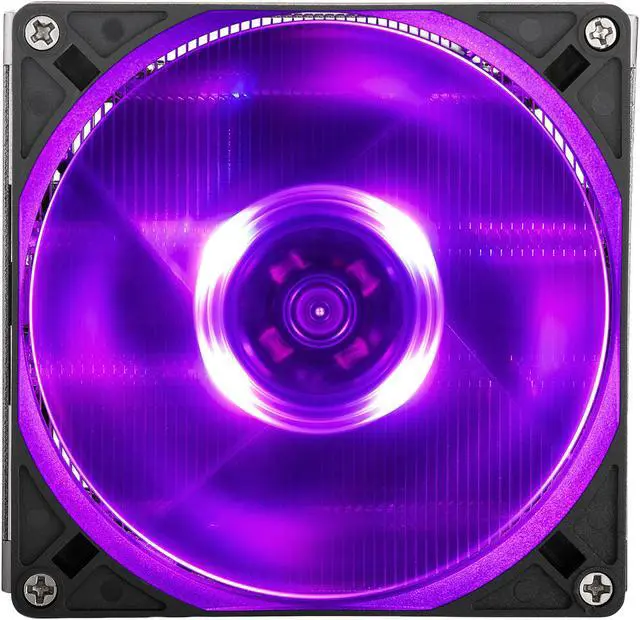

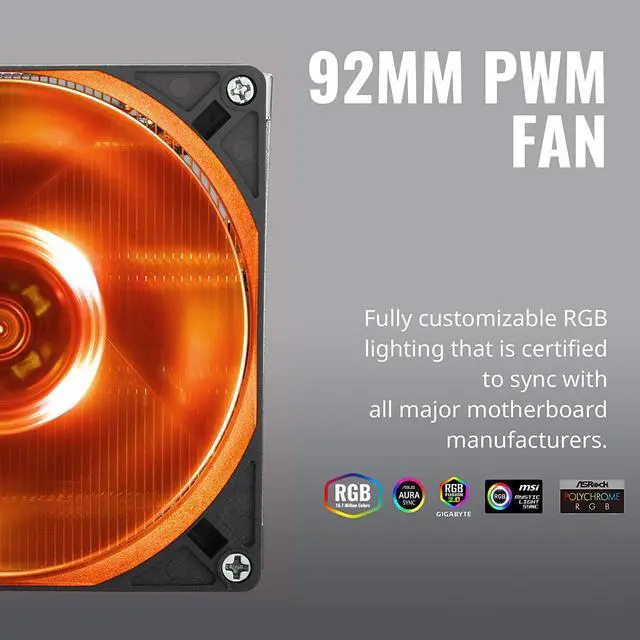

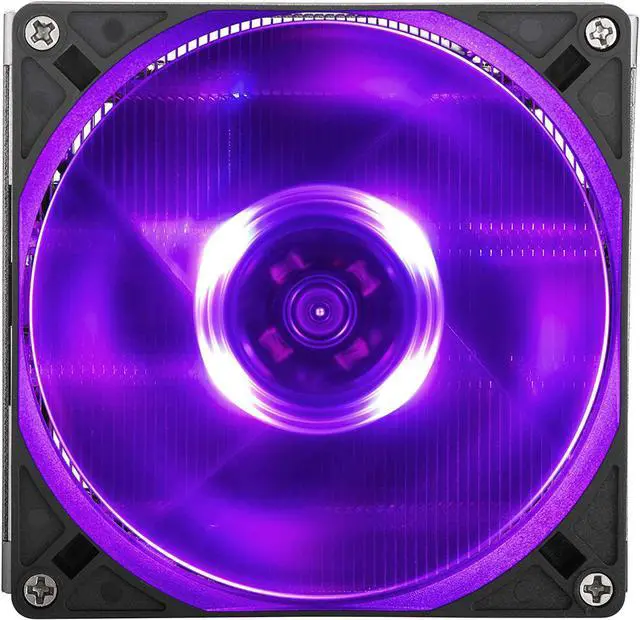

92mm PWM Fan with RGB Lighting - Wide speed range PWM fan that comes with RGB LED lighting

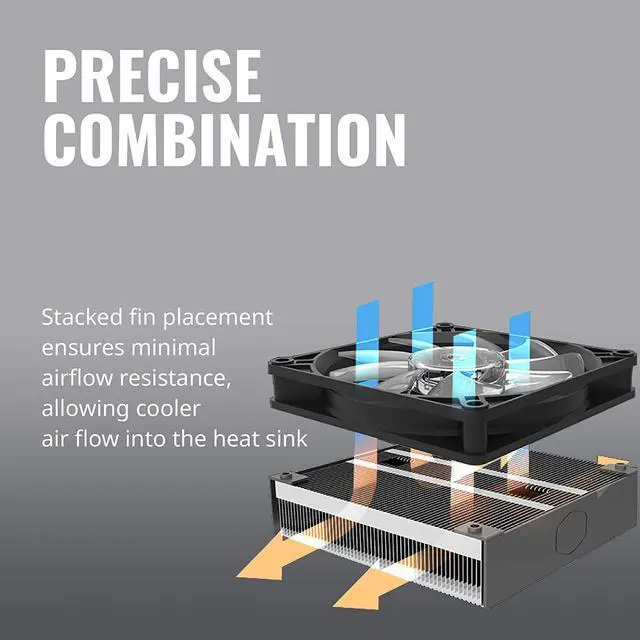

Precise Combination of Air Flow and Heatsink - Stacked fin placement ensures minimal airflow resistance, allowi. ng cooler air flow into the heatsink
Learn more about the Cooler Master MAP-G2PN-126PC-R1
ModelBrand | COOLER MASTER |
---|
Series | MasterAir |
---|
Model | MAP-G2PN-126PC-R1 |
---|
DetailsType | Fan & Heatsinks |
---|
Fan Size | 92mm |
---|
CPU Socket Compatibility | Intel LGA 1200 / 1156 / 1155 / 1151 / 1150
AMD Socket AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 |
---|
RPM | 800 - 2,600 RPM (PWM) +/- 10% |
---|
Air Flow | 35.5 CFM (Max) |
---|
Noise Level | 6 - 28 dBA |
---|
Power Connector | 4 Pin |
---|
Color | Black |
---|
LED | RGB |
---|
Heatsink Material | 2 Heat Pipes, Aluminum Fins, Copper Plate |
---|
Dimensions & WeightMax CPU Cooler Height | 39.4 mm |
---|
Fan Dimensions | 92.00 x 92.00 x 15.40 mm (3.60 x 3.60 x 0.60 inch) |
---|
Heatsink Dimensions | 95.00 x 92.00 x 24.00 mm (3.70 x 3.60 x 1.00 inch) |
---|
Weight | 281g / 0.62 lb |
---|
FeaturesFeatures | Designed for Small Form Factor Cases - The ultra-low-profile heat sink measures 39.4mm (1.55 in.) overall - the ideal size for small form factor PC builds.
Two C-shaped Heat Pipe Design - Strategically shaped heat pipe design for an ultra-compact cooler that maximizes heat dissipation.
Precise Combination of Air Flow And Heatsink - Stacked fin placement ensures minimal airflow resistance, allowing cooler air flow into the heat sink.
92mm PWM Fan with RGB Lighting - Wide speed range PWM fan that comes with RGB LED lighting.
RGB Led Controller - The wired RGB LED controller allows for customizable colors and effects with just the touch of a button.
Universal Mounting - Versatile all-in-one mounting solution for Intel LGA 115x and AMD platforms. |
---|

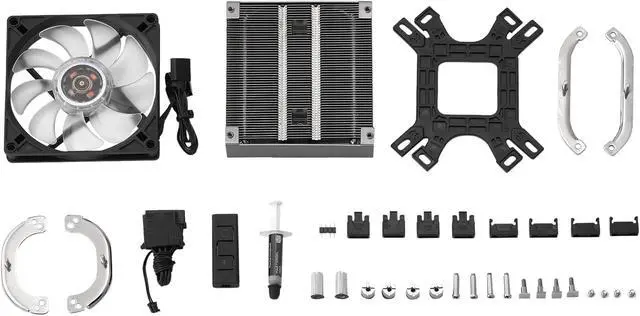

Package ContentsPackage Contents | 1 x CPU Cooler Unit 1 x RGB Controller 1 x Mounting Pack 1 x MasterGel Pro Thermal Paste (0.5g Syringe) 1 x User Manual |
---|
Additional InformationDate First Available | January 06, 2020 |
---|
