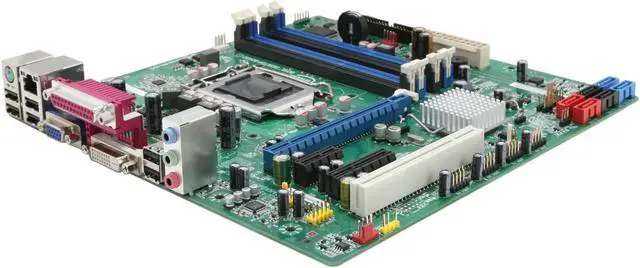

Intel BOXDQ67OWB3 LGA 1155 Intel Q67 Micro ATX Intel Motherboard

(1) Write a Review
  • Intel Q67
  • Core i7 / i5 / i3 / Pentium (LGA1155)
  • DDR3 1333/1066
Specs
Reviews (1)

Learn more about the Intel BOXDQ67OWB3

Model
Brand Intel
Model BOXDQ67OWB3
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 / Pentium (LGA1155)
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel Q67
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x4 1 x PCI Express x4
PCI Express x1 1 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC888S
Audio Channels 8 (5.1+2) channels
Onboard LAN
LAN Chipset Intel 82579LM
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 / 6 x USB 2.0/1.1
PS/2 1
LPT 1
Video Ports D-Sub + DVI
USB 1.1/2.0 6 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 8 x USB 2.0
Other Connectors Internal mono speaker header
Processor fan header
12 V internal power connector (ATX12V)
Serial port header
Chassis intrusion header
Diskette drive connector
Front chassis fan header
T Main power connector (2 x 12)
S/PDIF header
Rear chassis fan header
Intel Fast Call for Help (Intel FCFH) header
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Features
Features Powered by the 2nd generation Intel Core vPro processor family, Intel Desktop Board DQ67OW enables seamless PC Remote Management with the new Intel Active Management Technology (Intel AMT) 7.0.

Based on the latest Intel Q67 Express Chipset, Intel Desktop Board DQ67OW offers onboard data protections with RAID and Intel Trusted Platform Module (Intel TPM). Peripherals that require parallel, floppy, PS/2 connectors will find a perfect home on Intel Desktop Board DQ67OW that offers legacy connectivity flexibilities.
Additional Information
First Listed on Newegg May 17, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
