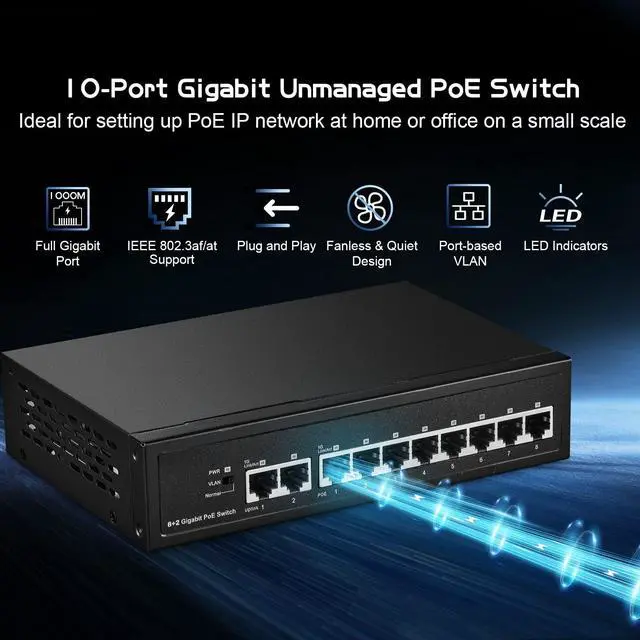

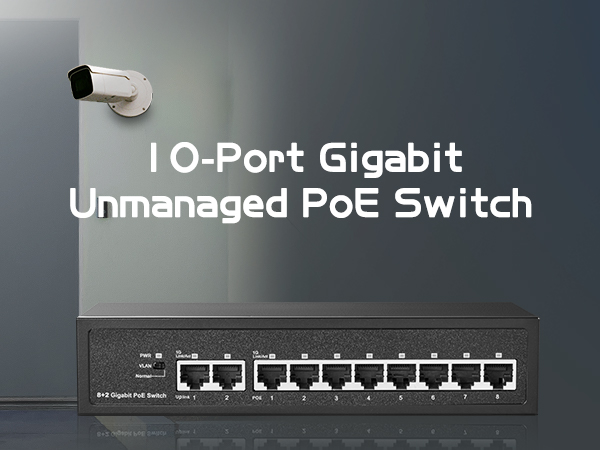

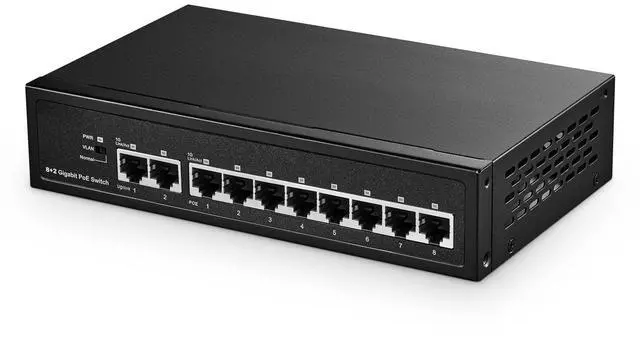

10-Port gigabit PoE switch is a cost-effective network expansion device with PoE extension features to deliver stable network performance. The switch compatible with IEEE802.3af/at PoE standard, the 8 PoE port can provide a total power output of 120W to connect more IP cameras or APs.

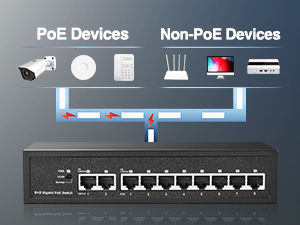

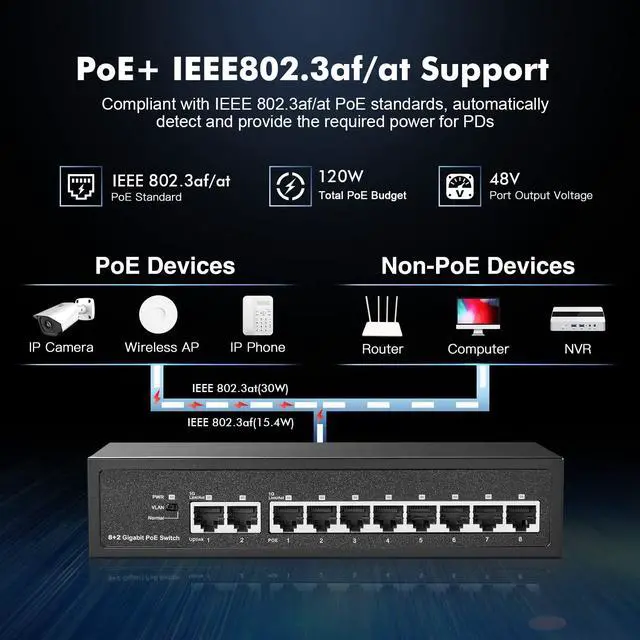

Smart PoE+
Compatible with IEEE802.3af/at PoE standards, the switch can provide a total power output of 120W, up to 30W per port, automatic detecte PoE devices.
Full Gigabit Ports
The switch supports speeds ranging from 10Mbps to 1Gbps. your network devices can run at their designated speeds without any limitations.

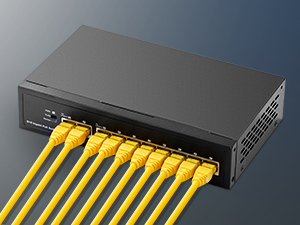

plug and Play
Unmanaged gigabit PoE switch, no configuration required. Simply plug a device into the network. It automation begins.

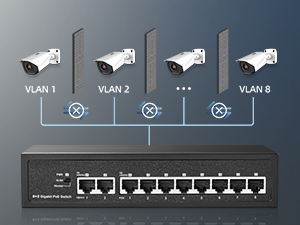

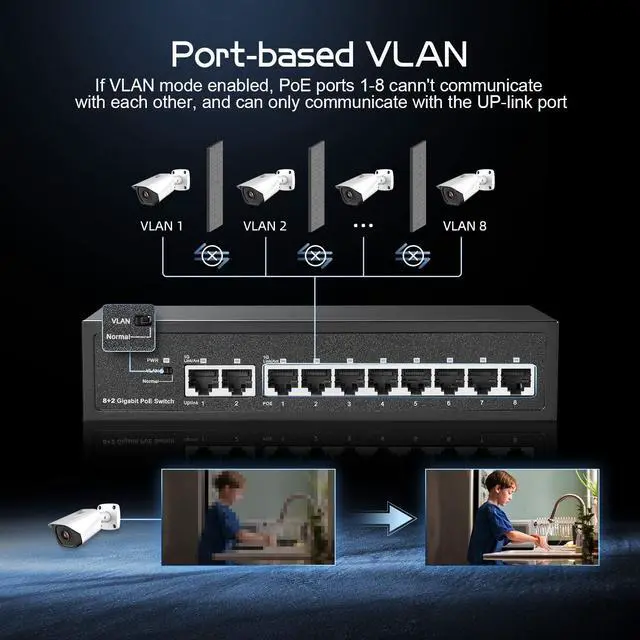

Port-based VLAN
With port-based VLAN feature, Ports 1 to 8 are isolated and communicate with the upstream interface. Improve stable network performance

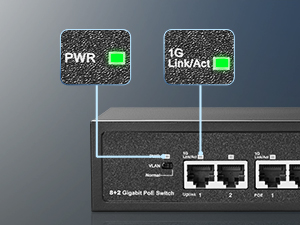

LED Indicator
System status and speed can be determined through the activity of the LEDs on the switch.

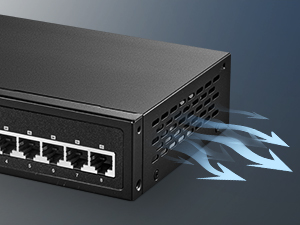

Fanless and Noiseless
This is a silent and perfectly noiseless gigabit PoE switch. All the internal hardware is passively cooled.

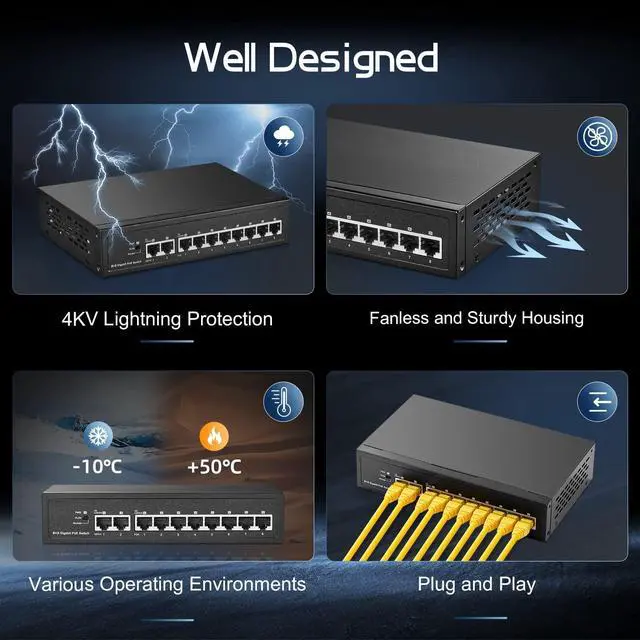

Lightning Protection
There are specialized surge protection units for the PoE switches which helps in cutting the supply off.

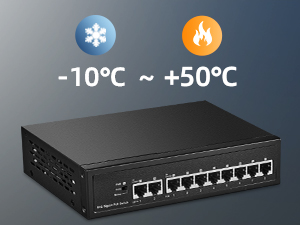

Various Operating Environments
The switch is designed to operate in severe environments and in temperatures ranging from –10°C to +50°C (14°F to 131°F).
Technical Parameter
Product Comparison
 10-Port 1G PoE Switch |  5-Port 1G PoE Switch |  4x1G+1x2.5G Switch |  5-Port 2.5G Switch |  8-Port 2.5G Switch |  10-Port 1G Fiber Switch |  8-Port 10G Switch | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Ethernet Port | 8x1G PoE + 2x1G RJ45 | 4x1G PoE + 1x1G RJ45 | 4x1G RJ45 + 1x2.5G RJ45 | 5x2.5G RJ45 | 8x2.5G RJ45 | 8x1G SFP + 2x1G RJ45 | 8x10G SFP+ |
PoE Support | ? | ? | ? | ? | ? | ? | ? |
Management Support | ? | ? | ? | ? | ? | ? | ? |
Switching Capacity | 20Gbps | 10Gbps | 13Gbps | 80Gbps | 80Gbps | 32Gbps | 160Gbps |
Power | 52V/2.3A (Built-in power) | 52V/1.25A (External power) | 5V/1A (External power) | 12V/2A (External power) | 12V/2A (External power) | 12V/2A (External power) | 12V/2A (External power) |
Size | 200*119*44.5mm | 123*70*23mm | 123*70*23mm | 160*115*33mm | 223*103*28mm | 225*105*35mm | 223*103*28mm |
Weight | 0.7kg | 0.5kg | 0.5kg | 0.6kg | 0.7kg | 0.6kg | 0.71kg |
Extend Function Support | ? | ? | ? | ? | ? | ? | ? |
10-Port gigabit PoE switch is a cost-effective network expansion device with PoE extension features to deliver stable network performance. The switch compatible with IEEE802.3af/at PoE standard, the 8 PoE port can provide a total power output of 120W to connect more IP cameras or APs.
Smart PoE+
Compatible with IEEE802.3af/at PoE standards, the switch can provide a total power output of 120W, up to 30W per port, automatic detecte PoE devices.
Full Gigabit Ports
The switch supports speeds ranging from 10Mbps to 1Gbps. your network devices can run at their designated speeds without any limitations.
plug and Play
Unmanaged gigabit PoE switch, no configuration required. Simply plug a device into the network. It automation begins.
Port-based VLAN
With port-based VLAN feature, Ports 1 to 8 are isolated and communicate with the upstream interface. Improve stable network performance
LED Indicator
System status and speed can be determined through the activity of the LEDs on the switch.
Fanless and Noiseless
This is a silent and perfectly noiseless gigabit PoE switch. All the internal hardware is passively cooled.
Lightning Protection
There are specialized surge protection units for the PoE switches which helps in cutting the supply off.
Various Operating Environments
The switch is designed to operate in severe environments and in temperatures ranging from –10°C to +50°C (14°F to 131°F).
Technical Parameter
| Model | G10-082GP |
|---|---|
| Ethernet Port | 8*10M/100M/1G PoE port + 2*10M/100M/1G Uplink port |
| Bandwidth | 20Gbps |
| Pack forward rate | 14.88Mpps |
| MAC address | 2K |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af(15.4W), IEEE802.3at(30W) |
| Power Pin | 1/2(+), 3/6(-) |
| Network Medium | 10Base-T : Cat3, 4, 5 or above UTP(=100m), 100Base-TX : Cat5 or above UTP(=100m), 1000Base-TX : Cat5 or above UTP(=100m) |
| Working Environment | Working Temperature: -10~50°C, , Storage Temperature: -40~70° C Working Humidity: 10%~90%, non-condensing, Storage Temperature: 5%~90%, non-condensing |

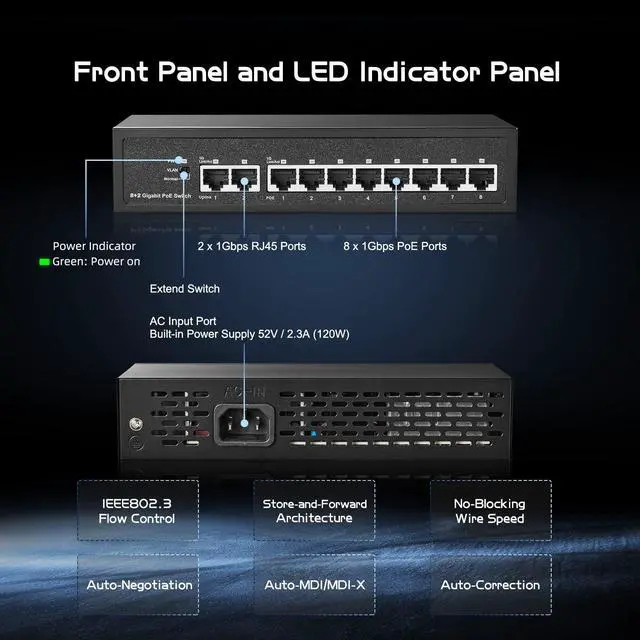

| Indicator | PWR (Power), 1-8 Green Light (Link&Data), PWR On: Powered on, Off: Powered off. 1-5 Green Light (Link&Data) On: Link normal, Off: Link blocked, Flashing: Data transmitting |
| DIP Mode | VLAN: Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default: Normal mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive |
| Structure Size | Product size: 200*119*44.5mm, Net weight: 0.7KG, Gross weight: 1KG |
| Power Voltage | Input voltage :AC100-240V, Power supply: 52V/2.3A (120W) |
| Packing List | Switch 1 PC, Power cord 1 PC, User manual 1 PC |
Product Comparison
10-Port 1G PoE Switch | 5-Port 1G PoE Switch | 4x1G+1x2.5G Switch | 5-Port 2.5G Switch | 8-Port 2.5G Switch | 10-Port 1G Fiber Switch | 8-Port 10G Switch |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Ethernet Port | ||||||
| 8x1G PoE + 2x1G RJ45 | 4x1G PoE + 1x1G RJ45 | 4x1G RJ45 + 1x2.5G RJ45 | 5x2.5G RJ45 | 8x2.5G RJ45 | 8x1G SFP + 2x1G RJ45 | 8x10G SFP+ |
| PoE Support | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Management Support | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Switching Capacity | ||||||
| 20Gbps | 10Gbps | 13Gbps | 80Gbps | 80Gbps | 32Gbps | 160Gbps |
| Power | ||||||
| 52V/2.3A (Built-in power) | 52V/1.25A (External power) | 5V/1A (External power) | 12V/2A (External power) | 12V/2A (External power) | 12V/2A (External power) | 12V/2A (External power) |
| Size | ||||||
| 200*119*44.5mm | 123*70*23mm | 123*70*23mm | 160*115*33mm | 223*103*28mm | 225*105*35mm | 223*103*28mm |
| Weight | ||||||
| 0.7kg | 0.5kg | 0.5kg | 0.6kg | 0.7kg | 0.6kg | 0.71kg |
| Extend Function Support | ||||||
| ? | ? | ? | ? | ? | ? | ? |
