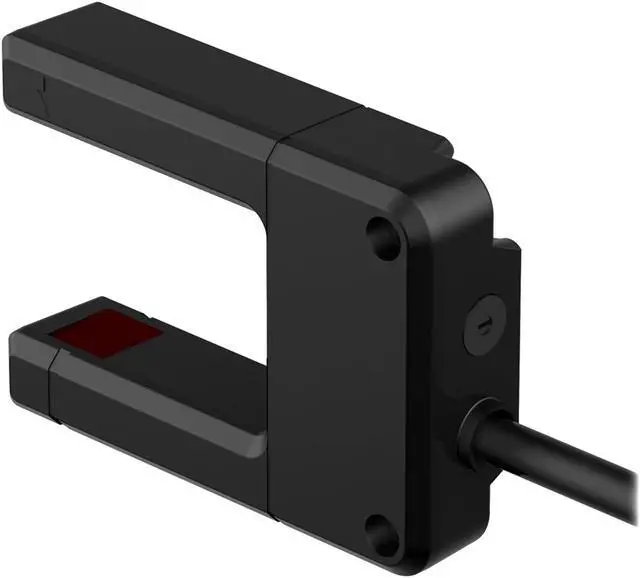

BANNER SL30VB6V Sensor New
- BANNER SL30VB6V Sensor New
+
+
Overview
Specs
Reviews
SL Series: Slot Sensor
Slot width: 30 mm; Input: 10-30V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) cable
Part Number: 56565
Cable Length (m) 2
Sensing Mode (Detailed) Emitter/Receiver Pair
Housing Style Slot
Primary Housing Material Thermoplastic
Max Sensing Range (mm) 30
Slot Depth/Array Length (mm) 45
Connection Cable
Minimum Object Detection (mm) 2
Quick Disconnect Type No QD
Outputs Bipolar (NPN & PNP)
Slot Overall Depth (mm) 52
Slot Overall Depth (mm) 72
Number of Pins 5
Power Supply/Supply Voltage 10-30 V dc
Output response time (ms) 1
Repeatability (µs) 250
Adjustments Potentiometer
Lens Material Acrylic
Special Feature: Remote Teach No
Operation Light/Dark Operate
Indicator LEDs
Max Op. Temperature (°C) 70
Min Op. Temperature (°C) -40
Max Op. Relative Humidity (%) 90% @ 50°C
IP Rating IP67
NEMA Rating NEMA 6
Minimum Object Detection [mm] 2
Slot width: 30 mm; Input: 10-30V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) cable
Part Number: 56565
Cable Length (m) 2
Sensing Mode (Detailed) Emitter/Receiver Pair
Housing Style Slot
Primary Housing Material Thermoplastic
Max Sensing Range (mm) 30
Slot Depth/Array Length (mm) 45
Connection Cable
Minimum Object Detection (mm) 2
Quick Disconnect Type No QD
Outputs Bipolar (NPN & PNP)
Slot Overall Depth (mm) 52
Slot Overall Depth (mm) 72
Number of Pins 5
Power Supply/Supply Voltage 10-30 V dc
Output response time (ms) 1
Repeatability (µs) 250
Adjustments Potentiometer
Lens Material Acrylic
Special Feature: Remote Teach No
Operation Light/Dark Operate
Indicator LEDs
Max Op. Temperature (°C) 70
Min Op. Temperature (°C) -40
Max Op. Relative Humidity (%) 90% @ 50°C
IP Rating IP67
NEMA Rating NEMA 6
Minimum Object Detection [mm] 2
