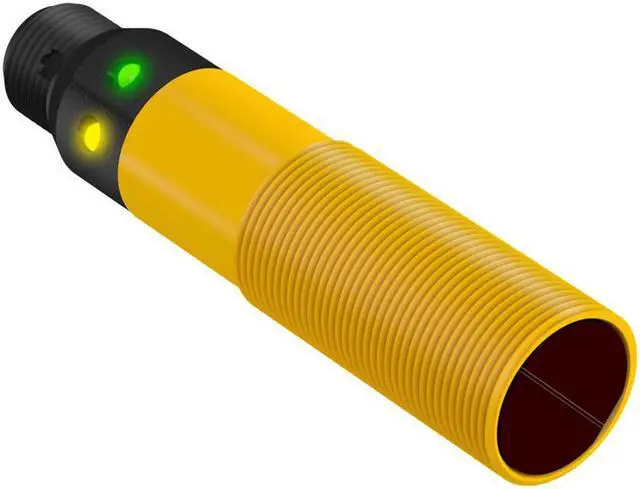

BANNER S18SN6LQ Epoxy Encapsulated Barrel-Mount Sensor New
- BANNER S18SN6LQ Epoxy Encapsulated Barrel-Mount Sensor New
+
+
Overview
Specs
Reviews
EZ-BEAM S18 Series: Retro
Range: 2 m; Input: 10-30 V dc
Output: Complementary NPN
Euro M12 4-pin Integral QD
Part Number: 29511
Sensing Beam Infrared LED
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Non-Polarized
Housing Style Barrel
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 2000
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) 3
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 750
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67, IP69
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Range: 2 m; Input: 10-30 V dc
Output: Complementary NPN
Euro M12 4-pin Integral QD
Part Number: 29511
Sensing Beam Infrared LED
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Non-Polarized
Housing Style Barrel
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 2000
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) 3
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 750
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67, IP69
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
