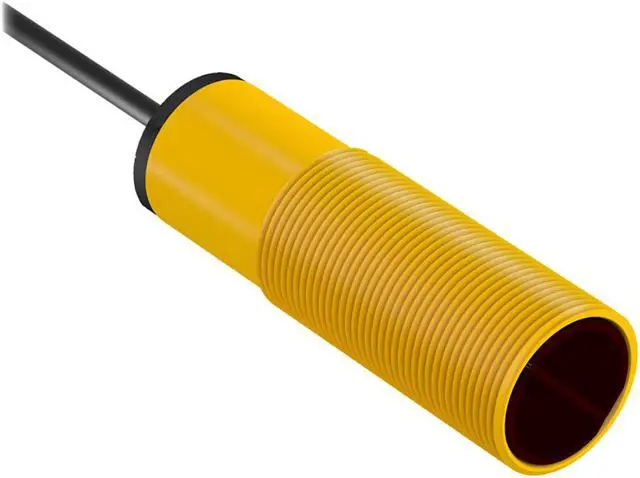

BANNER S18SN6D Epoxy Encapsulated Barrel-Mount Sensor New

EZ-BEAM S18 Series: Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary NPN
2 m (6.5 ft) Cable
Part Number: 29407
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Barrel
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 100
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -40
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 3
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 750
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67, IP69
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Washdown Rated Yes
Feature: Timing (Hold/Delay) No
Feature: Ecolab Certified Yes
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
Feature: Health/ Marginal Signal Output Yes
DeviceNet No
IO Link No
