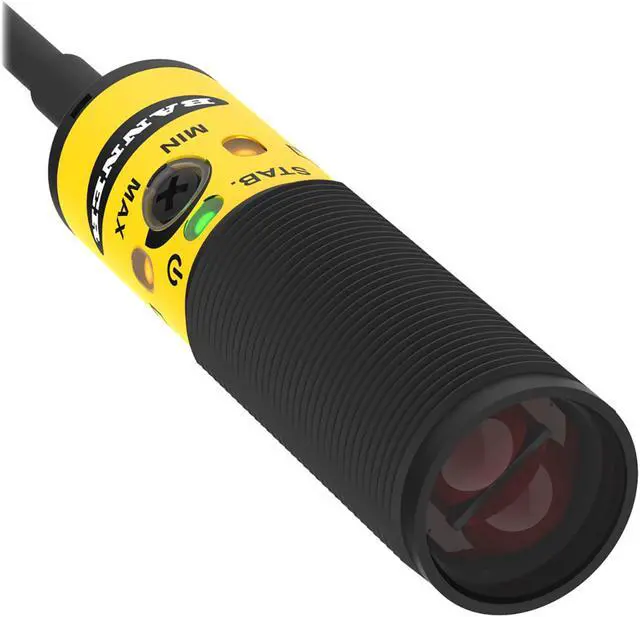

BANNER S18-2VNDS-2M Photoelectric Switch New

S18-2 Series: Diffuse Short Range Reflective
Range: 300 mm; Input: 10-30 V dc
Outputs: complementary NPN
Connection: 4-conductor 2 m PVC Cable
Part Number: 42170
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Barrel
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 300
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) 1.5
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 624
Delay at Power-up (ms) 100
Repeatability (µs) 100
Number of Pins 4
NEMA Rating N/A
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Ecolab Certified Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
