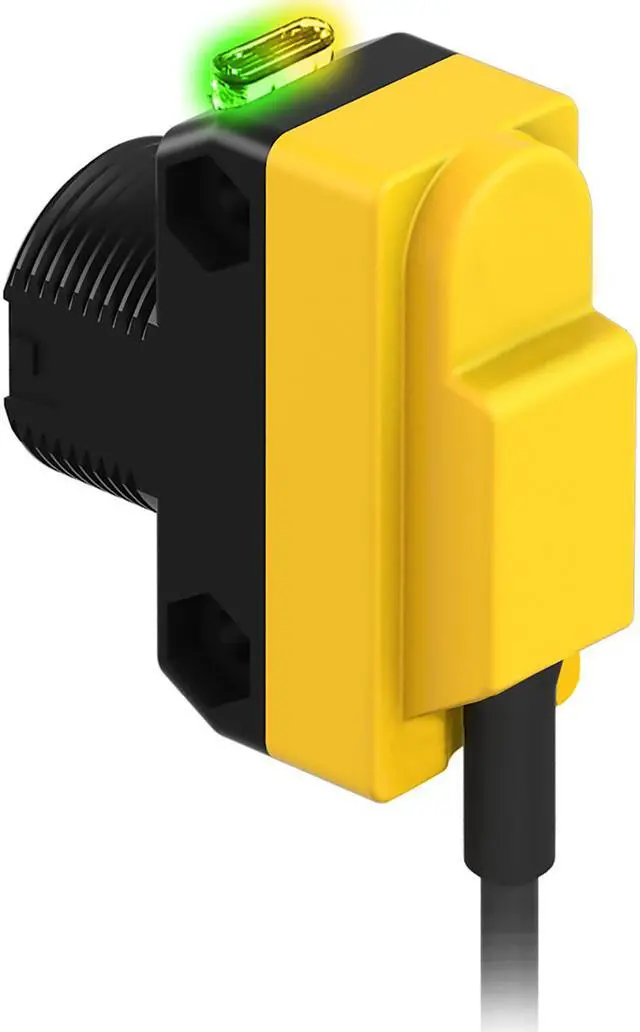

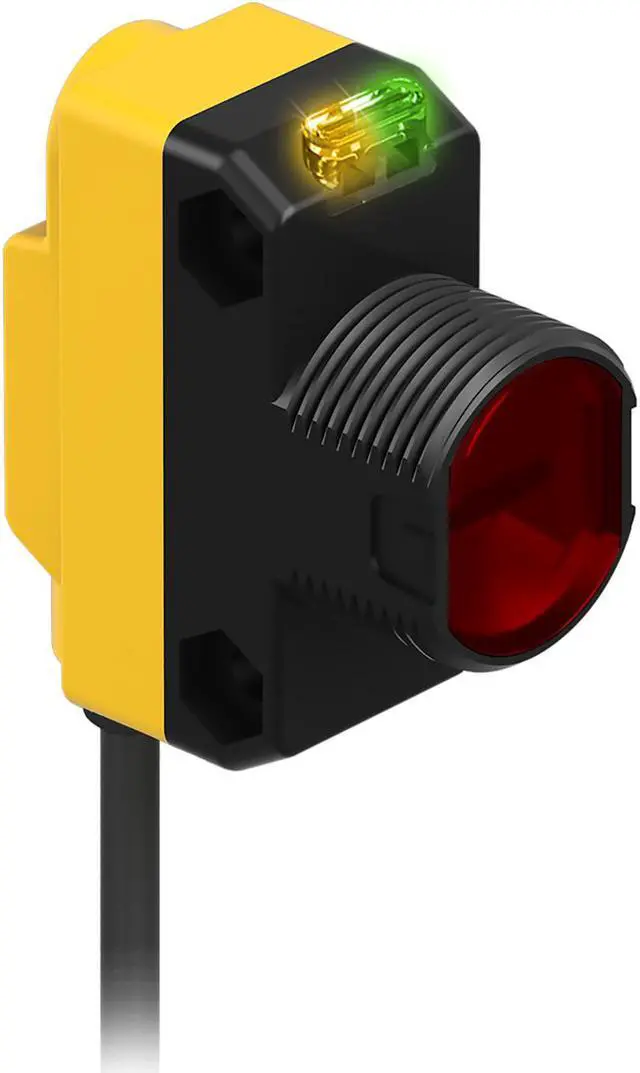

BANNER QS18VP6FF150Q5 All Purpose Photoelectric Sensor New

WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid State PNP
Euro 150 mm (6 in) Pigtail QD Pigtail
Part Number: 801160
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Small Visible Spot LED
Input/Output Discrete
Max Sensing Distance (mm) 150
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 70
Output response time (ms) 0.85
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 632
Delay at Power-up (ms) 100
Repeatability (µs) 160
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
