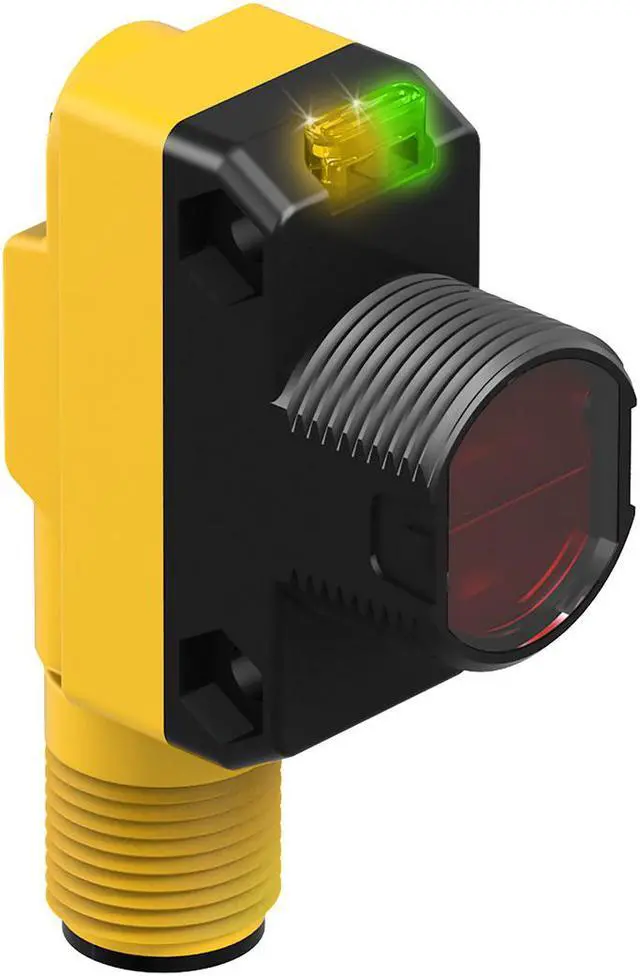

BANNER QS18VN6LV All Purpose Photoelectric Sensor New
- BANNER QS18VN6LV All Purpose Photoelectric Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30V dc
Output: Complementary Solid State NPN
2 m (6.5 ft) Cable
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Non-Polarized
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 6500
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 0.6
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 630
Delay at Power-up (ms) 100
Repeatability (µs) 150
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic

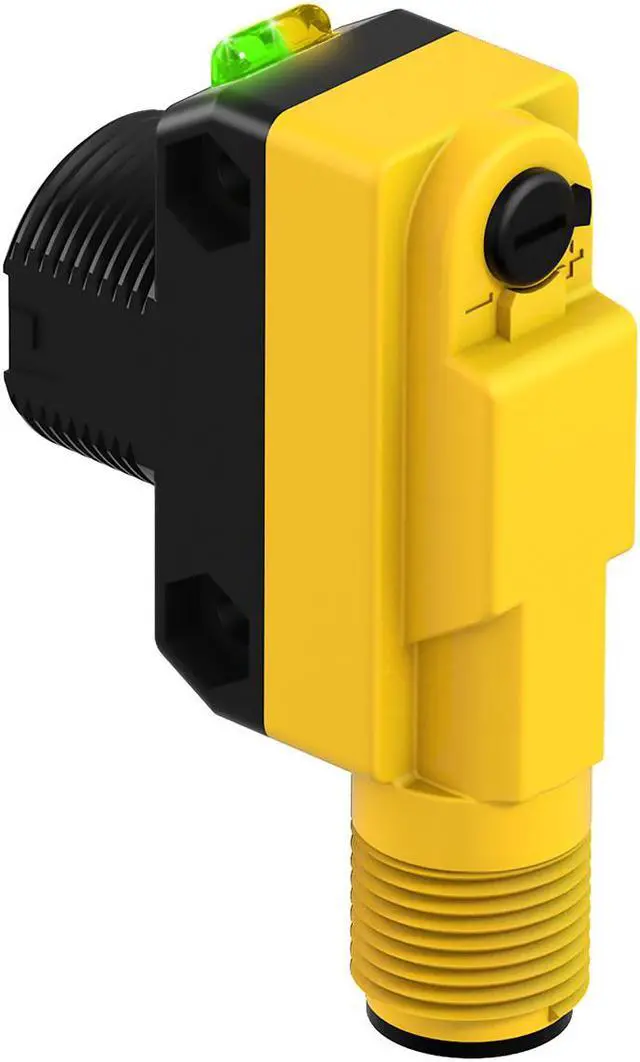

Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Range: 6.5 m; Input: 10-30V dc
Output: Complementary Solid State NPN
2 m (6.5 ft) Cable
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Non-Polarized
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 6500
Outputs NPN
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 0.6
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 630
Delay at Power-up (ms) 100
Repeatability (µs) 150
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
