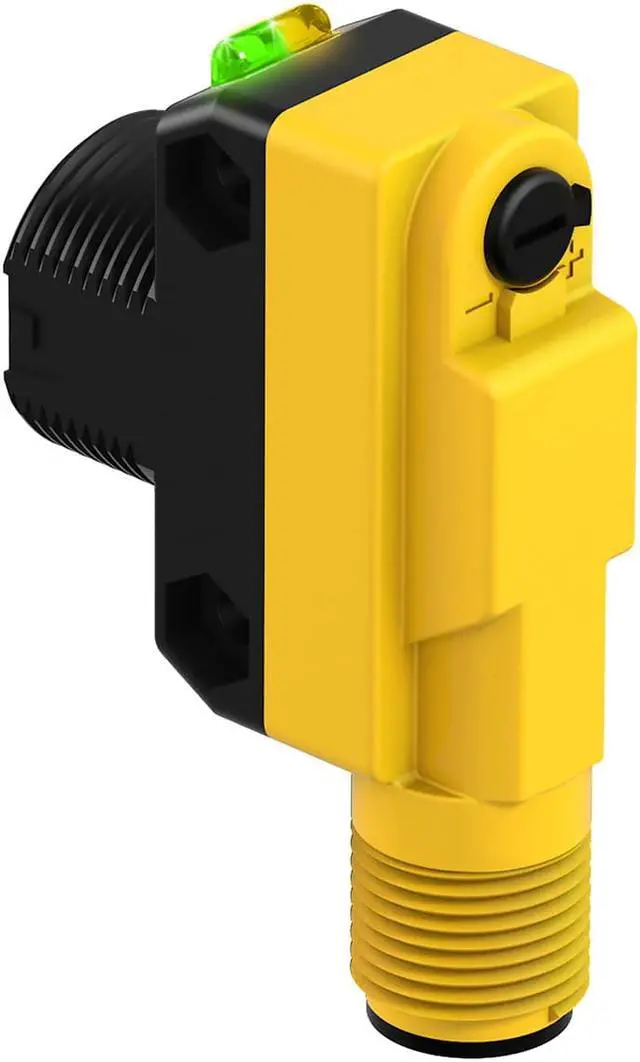

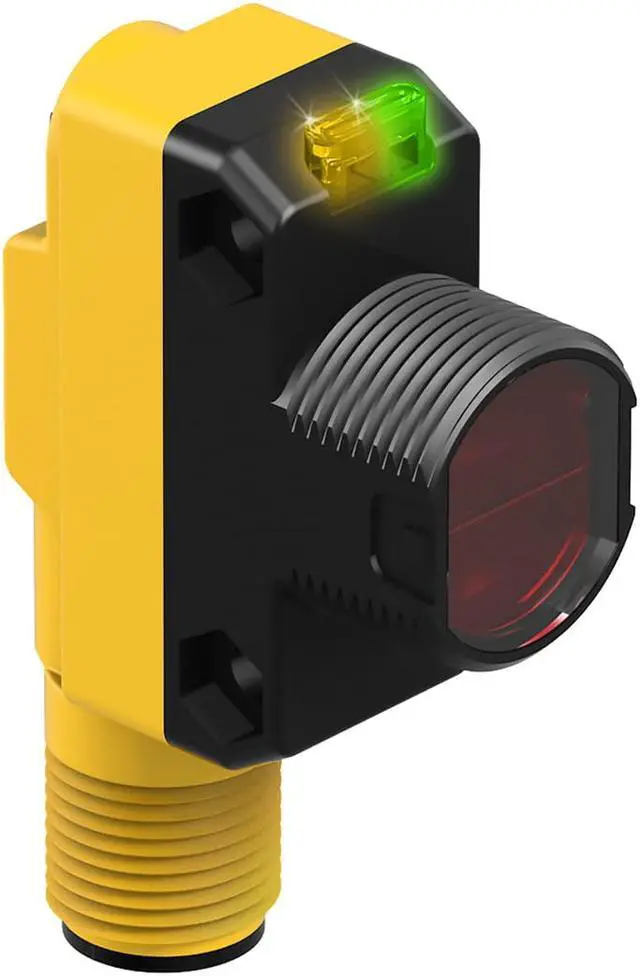

BANNER QS186LEQ8 All Purpose Photoelectric Sensor New

WORLD-BEAM QS18 Series: Laser Class 1
Range: 30 m; Input: 10-30V dc
Not applicable - No outputs
Euro-Style Quick-Disconnect Connector
Sensing Beam Visible Red Laser
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Laser Emitter
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Small Visible Spot Laser
Laser Classification Class 1
Max Sensing Distance (mm) 15000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -10
Operation N/A
Max Op. Temp. (°C) 50
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 250
Repeatability (µs) N/A
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material PMMA
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
