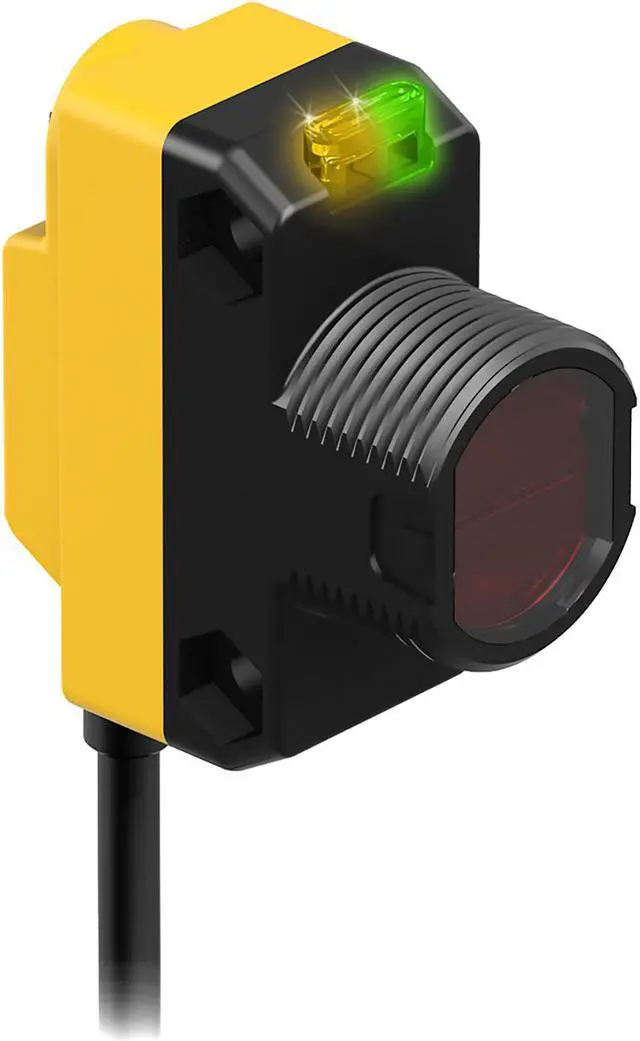

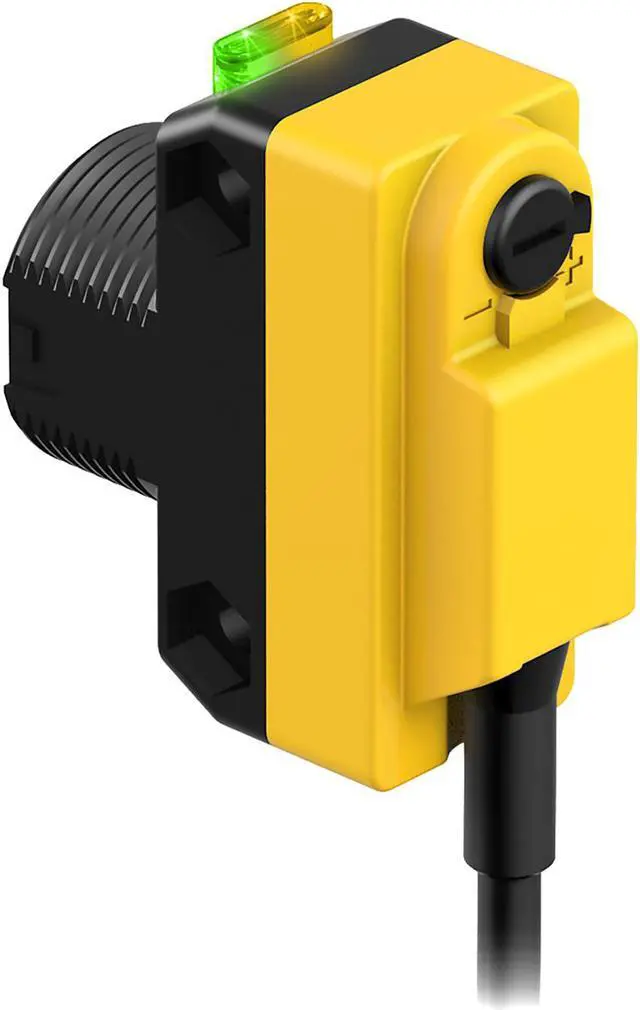

BANNER QS186LE All Purpose Photoelectric Sensor New

WORLD-BEAM QS18 Series: Laser Class 1
Range: 30 m; Input: 10-30V dc
Not applicable - No outputs
2 m (6.5 ft) Cable
Part Number: 70252
Sensing Beam Visible Red Laser
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Laser Emitter
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Small Visible Spot Laser
Laser Classification Class 1
Max Sensing Distance (mm) 15000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -10
Operation N/A
Max Op. Temp. (°C) 50
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 250
Repeatability (µs) N/A
Number of Pins 2
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material PMMA
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
