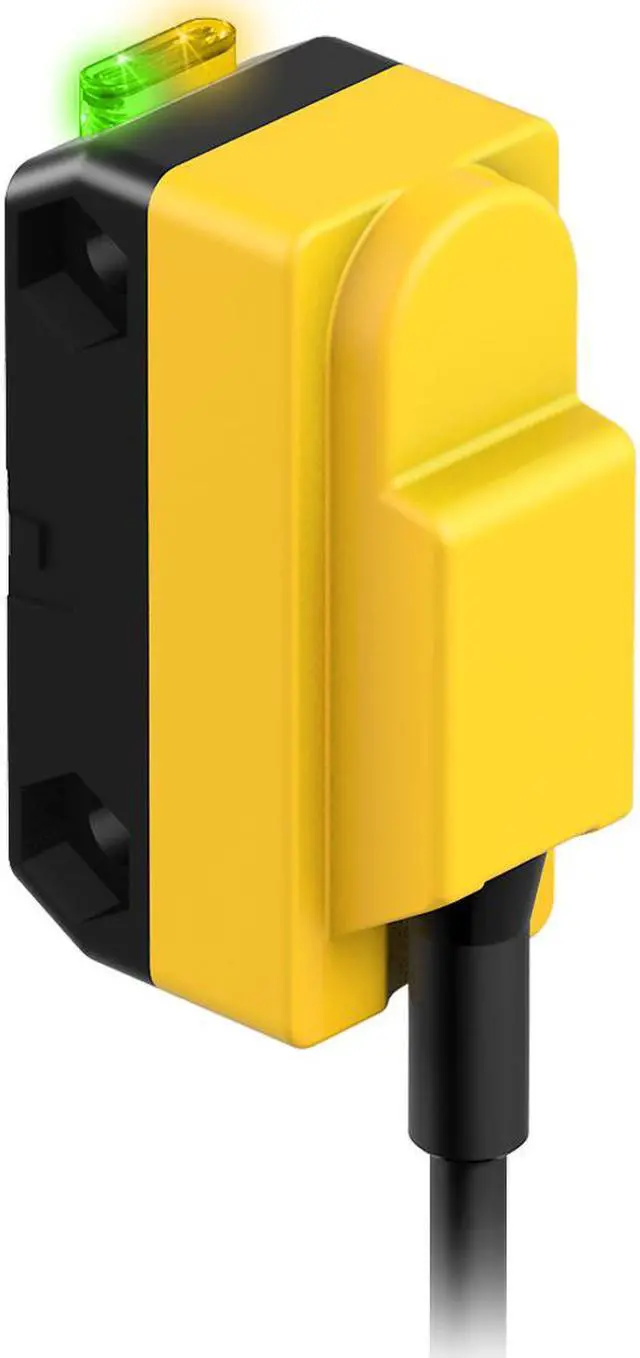

BANNER QS186EB All Purpose Photoelectric Sensor New
- BANNER QS186EB All Purpose Photoelectric Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM QS18 Series: Emitter (Flush Front)
Range: 3 m; Input: 10-30V dc
Output: Not applicable - No outputs
2 m (6.5 ft) Cable
Part Number: 61675
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Rectangular
Primary Housing Material ABS
Max Sensing Distance (mm) 3000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation N/A
Max Op. Temp. (°C) 70
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 100
Number of Pins 2
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Range: 3 m; Input: 10-30V dc
Output: Not applicable - No outputs
2 m (6.5 ft) Cable
Part Number: 61675
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Rectangular
Primary Housing Material ABS
Max Sensing Distance (mm) 3000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation N/A
Max Op. Temp. (°C) 70
Output response time (ms) N/A
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 100
Number of Pins 2
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
