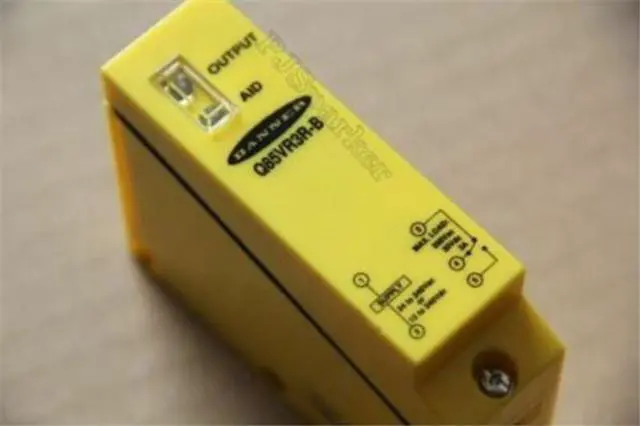

BANNER Q85VR3R-B Sensor New

Q85 Series: Opposed Mode Receiver W/O Timing
Range: 23 m; Input: 12-240V dc or 24-240V ac
Output:SPDT E/m Relay
Wiring Chamber
Part Number: 31653
Sensing Beam Visible Red LED
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output E/M Relay
Max Sensing Distance (mm) 23000
Outputs SPDT e/m Relay
Power Supply/Supply Voltage 12-240 V dc or 24-240 V ac
Connection Terminal
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -25
Max Op. Temp. (°C) 55
Output response time (ms) 20
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 680
Delay at Power-up (ms) N/A
Repeatability (µs) 1000
Number of Pins 2
NEMA Rating NEMA 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
