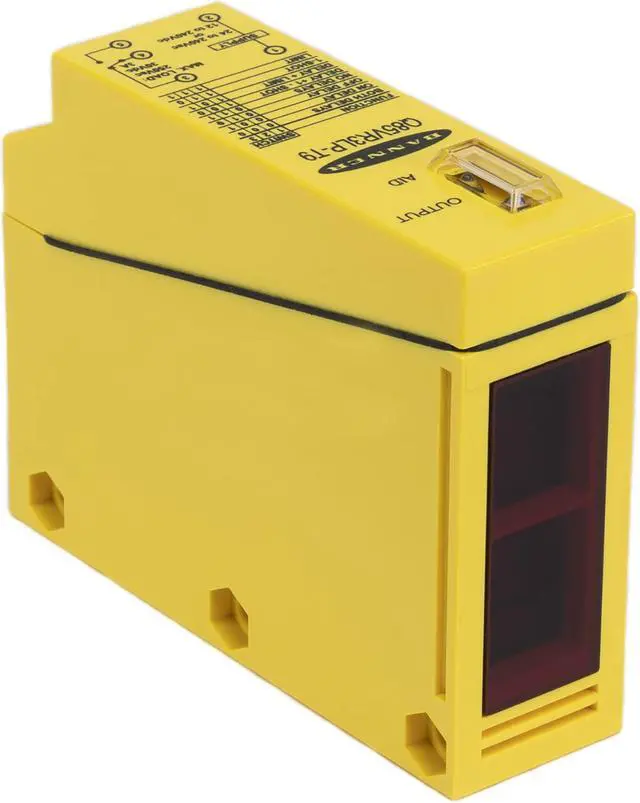

BANNER Q85VR3LP-B Photoelectric Switch Sensor New

Q85 Series:Polarized Retro W/O Timing
Range: 80 mm-4.6m; Input: 12-24V dc or 24-240V ac
Output: SPDT E/m Relay
Wiring Chamber
Part Number: 31214
Sensing Beam Visible Red LED
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output E/M Relay
Max Sensing Distance (mm) 4600
Outputs SPDT e/m Relay
Power Supply/Supply Voltage 12-240 V dc or 24-240 V ac
Connection Terminal
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -25
Max Op. Temp. (°C) 55
Output response time (ms) 20
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 680
Delay at Power-up (ms) N/A
Repeatability (µs) 1000
Number of Pins 5
NEMA Rating NEMA 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
