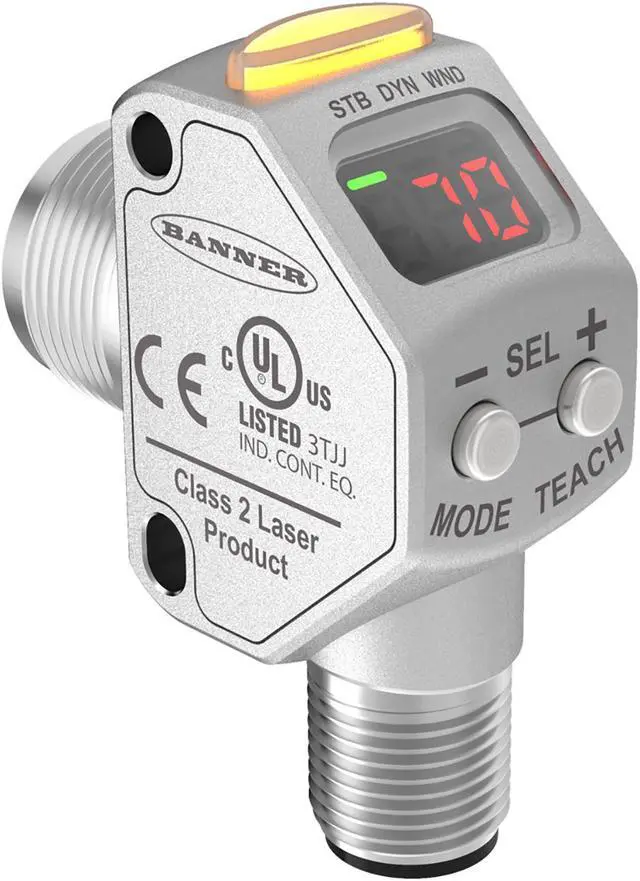

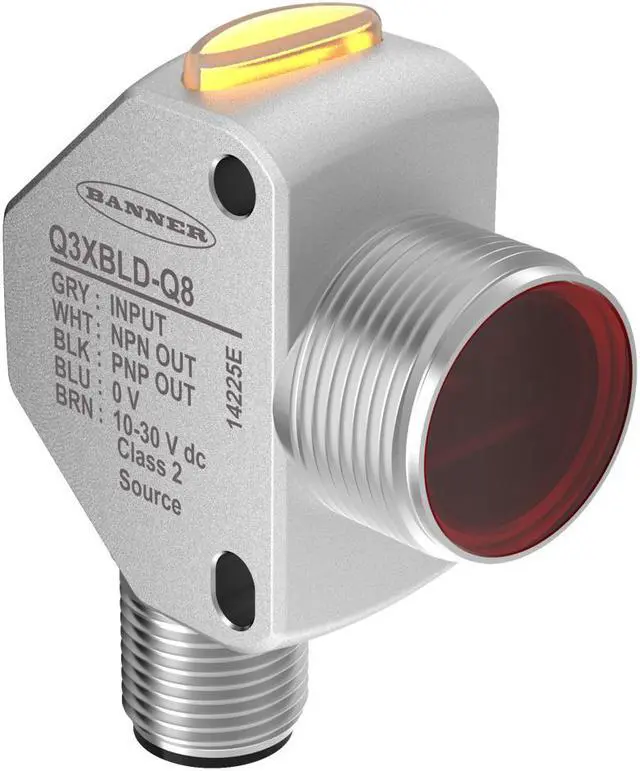

BANNER Q3XTBLD-Q8 Laser Contrast Sensor New

Q3XT Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Outputs: Bipolar: 1 NPN; 1 PNP
Connection: Euro M12 5-pin Integral Connector
Sensing Beam Visible Red Laser
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse/Background Suppression
Housing Style Rectangular w/M18 Mount
Primary Housing Material Nickel-Plated
Small Visible Spot Laser
Laser Classification Class 2
Input/Output Discrete
Max Sensing Distance (mm) 300
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -10
Operation Light/Dark Operate
Max Op. Temp. (°C) 50
Output response time (ms) 0.25
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 655
Delay at Power-up (ms) 1000
Repeatability (µs) 60
Number of Pins 5
NEMA Rating N/A
IP Rating IP67, IP68, IP69
Max Op. Relative Humidity [%] 95% @ 55°C
Lens Material Acrylic
Adjustments Teach Button
Barrel Diameter (mm) 18
Indicator LEDs
