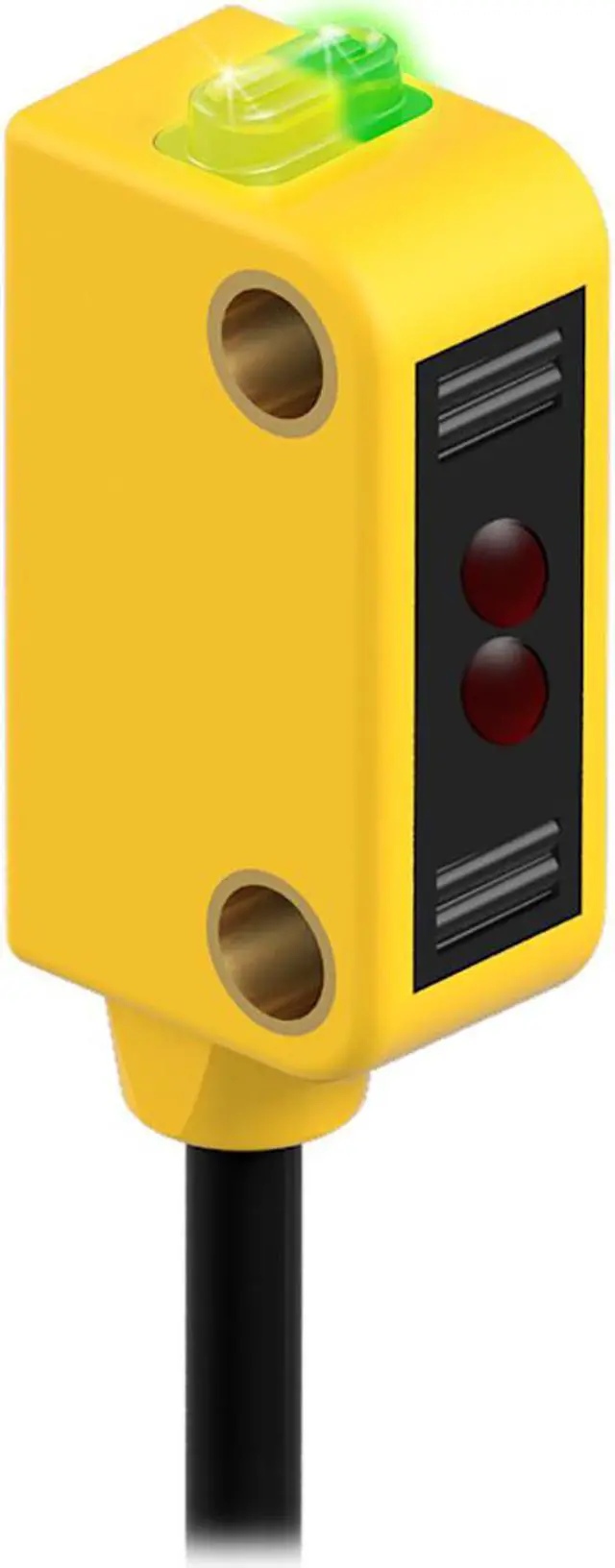

BANNER Q12AB6LP Miniature Self-Contained Sensor New
- BANNER Q12AB6LP Miniature Self-Contained Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM Q12 Series: Polarized Retro
Range: 1 m; Input: 10-30 V dc
Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable
Part Number: 72128
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 1000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation Light Operate
Max Op. Temp. (°C) 55
Output response time (ms) 0.7
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 120
Repeatability (µs) 175
Number of Pins 3
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Glass
Adjustments N/A
Range: 1 m; Input: 10-30 V dc
Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable
Part Number: 72128
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 1000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation Light Operate
Max Op. Temp. (°C) 55
Output response time (ms) 0.7
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 120
Repeatability (µs) 175
Number of Pins 3
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Glass
Adjustments N/A
