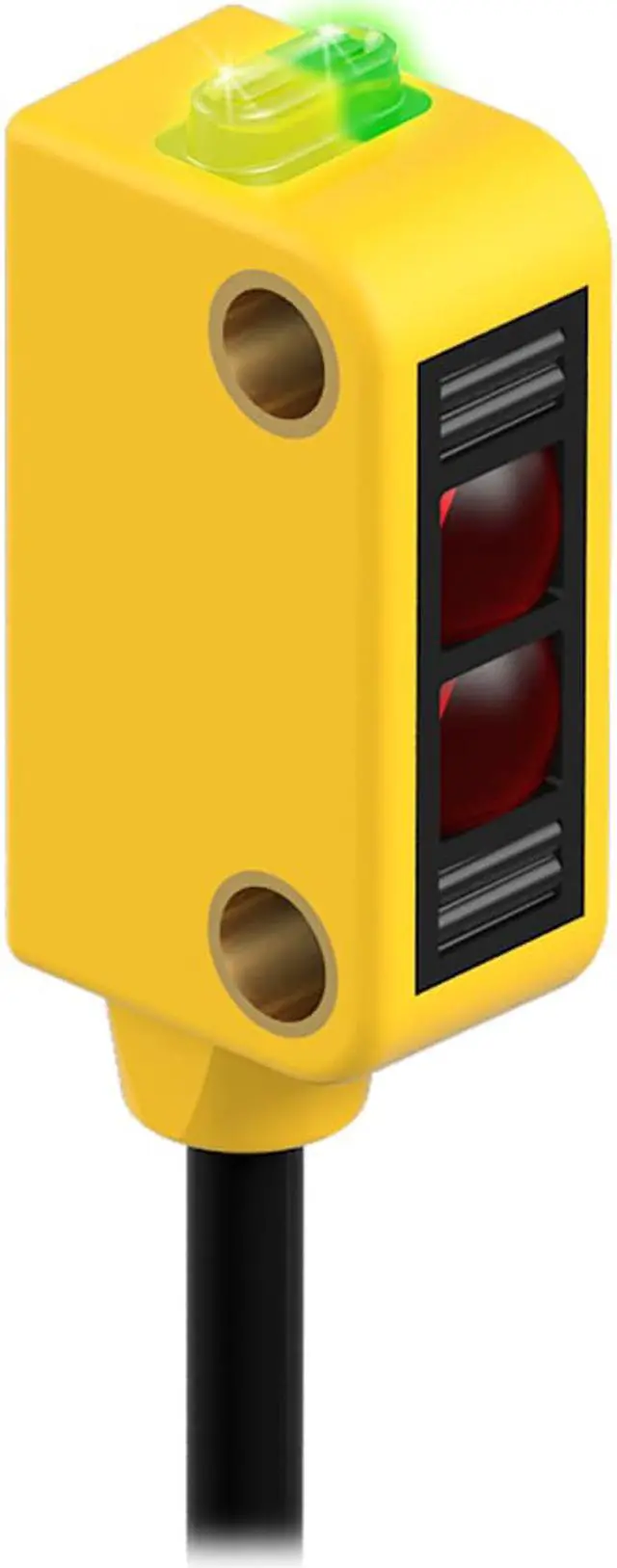

BANNER Q126EQ 72141 Miniature Self-Contained Sensor New
- BANNER Q126EQ 72141 Miniature Self-Contained Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM Q12 Series: Emitter
Range: 2 m; Input 10-30V dc
Output: Not applicable - No outputs
Pico (M8) Threaded Pigtail QD
Part Number: 72141
Sensing Beam Visible Red LED
Cable Length (m) 0.15
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Rectangular
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 2000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M8 (Pico)
Min Op. Temp. (°C) -20
Operation N/A
Max Op. Temp. (°C) 55
Output response time (ms) 1.3 ON/0.7 OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 120
Repeatability (µs) 175
Number of Pins 4
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
Range: 2 m; Input 10-30V dc
Output: Not applicable - No outputs
Pico (M8) Threaded Pigtail QD
Part Number: 72141
Sensing Beam Visible Red LED
Cable Length (m) 0.15
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Emitter
Housing Style Rectangular
Primary Housing Material Thermoplastic
Max Sensing Distance (mm) 2000
Outputs N/A
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M8 (Pico)
Min Op. Temp. (°C) -20
Operation N/A
Max Op. Temp. (°C) 55
Output response time (ms) 1.3 ON/0.7 OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 640
Delay at Power-up (ms) 120
Repeatability (µs) 175
Number of Pins 4
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Polycarbonate
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Emitter
