BANNER PIT26U Sensor New
- BANNER PIT26U Sensor New
+
+
Overview
Specs
Reviews

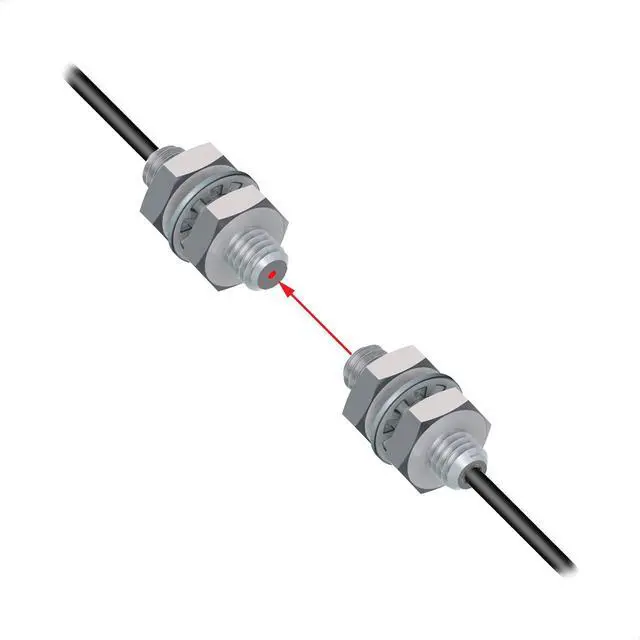

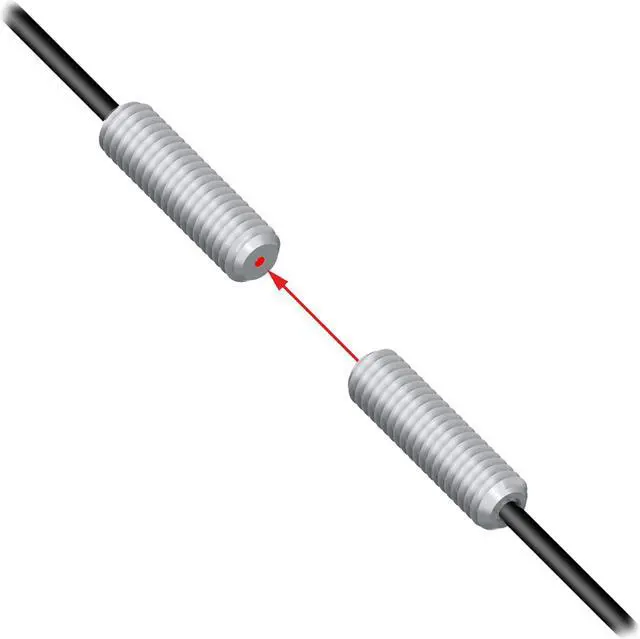

Plastic Fiber, Opposed Mode
Core Dia.: 0.5 mm; Fiber Length 2 m
Thread
Free cut
Part Number: 26079
Housing Style Round
Quantity Included 2
Fiber Optic Type Plastic
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Reflective
Beam Exit In-line
Sensing End Material (Specific) Nickel-Plated Brass
Fiber Sheathing Material (Jacket) Polyethylene
Fiber Sensing End Tip Thread
Fiber Length (m) 2
Fiber Sensing End Size M3
Sensing End Segment 1 Thread
Retractile No
Flex Relief No
Core Diameter (mm) 0.5
Minimum Bend Radius (mm) 10
Termination Free Cut
Max Temp ( °C) 70
Minimum Repeat Bending Endurance 5000
Integrated Lens No
Feature: Chemical Resistant No
Feature: Extended Range No
Feature: Small Object Detection No
Application: Liquid Level No
Application: Vacuum Feed Through None
Termination Type Plastic Fiber Sensors
Tariff Fiber Meters (fbm) 4
Max Distance: DF-G3 (mm) No Data
Measured Max Distance (mm) No Data
Fiber Sensing End Size - Mounting Area M3
Max Distance: DF-G2 (mm) No Data
Max Distance: DF-G1 (mm) No Data
