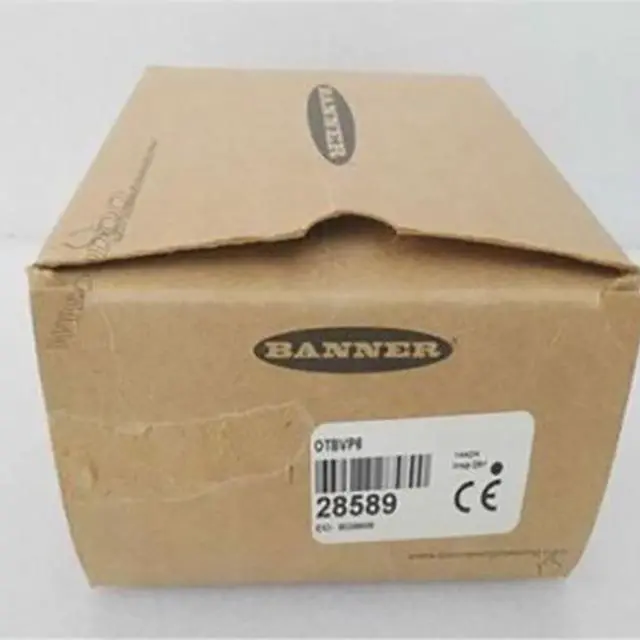

BANNER OTBVP6 Sensor New

OTB Series: Momentary Action Touch Button w/Black F.C.
Input: 10-30 V dc; Upper Housing: Polysulfone
Output: Complementary PNP
Euro-Style Quick-Disconnect
Part Number: 46169
Cable Length (m) 9
Sensing Mode (General) Single Point Optical
Housing Style Base Mount - Saddle
Primary Housing Material Thermoplastic Polysulfone
Actuation Yes
Activation Function Optical
Mounting Thread M30 x 1.5
Product Size (mm) Other
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Number of Input Pins/Conductors 4
Operation Normally Open/Normally Closed
Supply Voltage 10-30 V dc
Output Type PNP
Input Type PNP
Max Input Response Time (ms) 100
Max Output Response Time (ms) 100
Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
Number of Beams 1
Environmental Rating IP66
NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
Max Op. Temperature (°C) 50
Min Op. Temperature (°C) -20
Field Cover Color Black
Primary Housing Color Black
Button Operation Momentary
Secondary Material Thermoplastic
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
IO Link No
Modbus RTU No
Wireless No
Pro-Editor Compatible No
