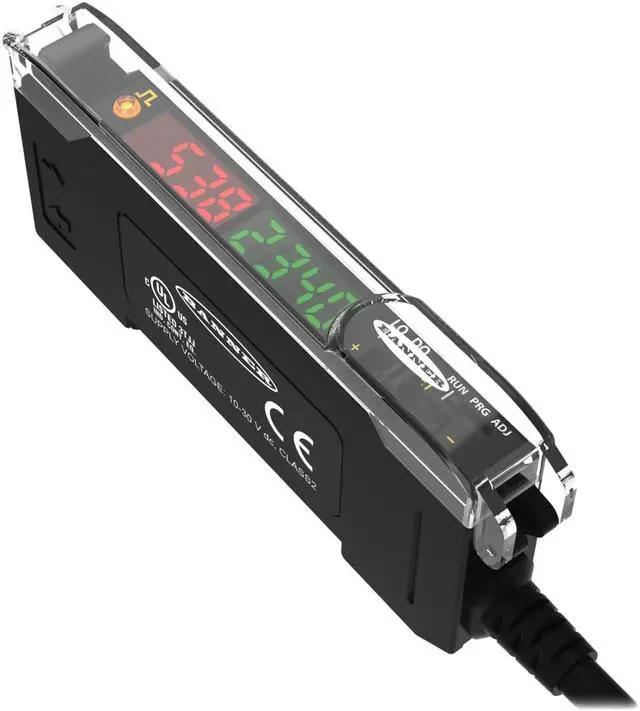

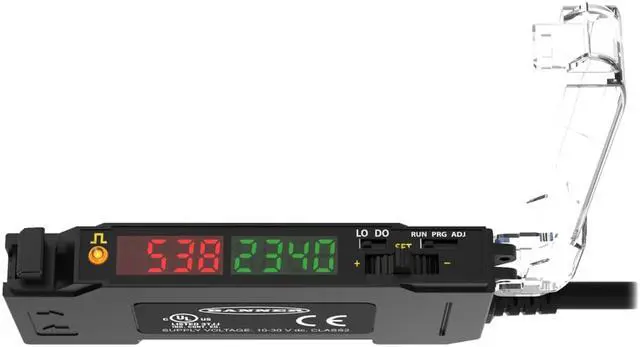

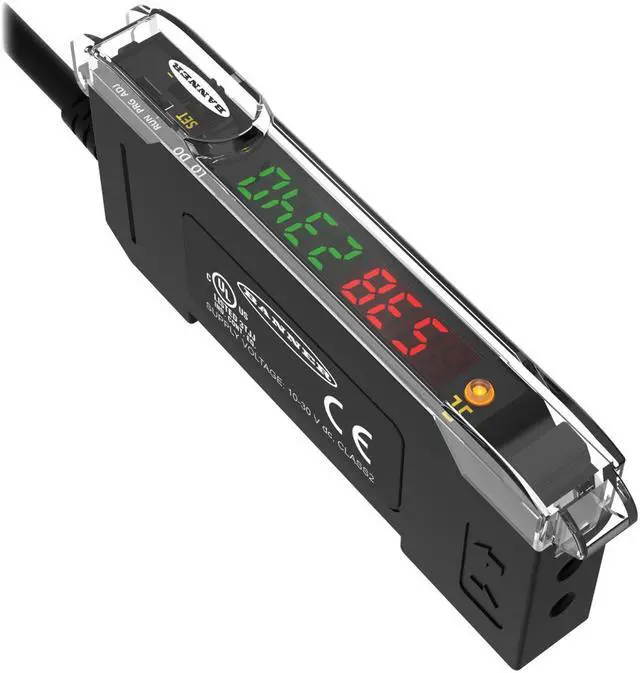

BANNER DF-G1-NS-2M General Purpose Fiber Optic Amplifier New
- BANNER DF-G1-NS-2M General Purpose Fiber Optic Amplifier New
+
+
Overview
Specs
Reviews
DF-G1 Dual Display Fiber Amplifier
Range: Depends on fiber; Input 10-30 V dc
Output: 1 NPN
2 m (6.5 ft.) Cable
Part Number: 19350
Cable Length (m) 2
Housing Style DIN Rail
Primary Housing Material Thermoplastic
Input/Output Discrete
Color LED - Amplifiers Red
Fiber Type Plastic and Glass
Connection Cable
Output NPN
Quick Disconnect Type No QD
Output Type (Specific) Single Discrete
Repeatability (µs) 66 to 100
Number of Pins 4
IP Rating IP50
NEMA Rating NEMA 1
Max Op. Temperature (°C) 55
Min Op. Temperature (°C) -10
Max Op. Relative Humidity (%) 90% @ 60°C
Special Feature: Remote Teach Yes
Crosstalk Avoidance Yes
Intrinsically Safe No
Adjustments Teach Button
Power Supply/Supply Voltage 10-30 V dc
Delay at Power-up (ms) 500
Indicator Display Type Dual Digital Displays
Minimum response time (ms) .2
Special Feature: Bussable Power No
Feature: Timing (Hold/Delay) Yes
Feature: Hazardous Area No
Feature: Audible No
IO Link No
Housing Material Thermoplastic
Range: Depends on fiber; Input 10-30 V dc
Output: 1 NPN
2 m (6.5 ft.) Cable
Part Number: 19350
Cable Length (m) 2
Housing Style DIN Rail
Primary Housing Material Thermoplastic
Input/Output Discrete
Color LED - Amplifiers Red
Fiber Type Plastic and Glass
Connection Cable
Output NPN
Quick Disconnect Type No QD
Output Type (Specific) Single Discrete
Repeatability (µs) 66 to 100
Number of Pins 4
IP Rating IP50
NEMA Rating NEMA 1
Max Op. Temperature (°C) 55
Min Op. Temperature (°C) -10
Max Op. Relative Humidity (%) 90% @ 60°C
Special Feature: Remote Teach Yes
Crosstalk Avoidance Yes
Intrinsically Safe No
Adjustments Teach Button
Power Supply/Supply Voltage 10-30 V dc
Delay at Power-up (ms) 500
Indicator Display Type Dual Digital Displays
Minimum response time (ms) .2
Special Feature: Bussable Power No
Feature: Timing (Hold/Delay) Yes
Feature: Hazardous Area No
Feature: Audible No
IO Link No
Housing Material Thermoplastic
