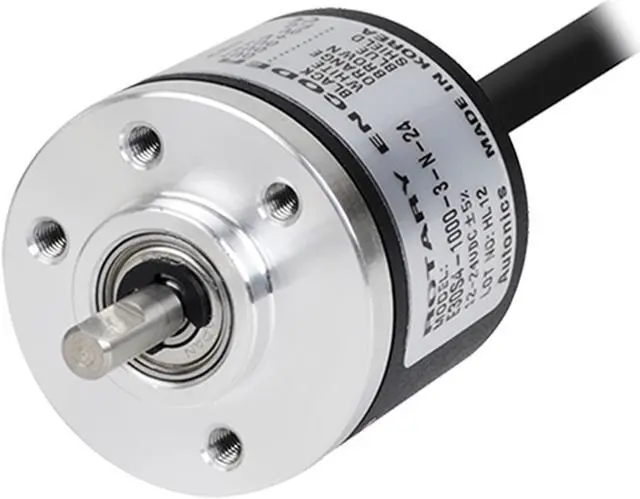

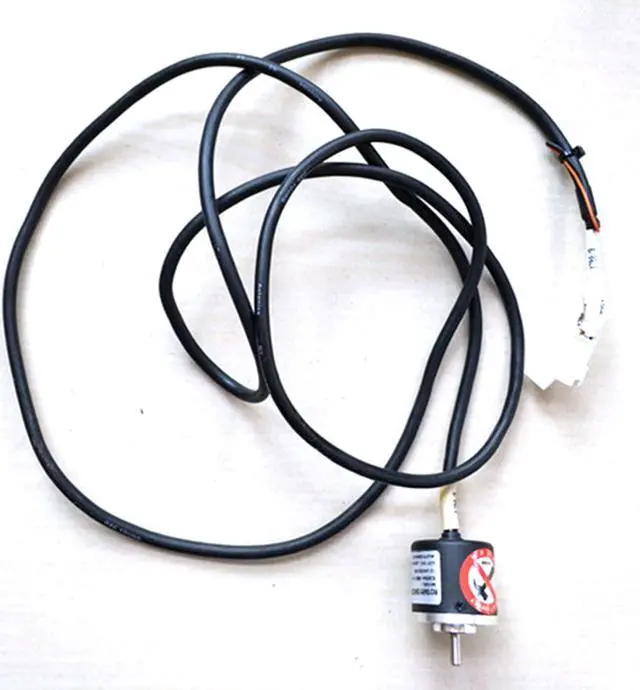

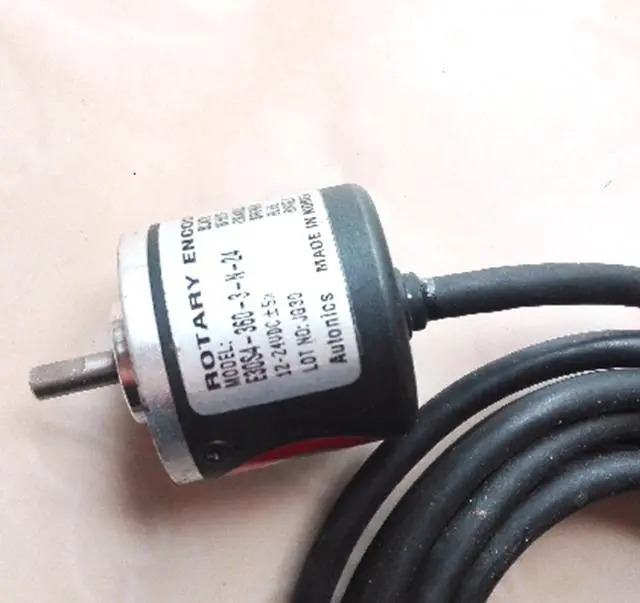

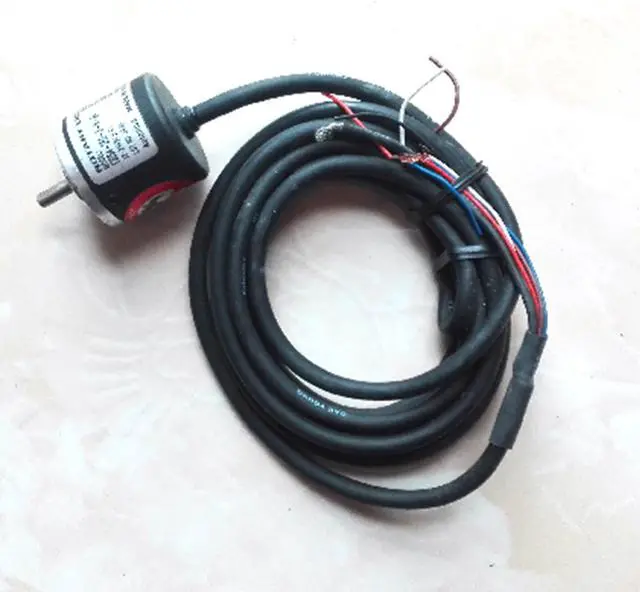

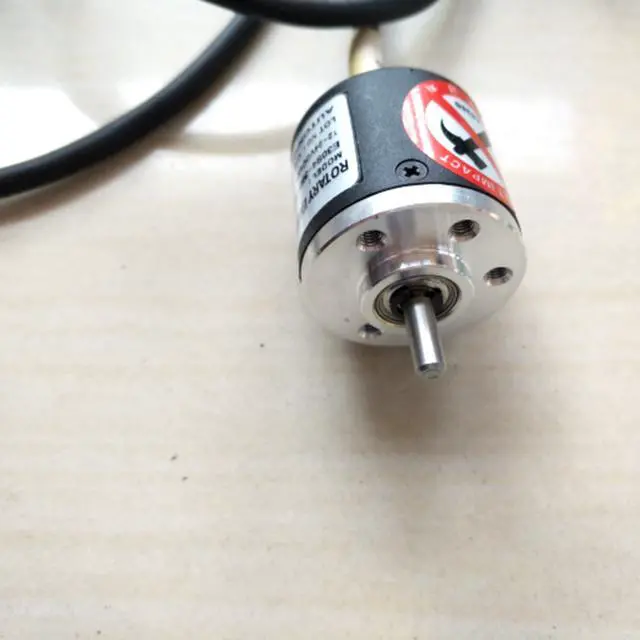

Autonics E30S4-360-3-N-24 Rotary Encoders NPN New 1PCS

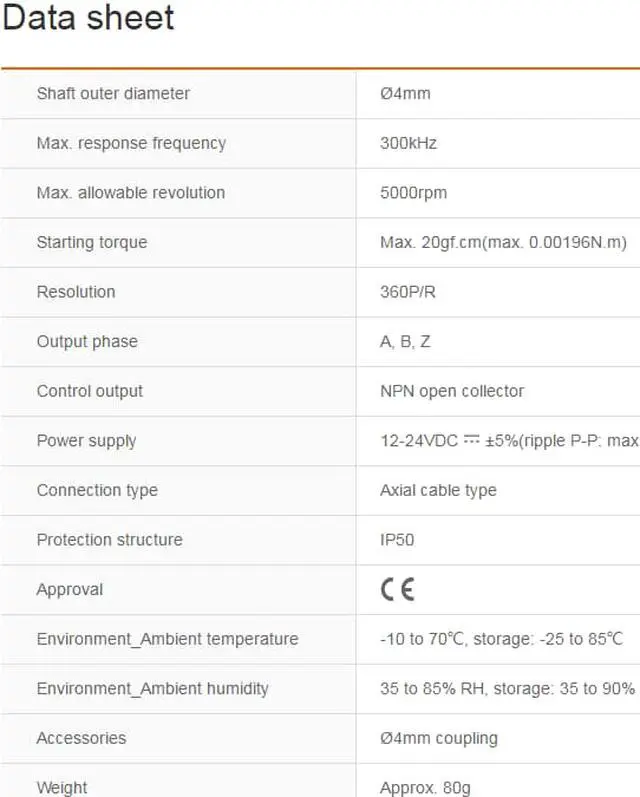

Shaft outer diameter : Ø4mm
Max. response frequency : 300kHz
Max. allowable revolution : 5000rpm
Starting torque : Max. 20gf.cm(max. 0.00196N.m)
Resolution : 360P/R
Control output : NPN open collector
Power supply : 12-24VDC ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50
Shaft outer diameter : Ø4mm
Max. response frequency : 300kHz
Max. allowable revolution : 5000rpm
Starting torque : Max. 20gf.cm(max. 0.00196N.m)
Resolution : 360P/R
Control output : NPN open collector
Power supply : 12-24VDC ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50
