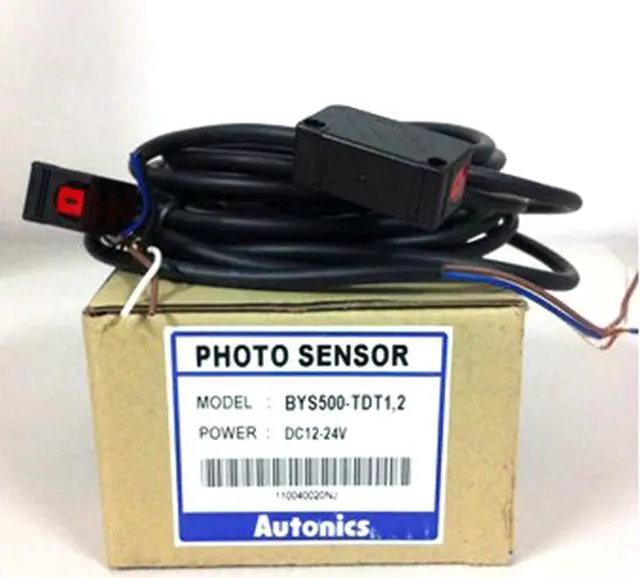

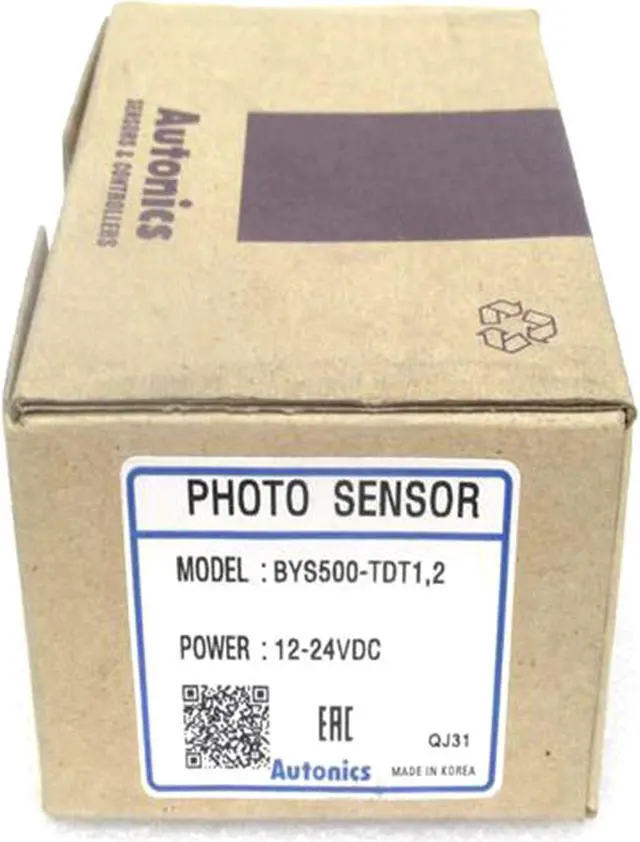

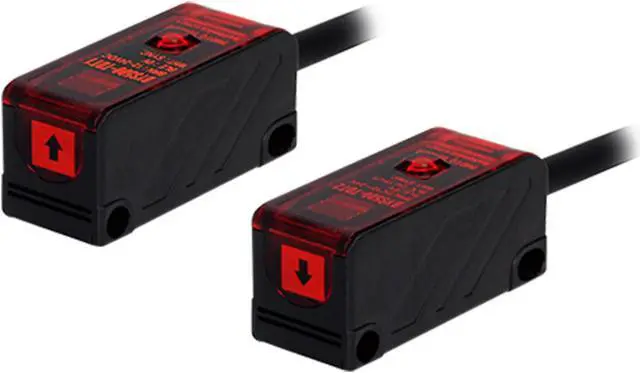

Autonics BYS500-TDT1,2 Photoelectric Sensors Compact Type NPN New 1PCS
- Autonics BYS500-TDT1,2 Photoelectric Sensors Compact Type NPN New 1PCS
+
+
Overview
Specs
Reviews
Autonics BYS500-TDT1,2 Photoelectric Sensors Compact Type NPN New 1PCS

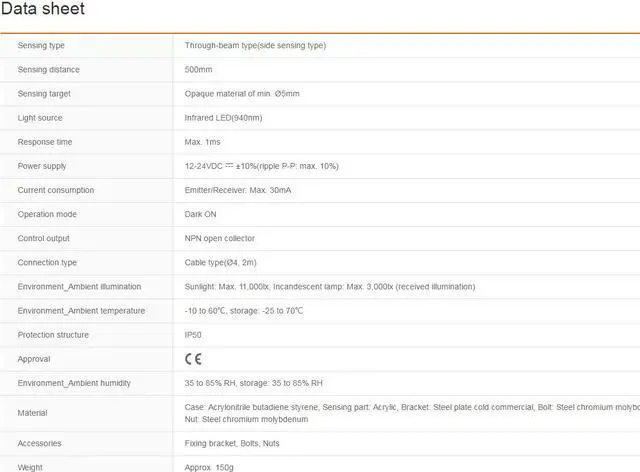

Sensing type : Through-beam type(side sensing type)
Sensing distance : 500mm
Sensing target : Opaque material of min. Ø5mm
Light source : Infrared LED(940nm)
Response time : Max. 1ms
Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
Operation mode : Dark ON
Control output : NPN open collector
Sensing type : Through-beam type(side sensing type)
Sensing distance : 500mm
Sensing target : Opaque material of min. Ø5mm
Light source : Infrared LED(940nm)
Response time : Max. 1ms
Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
Operation mode : Dark ON
Control output : NPN open collector
